Part number
LV847895SP
Model no
MCH
$497.78 On request Dispatch — · From TürkiyeGet a Quote

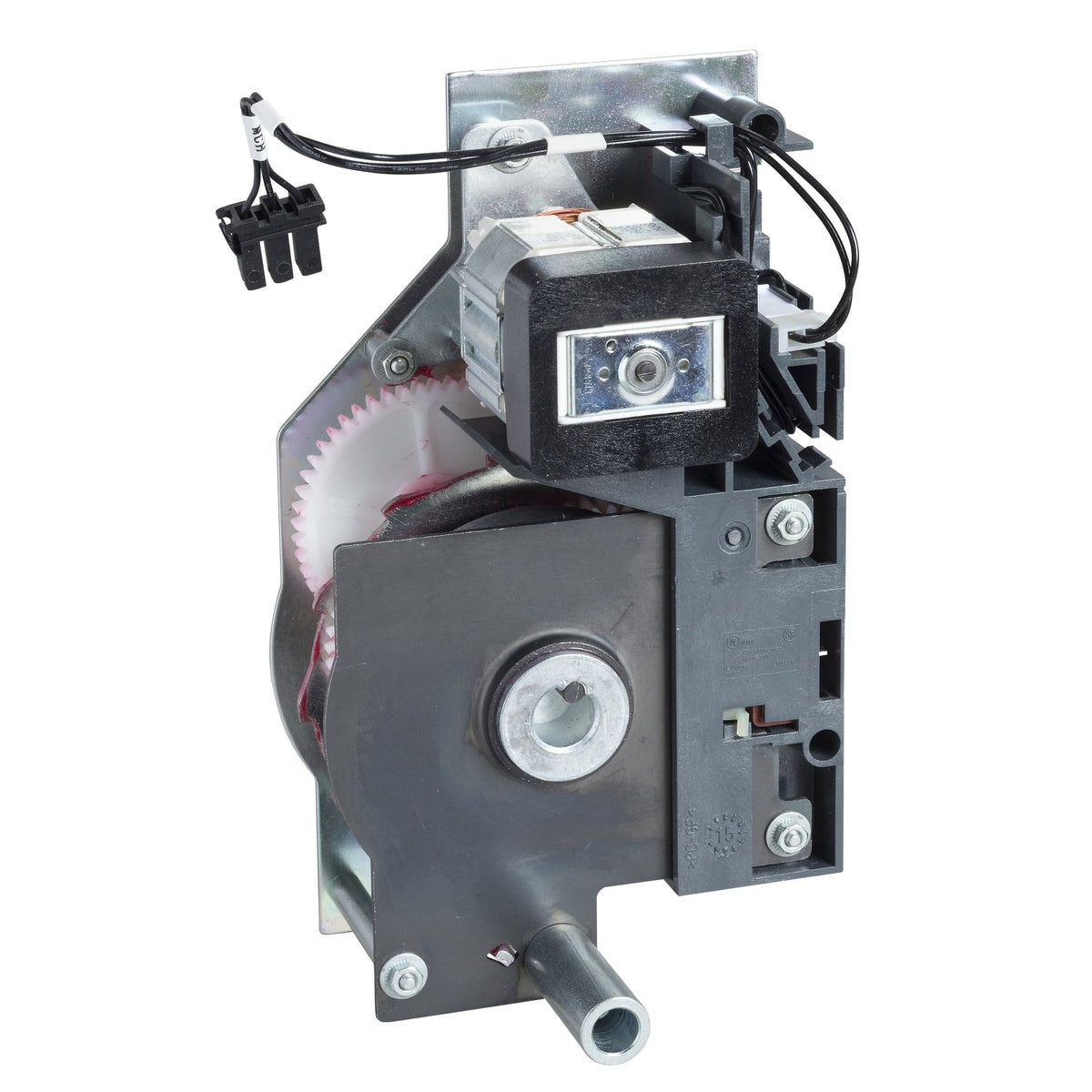

Schneider Electric LV847895SP MasterPact MTZ2/3 MCH Motor Mechanism 250-277V Air Circuit Breaker Accessory

MCH motor mechanism spare part, MasterPact MTZ2/MTZ3, 250-277 V AC remote operation.

Rated operational voltage
250–277 V AC
EAN
3606481187147
Description

About the MCH

The Schneider Electric LV847895SP is an MCH electric motor mechanism supplied as a field-replacement spare part for MasterPact MTZ2 and MTZ3 air circuit breakers, built for remote operation on a 250-277 V AC 50/60 Hz control supply. It charges the breaker's closing springs in 4 s or less. It mounts on fixed MasterPact MTZ2/MTZ3 breakers.

Selection Notes

The LV847895SP covers the top end of the MTZ2/MTZ3 MCH control-voltage range at 250-277 V AC, above the 100-130 V and 200-240 V spares in the same family. Confirm the panel's control transformer tap matches this band before ordering. As with the other MTZ2/MTZ3 motor mechanisms, charging takes up to 4 s and the unit includes a 240 V, 10 A limit switch contact for remote charged-state feedback. Replacing it restores full remote-close capability after a mechanism failure. The limit switch contact remains rated 240 V, 10 A across all three voltage variants.

Specification

Full specification

29 values · Last verified 30 Oct 2026

Main 5

Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Device Application Control
Range compatibility Masterpact MasterPact MTZ2, Masterpact MasterPact MTZ3

Complementary 8

Control Type Standard
[Uc] control circuit voltage 250...277 V AC 50/60 Hz
Threshold tripping voltage 0.85...1.1 Un
Maximum power consumption in VA 180 VA
Overcurrent protection 2...3 x In 0.1 s
Maximum charging time 4 s
Maximum operating frequency <= 3 cycles per minute
provided contact Limit switch contact 240 V 10 A

Environment 2

Provided equipment 1 instruction sheet
Offer type Spare part
Show all 29 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LV847895SP
Type designation MCH
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481187147

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 2.021 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV847895SP

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the MCH

Which supply voltage is MCH rated for?

The rated operational voltage of MCH is 250–277 V AC.

What is the HS code of MCH for customs?

The tariff (HS) code on file for MCH is 853890.

What is the EAN of MCH?

The EAN (GTIN) of MCH is 3606481187147.

Where does MCH ship from, and how fast?

MCH ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
