Schneider Electric LV847894SP MasterPact MTZ2/3 MCH Motor Mechanism 200-240V Air Circuit Breaker Accessory

% $-487.05
Schneider Electric LV847894SP MCH motor mechanism spare – MTZ2/MTZ3 200-240 V AC
Schneider Electric LV847894SP MCH motor mechanism spare – MTZ2/MTZ3 200-240 V AC

Schneider Electric LV847894SP MasterPact MTZ2/3 MCH Motor Mechanism 200-240V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847894SP
Catalog No: LV847894SP
Tariff Code (HS): 853890
Rated Voltage: 200-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$487.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

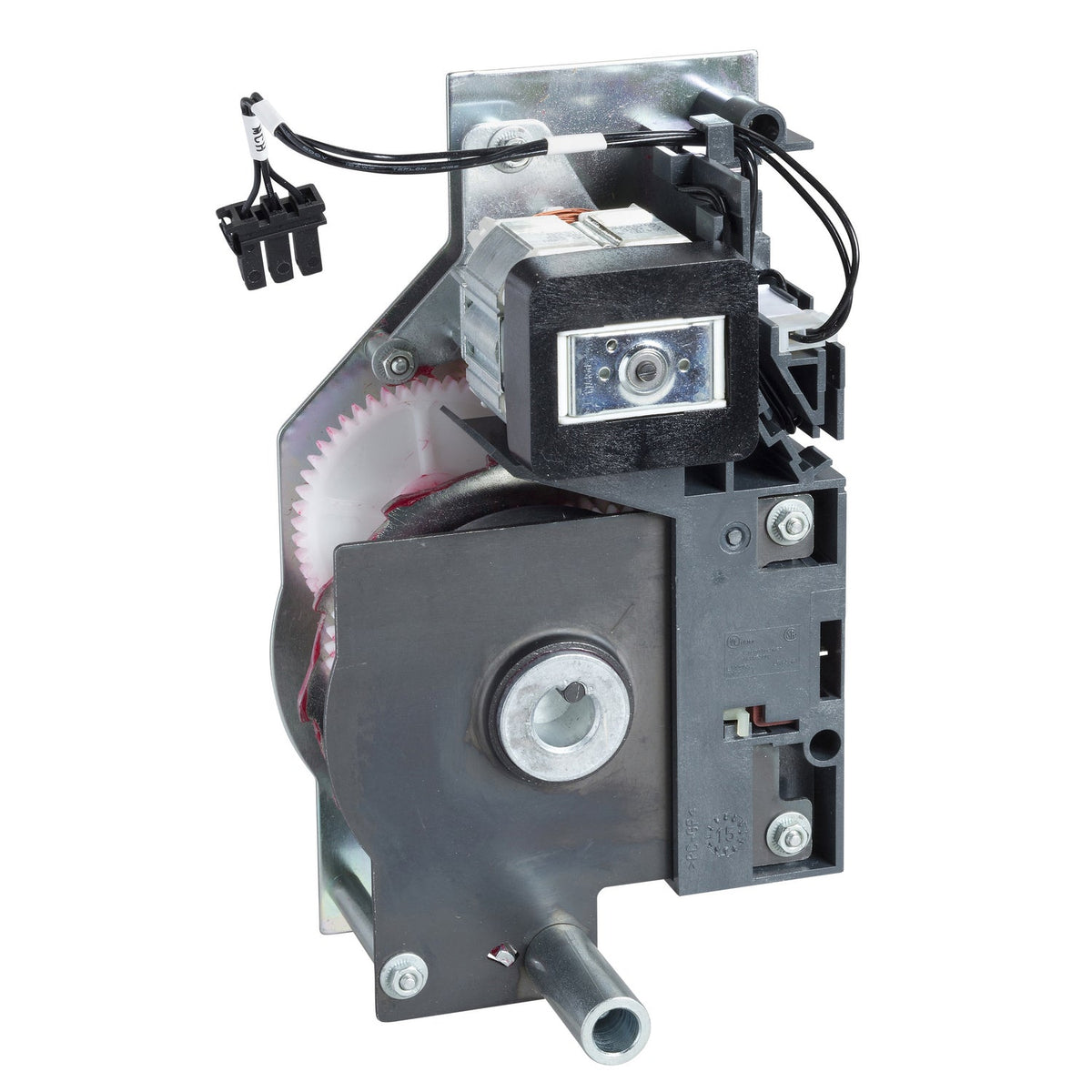

The Schneider Electric LV847894SP is an MCH electric motor mechanism supplied as a field-replacement spare part for MasterPact MTZ2 and MTZ3 air circuit breakers, built for remote operation on a 200-240 V AC 50/60 Hz control supply. It charges the breaker's closing springs in 4 s or less. It mounts on fixed MasterPact MTZ2/MTZ3 breakers.

Technical Specifications

Reference LV847894SP
Brand Schneider Electric
Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Range compatibility MasterPact MTZ2, MTZ3
Control Type / Mounting Mode Standard / Fixed
[Uc] control circuit voltage 200-240 V AC 50/60 Hz
Threshold tripping voltage / Overcurrent protection 0.85-1.1 Un / 2-3 x In, 0.1 s
Maximum power consumption 180 VA
Maximum charging time / operating frequency 4 s / <= 3 cycles per minute
Provided contact Limit switch contact, 240 V, 10 A
Offer type Spare part
Number of units in package 6

Selection Notes

Choose the LV847894SP over the 100-130 V or 250-277 V spares when the MTZ2/MTZ3 breaker's control circuit is 200-240 V AC; fitting the wrong voltage spare will not charge the mechanism correctly. Charging time is up to 4 s, matching the rest of the MTZ2/MTZ3 MCH family. The limit switch contact (240 V, 10 A) can be wired back to a panel indicator to confirm the springs are charged before a remote close command is issued. Replacing it restores full remote-close capability after a mechanism failure.

Technical Details

Short Description
MCH motor mechanism spare part, MasterPact MTZ2/MTZ3, 200-240 V AC remote operation.
Rated Voltage (VAC)
200-240 V AC
Mounting Type
Fixed
Catalog No
LV847894SP
Delivery Date (Days)
30 days
Model Number
MCH
Tariff Code
853890
