Schneider Electric LV847893SP MasterPact MTZ2/3 MCH Motor Mechanism 100-130V Air Circuit Breaker Accessory

% $-487.05
Schneider Electric LV847893SP MCH motor mechanism spare – MTZ2/MTZ3 100-130 V AC
Schneider Electric LV847893SP MCH motor mechanism spare – MTZ2/MTZ3 100-130 V AC

Schneider Electric LV847893SP MasterPact MTZ2/3 MCH Motor Mechanism 100-130V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847893SP
Catalog No: LV847893SP
Tariff Code (HS): 853890
Rated Voltage: 100-130 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$487.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

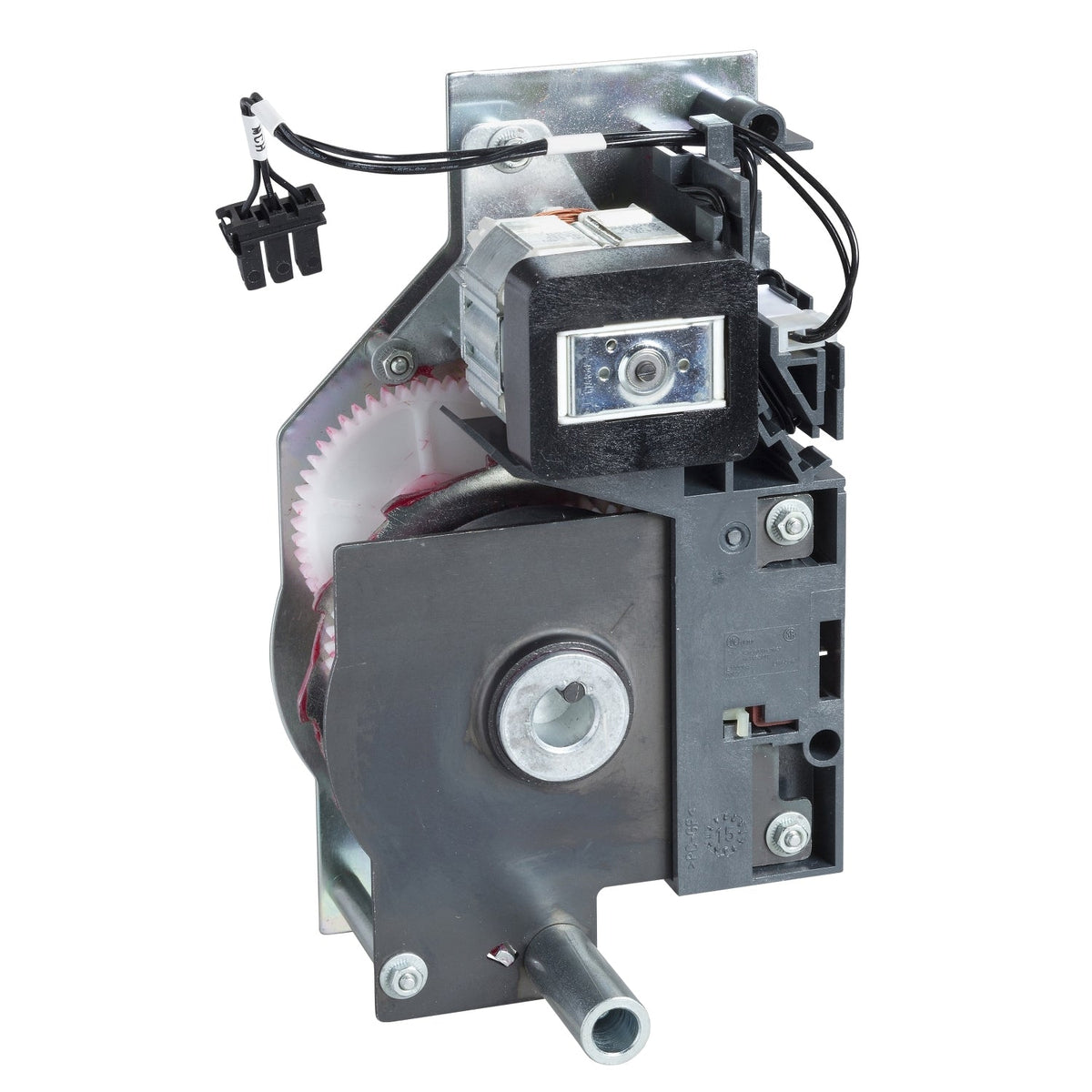

The Schneider Electric LV847893SP is an MCH electric motor mechanism supplied as a field-replacement spare part for MasterPact MTZ2 and MTZ3 air circuit breakers, built for remote operation on a 100-130 V AC 50/60 Hz control supply. It charges the breaker's closing springs in 4 s or less. It mounts on fixed MasterPact MTZ2/MTZ3 breakers.

Technical Specifications

Reference LV847893SP
Brand Schneider Electric
Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Range compatibility MasterPact MTZ2, MTZ3
Control Type / Mounting Mode Standard / Fixed
[Uc] control circuit voltage 100-130 V AC 50/60 Hz
Threshold tripping voltage / Overcurrent protection 0.85-1.1 Un / 2-3 x In, 0.1 s
Maximum power consumption 180 VA
Maximum charging time / operating frequency 4 s / <= 3 cycles per minute
Provided contact Limit switch contact, 240 V, 10 A
Offer type Spare part
Number of units in package 6

Selection Notes

Order the LV847893SP to replace a failed MCH motor mechanism on an MTZ2 or MTZ3 breaker already in service at 100-130 V AC control voltage; the equivalent 200-240 V and 250-277 V spares exist for other control circuits. The MTZ2/MTZ3 mechanism charges in up to 4 s, a second longer than the MTZ1 version, reflecting the larger spring assembly in the bigger frame. It ships with an instruction sheet for the field swap. Replacing it restores full remote-close capability after a mechanism failure.

Technical Details

Short Description
MCH motor mechanism spare part, MasterPact MTZ2/MTZ3, 100-130 V AC remote operation.
Rated Voltage (VAC)
100-130 V AC
Mounting Type
Fixed
Catalog No
LV847893SP
Delivery Date (Days)
30 days
Model Number
MCH
Tariff Code
853890
