Schneider Electric LV847398 MasterPact MTZ1 MCH Motor Mechanism 277-415V Fixed Air Circuit Breaker Accessory

% $-487.05
Schneider Electric LV847398 MCH motor mechanism – MTZ1 277-415 V AC
Schneider Electric LV847398 MCH motor mechanism – MTZ1 277-415 V AC

Schneider Electric LV847398 MasterPact MTZ1 MCH Motor Mechanism 277-415V Fixed Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847398
Catalog No: LV847398
Tariff Code (HS): 853890
Rated Voltage: 277-415 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$487.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

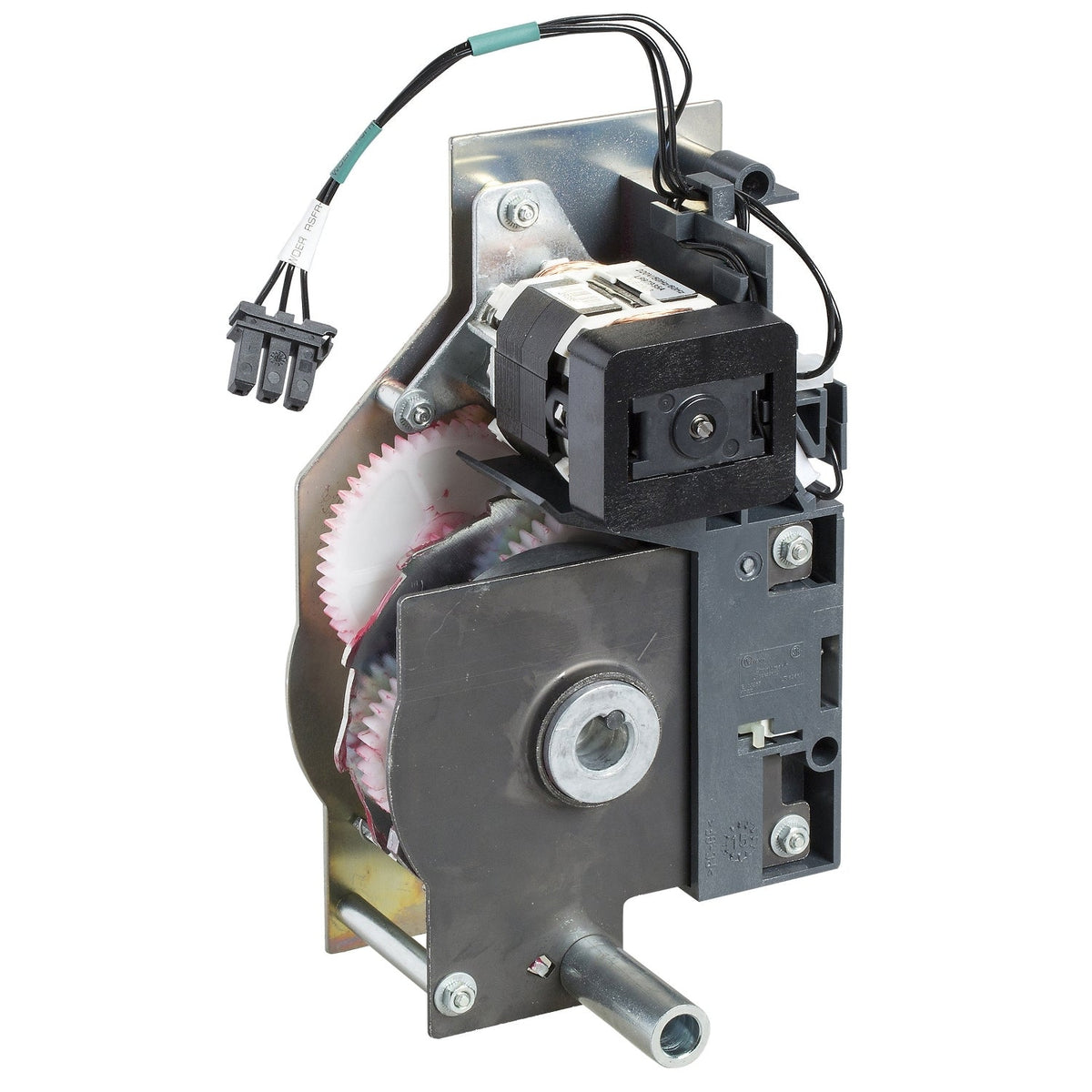

The Schneider Electric LV847398 is an MCH electric motor mechanism for fixed MasterPact MTZ1 air circuit breakers, built for remote operation on a 277-415 V AC 50/60 Hz control supply. It automatically charges the breaker's closing springs in 3 s or less, enabling remote closing without a manual charging handle.

Technical Specifications

Reference LV847398
Brand Schneider Electric
Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Range compatibility MasterPact MTZ1
Control Type / Mounting Mode Standard / Fixed
[Uc] control circuit voltage 277-415 V AC 50/60 Hz
Threshold tripping voltage / Overcurrent protection 0.85-1.1 Un / 2-3 x In, 0.1 s
Maximum power consumption 180 VA
Maximum charging time / operating frequency 3 s / <= 3 cycles per minute
Provided contact Limit switch contact, 240 V, 10 A

Selection Notes

The LV847398 is the highest-voltage MCH option for the MTZ1 frame, covering 277-415 V AC control circuits where the lower 100-130 V and 200-240 V variants do not apply. It is fixed-mount only. Because overcurrent protection trips the motor circuit at 2-3 x In within 0.1 s, a motor that stalls mid-charge is disconnected quickly rather than left drawing fault current. The same 3 s charging time and 240 V, 10 A limit switch contact apply as on the lower-voltage MTZ1 variants, so remote-close sequencing logic carries over unchanged.

Technical Details

Short Description
MCH electric motor mechanism, fixed MasterPact MTZ1, 277-415 V AC remote operation.
