Schneider Electric LV847396 MasterPact MTZ1 MCH Motor Mechanism 200-240V Fixed Air Circuit Breaker Accessory

% $-487.05
Schneider Electric LV847396 MCH motor mechanism – MTZ1 200-240 V AC
Schneider Electric LV847396 MCH motor mechanism – MTZ1 200-240 V AC

Schneider Electric LV847396 MasterPact MTZ1 MCH Motor Mechanism 200-240V Fixed Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847396
Catalog No: LV847396
Tariff Code (HS): 853890
Rated Voltage: 200-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$487.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

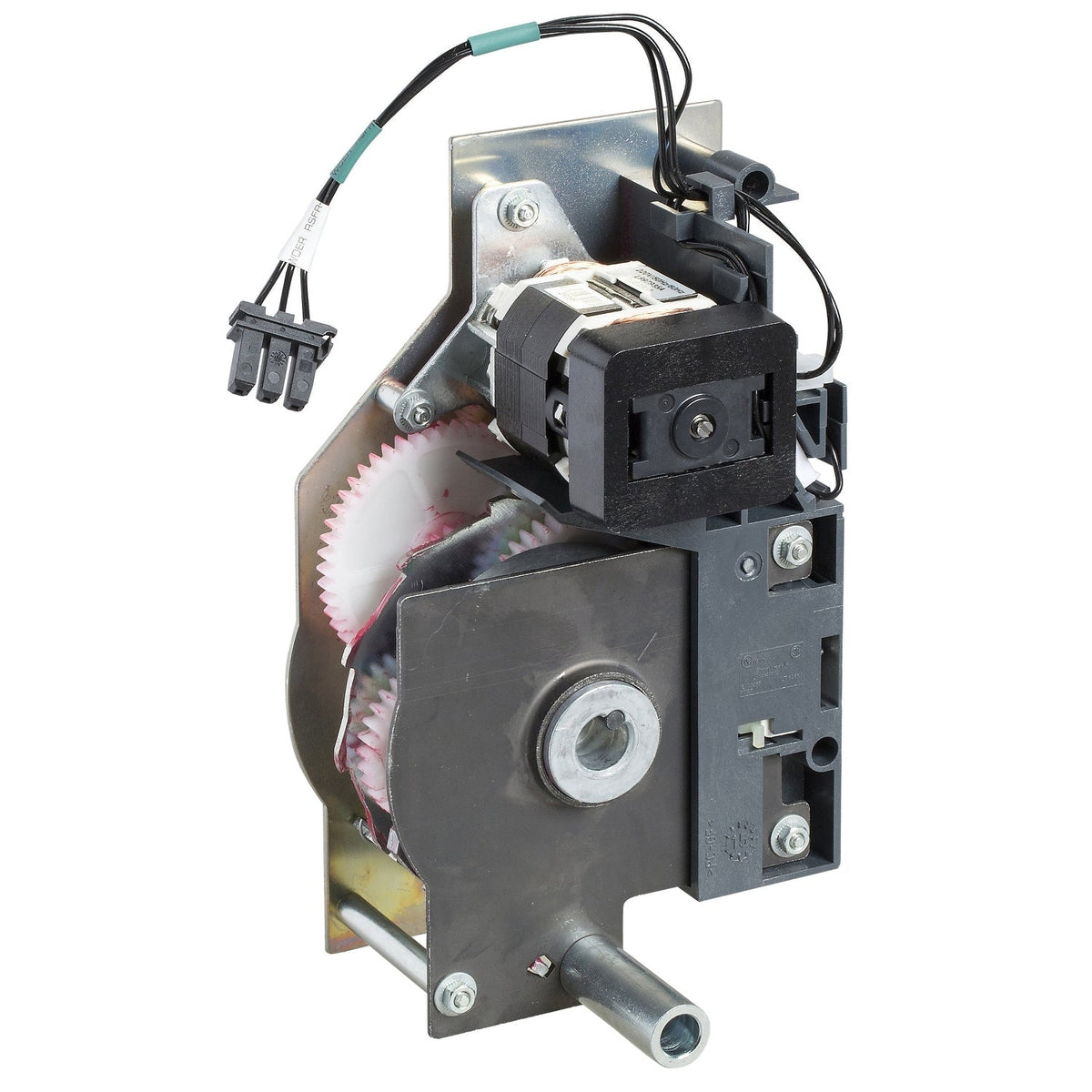

The Schneider Electric LV847396 is an MCH electric motor mechanism for fixed MasterPact MTZ1 air circuit breakers, built for remote operation on a 200-240 V AC 50/60 Hz control supply. It automatically charges the breaker's closing springs in 3 s or less, enabling remote closing without a manual charging handle.

Technical Specifications

Reference LV847396
Brand Schneider Electric
Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Range compatibility MasterPact MTZ1
Control Type / Mounting Mode Standard / Fixed
[Uc] control circuit voltage 200-240 V AC 50/60 Hz
Threshold tripping voltage / Overcurrent protection 0.85-1.1 Un / 2-3 x In, 0.1 s
Maximum power consumption 180 VA
Maximum charging time / operating frequency 3 s / <= 3 cycles per minute
Provided contact Limit switch contact, 240 V, 10 A

Selection Notes

Use the LV847396 when the control panel supplies 200-240 V AC rather than the 100-130 V or 277-415 V bands covered by the other MTZ1 MCH variants; fitting the wrong voltage band means the motor will not charge the springs correctly. It mounts on fixed MasterPact MTZ1 breakers only. The built-in limit switch contact (240 V, 10 A) can feed a remote closed/charged indication back to the control system, and the 3 s charging time sets the minimum interval between a trip and the breaker being ready to close again remotely.

Technical Details

Short Description
MCH electric motor mechanism, fixed MasterPact MTZ1, 200-240 V AC remote operation.
Rated Voltage (VAC)
200-240 V AC
Mounting Type
Fixed
Catalog No
LV847396
Delivery Date (Days)
30 days
Model Number
MCH
Tariff Code
853890
