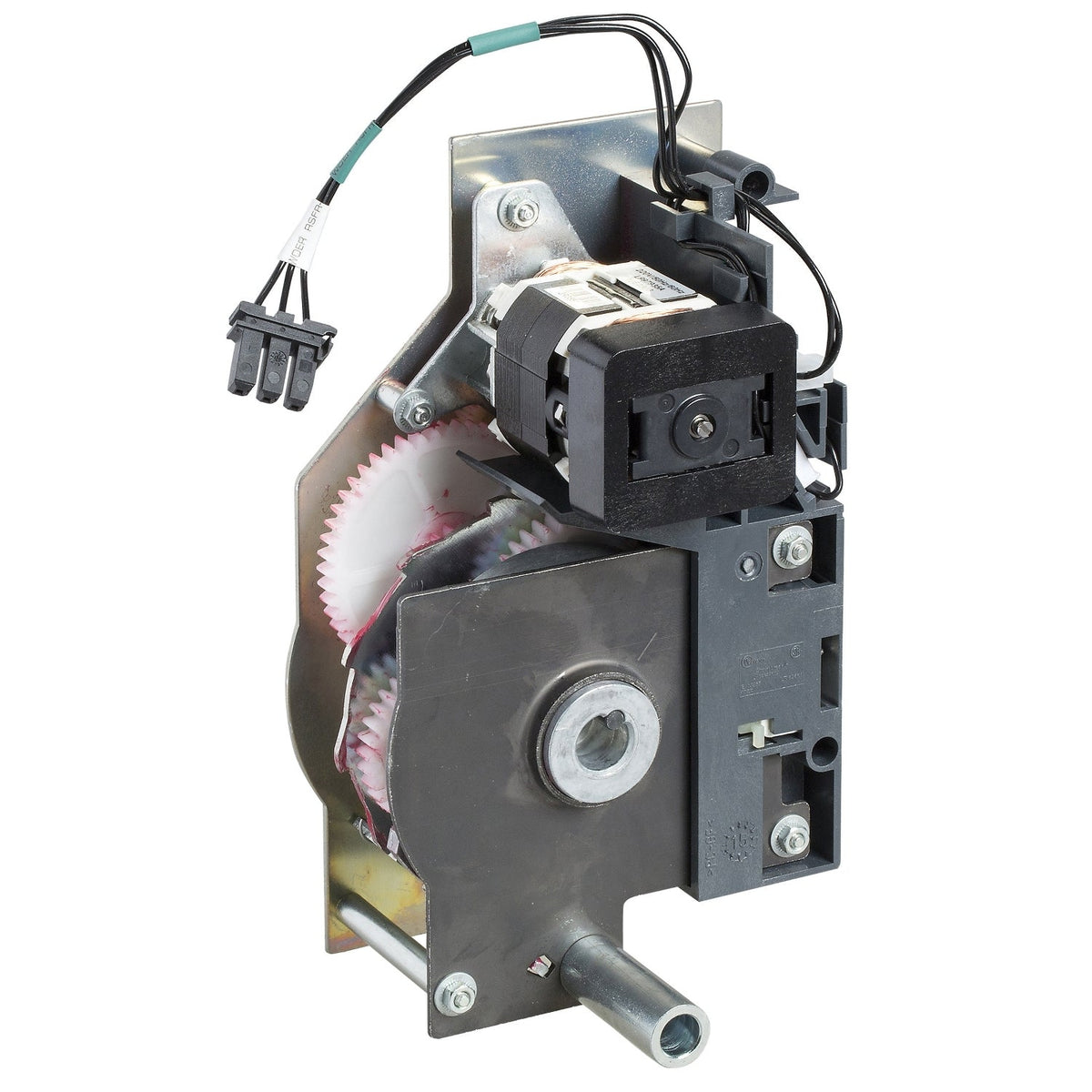

The Schneider Electric LV847395 is an MCH electric motor mechanism for fixed MasterPact MTZ1 air circuit breakers, built for remote operation on a 100-130 V AC 50/60 Hz control supply. It automatically charges the breaker's closing springs in 3 s or less, enabling remote closing without a manual charging handle.
The LV847395 only fits fixed MasterPact MTZ1 breakers; the MTZ2/MTZ3 frame uses a different MCH reference. Match its 100-130 V AC control supply to the panel's control voltage, since the same mechanism is also sold for 200-240 V and 277-415 V circuits. With a 3 s charging time and a built-in limit switch contact rated 240 V 10 A, it suits applications that need remote re-closing after a trip without an operator opening the cubicle door. Overcurrent protection at 2-3 x In within 0.1 s disconnects the motor circuit quickly if the mechanism stalls mid-charge, limiting the fault current drawn before a protective device clears it.
| Range | MasterPact |
|---|---|
| Device short name | MCH |
| Product or Component Type | Motor mechanism |
| Device Application | Control |
| Range compatibility | Masterpact MasterPact MTZ1 |
| Control Type | Standard |
|---|---|
| Mounting Mode | Fixed |
| [Uc] control circuit voltage | 100...130 V AC 50/60 Hz |
| Threshold tripping voltage | 0.85...1.1 Un |
| Maximum power consumption in VA | 180 VA |
| Overcurrent protection | 2...3 x In 0.1 s |
| Maximum charging time | 3 s |
| Maximum operating frequency | <= 3 cycles per minute |
| provided contact | Limit switch contact 240 V 10 A |
| Warranty (in months) | 18 |
|---|
| Part number | LV847395 |
|---|---|
| Type designation | MCH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480813184 |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.2 in (0.6 cm) |
| Package 1 Width | 4.7 in (12.0 cm) |
| Package 1 Length | 7.09 in (18.0 cm) |
| Package weight(Lbs) | 29.07 oz (824.0 g) |
| Shipping weight | 0.824 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
