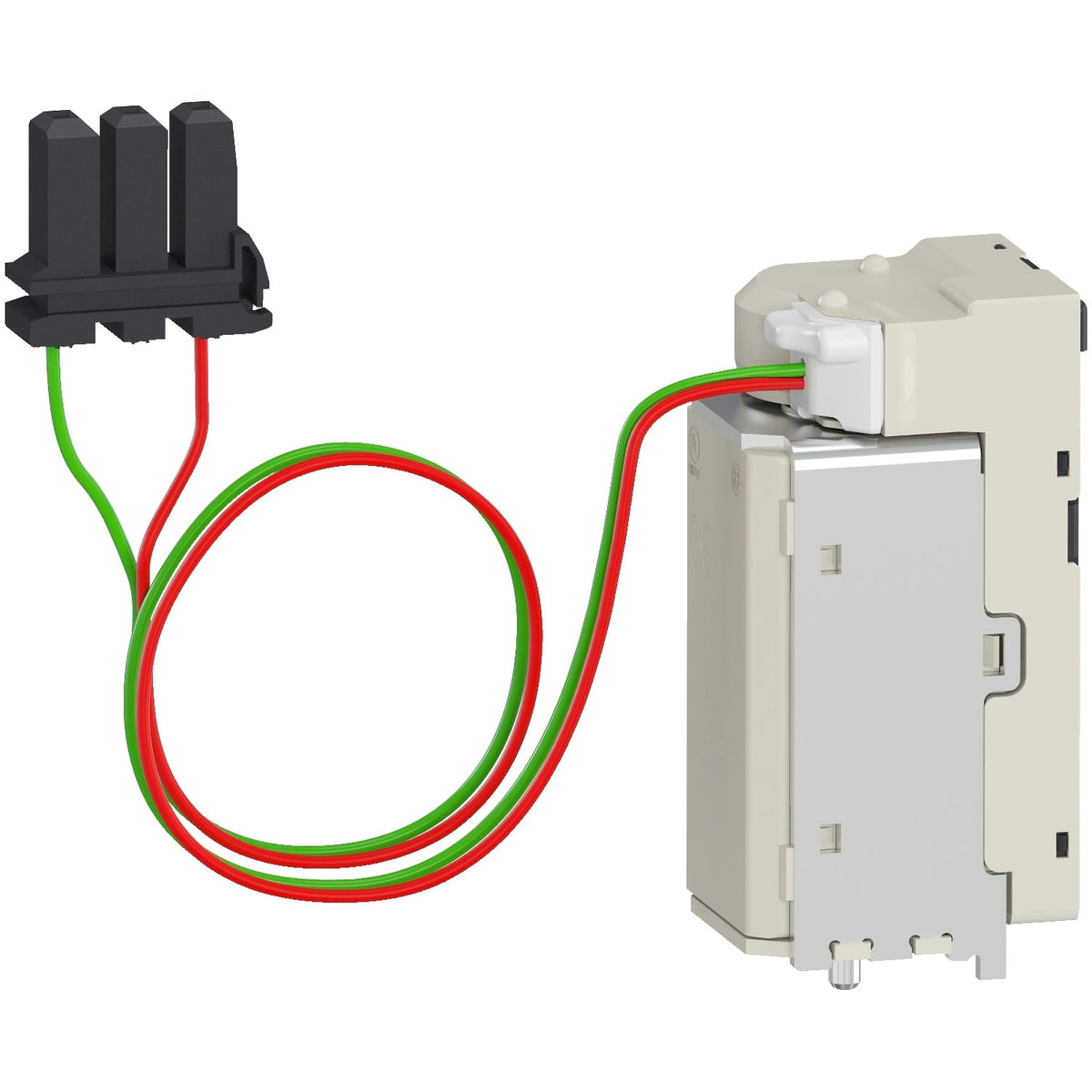

Schneider Electric LV847362 MasterPact MTZ Fixed MX Opening Coil 100-130V AC Air Circuit Breaker Accessory

Schneider Electric LV847362 fixed MX opening voltage release coil, 100/130 V AC / 100/130 V DC, MasterPact MTZ1/2/3.

Rated operational voltage
100–130 – 100–130 V DC
EAN
3606480806476
Description

About the MX

The Schneider Electric LV847362 is a fixed-mount MX opening voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 100/130 V AC / 100/130 V DC control supply and dedicated to the opening function only, with no diagnostic signalling and no compatibility with drawout-mounted frames.

Selection Notes

LV847362 is a fixed-mount-only, single-function coil — order the drawout equivalent (LV8336xxSP series) instead if the breaker is on a cradle, and order the opposite-function coil separately if the application needs both opening and closing control, since this reference covers opening only.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 6

Range MasterPact
Device short name MX
Product or Component Type Voltage release
Device Application Control
Range compatibility Masterpact MasterPact MTZ2 circuit-breaker, Masterpact MasterPact MTZ3 circuit-breaker, Masterpact MasterPact MTZ1 circuit-breaker
Voltage release type Opening coil

Complementary 6

Control Type Standard
[Un] voltage power supply 100...130 V AC 50/60 Hz, 100...130 V DC
Threshold tripping voltage 0.7...1.1 Un on opening
Holding power consumption 4.5 W
Circuit breaker mounting mode Fixed
Maximum response time 60 ms on opening MasterPact MTZ1, 60 ms on opening MasterPact MTZ2, 60 ms on opening MasterPact MTZ3

Contractual warranty 1

Warranty (in months) 18
Show all 31 specifications ↓ Show less ↑18 more values in Identification, Logistics.

Identification 8

Part number LV847362
Type designation MX
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480806476

Logistics 10

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.4 in (3.5 cm)
Package 1 Width 2.5 in (6.3 cm)
Package 1 Length 3.2 in (8.1 cm)
Package weight(Lbs) 2.562 lb(US) (1.162 kg)
Shipping weight 1.162 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
