Part number
LV847352
Model no
XF
$144.84 On request Dispatch — · From TürkiyeGet a Quote

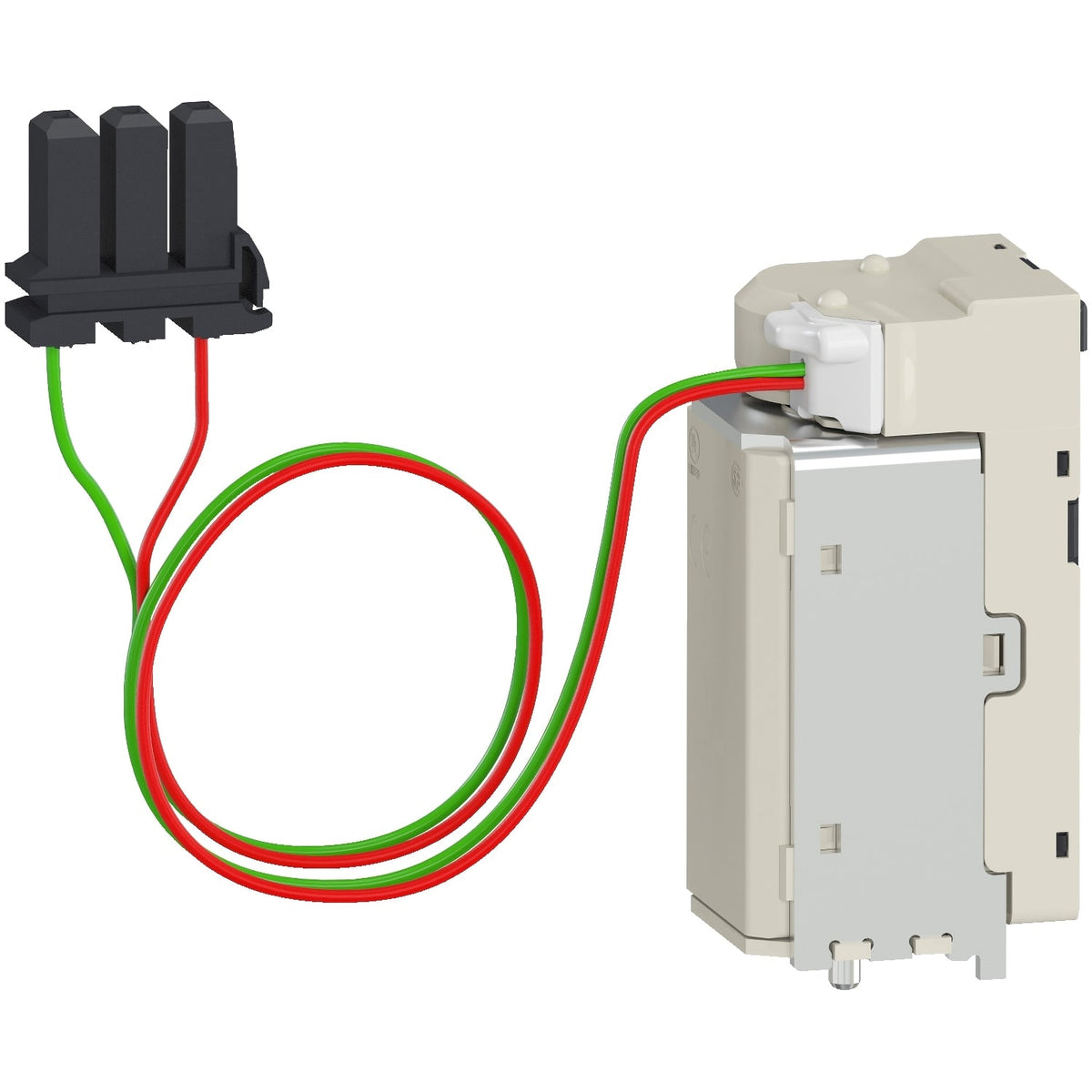

Schneider Electric LV847352 MasterPact MTZ Fixed XF Closing Coil 100-130V AC Air Circuit Breaker Accessory

Schneider Electric LV847352 fixed XF closing voltage release coil, 100/130 V AC / 100/130 V DC, MasterPact MTZ1/2/3.

Rated operational voltage
100–130 – 100–130 V DC
EAN
3606480806414
Description

About the XF

The Schneider Electric LV847352 is a fixed-mount XF closing voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 100/130 V AC / 100/130 V DC control supply and dedicated to the closing function only, with no diagnostic signalling and no compatibility with drawout-mounted frames.

Selection Notes

LV847352 is a fixed-mount-only, single-function coil — order the drawout equivalent (LV8336xxSP series) instead if the breaker is on a cradle, and order the opposite-function coil separately if the application needs both opening and closing control, since this reference covers closing only.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 6

Range MasterPact
Device short name XF
Product or Component Type Voltage release
Device Application Control
Range compatibility Masterpact MasterPact MTZ2 circuit-breaker, Masterpact MasterPact MTZ3 circuit-breaker, Masterpact MasterPact MTZ1 circuit-breaker
Voltage release type Closing coil

Complementary 6

Control Type Standard
[Un] voltage power supply 100...130 V AC 50/60 Hz, 100...130 V DC
Threshold tripping voltage 0.85...1.1 Un on closing
Holding power consumption 4.5 W
Circuit breaker mounting mode Fixed
Maximum response time 65 ms on closing MasterPact MTZ1, 80 ms on closing MasterPact MTZ2, 90 ms on closing MasterPact MTZ3

Contractual warranty 1

Warranty (in months) 18
Show all 31 specifications ↓ Show less ↑18 more values in Identification, Logistics.

Identification 8

Part number LV847352
Type designation XF
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480806414

Logistics 10

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.4 in (3.5 cm)
Package 1 Width 2.5 in (6.3 cm)
Package 1 Length 3.2 in (8.1 cm)
Package weight(Lbs) 2.562 lb(US) (1.162 kg)
Shipping weight 1.162 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
