Schneider Electric LV847343 MasterPact MTZ Low-Level Ready-to-Close Contact PF Air Circuit Breaker Accessory

% $-65.72

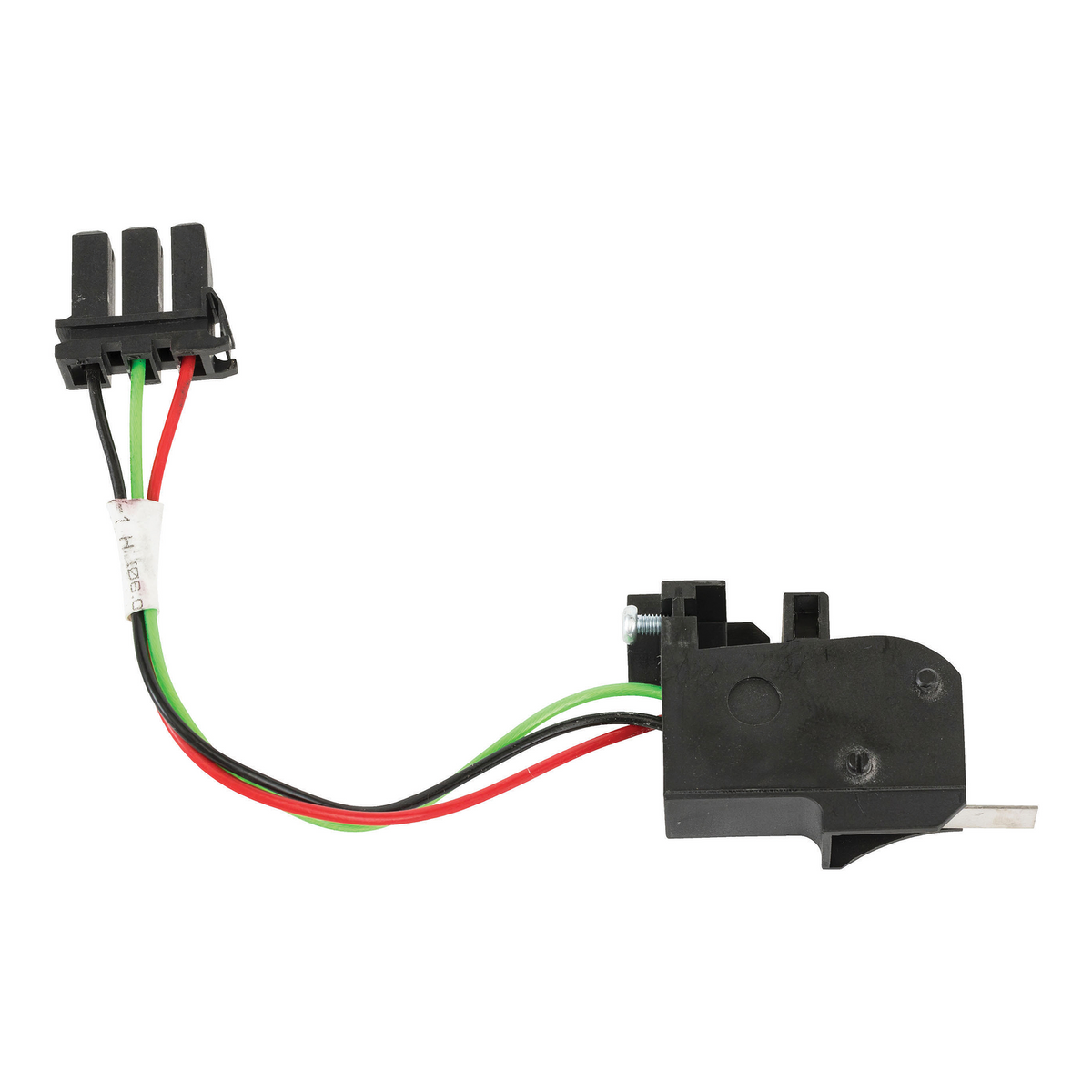

Schneider Electric LV847343 MasterPact MTZ fixed low-level ready-to-close contact PF
Schneider Electric LV847343 MasterPact MTZ fixed low-level ready-to-close contact PF

Schneider Electric LV847343 MasterPact MTZ Low-Level Ready-to-Close Contact PF Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847343
Catalog No: LV847343
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$65.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV847343 is a low-level ready-to-close (PF) auxiliary contact for fixed MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, a single changeover contact rated 3 A at 240 V AC and built for low-current PLC and electronic control inputs rather than a conventional relay coil.

Technical Specifications

Reference LV847343
Brand Schneider Electric
GTIN 3606480811876
Range MasterPact
Device Short Name PF
Product Type Auxiliary contact
Device Application Control
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Auxiliary Contacts Type Low level
Signal Contacts Composition 1 NO/NC
Mounting Mode Fixed
Breaking Capacity 3 A AC-12 at 24/48 V AC; 3 A AC-12 at 240 V AC; 3 A DC-12 at 24/48 V DC; 0.3 A DC-12 at 125 V DC

Selection Notes

Choose LV847343 over the standard LV847342 contact when the PF signal feeds a PLC digital input or a low-energy electronic circuit — the low-level contact type is designed to switch reliably at currents too small to self-clean a standard silver contact. Both references share the same fixed-mount, 1 NO/NC layout.

Technical Details

Short Description
Schneider Electric LV847343 low-level ready-to-close contact PF, fixed, MasterPact MTZ1/2/3, 3 A at 240 V AC.
Mounting Type
Fixed
Catalog No
LV847343
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Fixed Low-Level Ready-to-Close Contact (PF)
Tariff Code
853890
