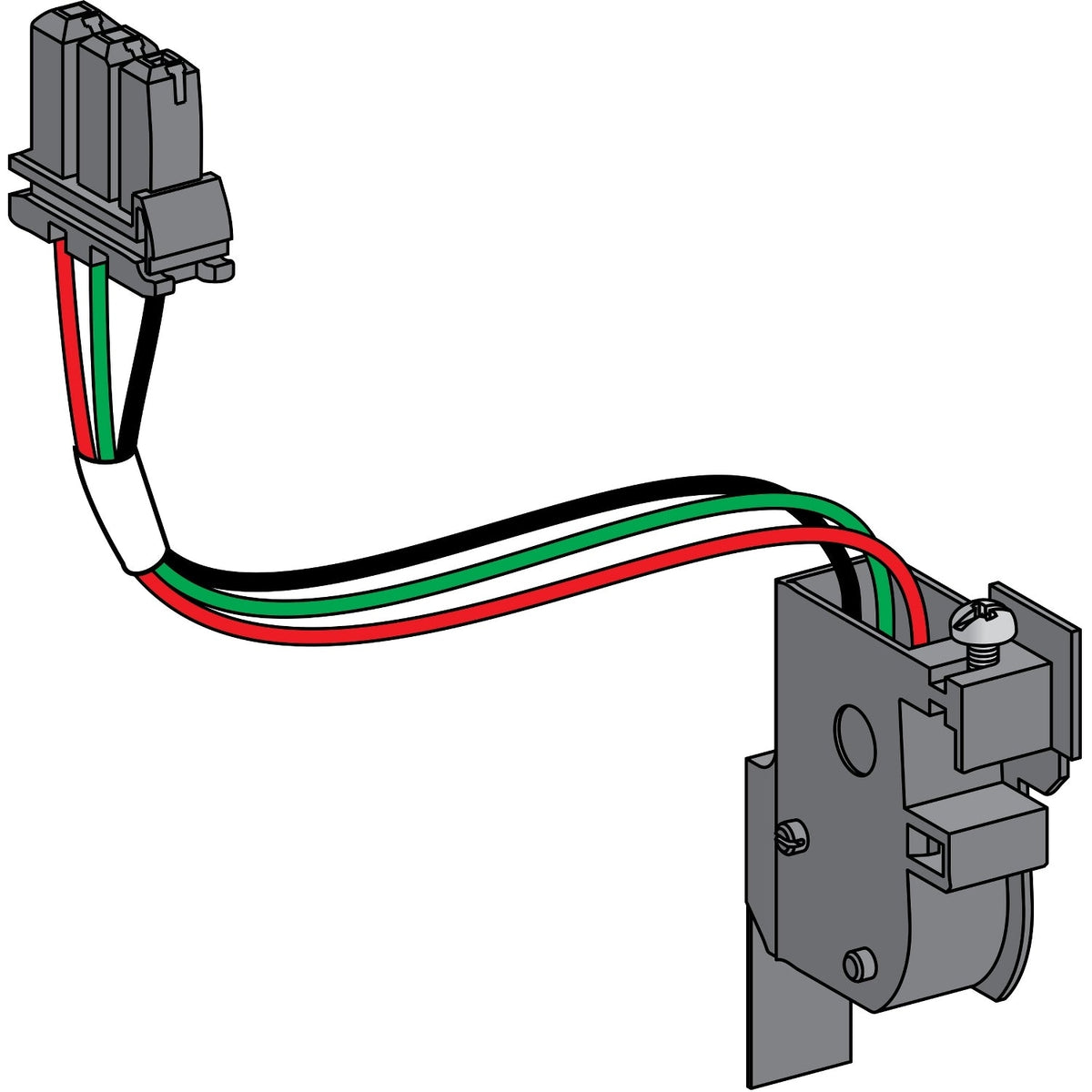

Schneider Electric LV847342 MasterPact MTZ Fixed Ready-to-Close Contact PF Air Circuit Breaker Accessory

% $-65.72
Schneider Electric LV847342 MasterPact MTZ fixed ready-to-close contact PF
Schneider Electric LV847342 MasterPact MTZ fixed ready-to-close contact PF

Schneider Electric LV847342 MasterPact MTZ Fixed Ready-to-Close Contact PF Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847342
Catalog No: LV847342
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$65.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV847342 is a ready-to-close (PF) auxiliary contact for fixed MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, a single changeover contact rated 5 A at 240 V AC that confirms the closing springs are charged before a remote close command is sent.

Technical Specifications

Reference LV847342
Brand Schneider Electric
GTIN 3606480811869
Range MasterPact
Device Short Name PF
Product Type Auxiliary contact
Device Application Control
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Auxiliary Contacts Type Standard
Signal Contacts Composition 1 NO/NC
Mounting Mode Fixed
Breaking Capacity 5 A AC-12 at 240/380 V AC; 2 A AC-12 at 480 V AC; 3 A DC-12 at 24/48 V DC; 0.3 A DC-12 at 125 V DC; 0.15 A DC-12 at 250 V DC
Minimum Load 100 mA at 24 V

Selection Notes

LV847342 is the fixed-mount counterpart used across all three MTZ frame sizes, unlike LV847080SP which covers only MTZ2/MTZ3. Pick the standard contact type over the low-level LV847343 whenever the PF signal feeds a conventional 240 V AC control relay rather than a low-current PLC input.

Technical Details

Short Description
Schneider Electric LV847342 ready-to-close contact PF, fixed, MasterPact MTZ1/2/3, 5 A at 240 V AC.
Mounting Type
Fixed
Catalog No
LV847342
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Fixed Ready-to-Close Contact (PF)
Tariff Code
853890
