Schneider Electric LV847080SP MasterPact MTZ2/MTZ3 Ready-to-Close Contact PF Air Circuit Breaker Accessory

% $-65.72

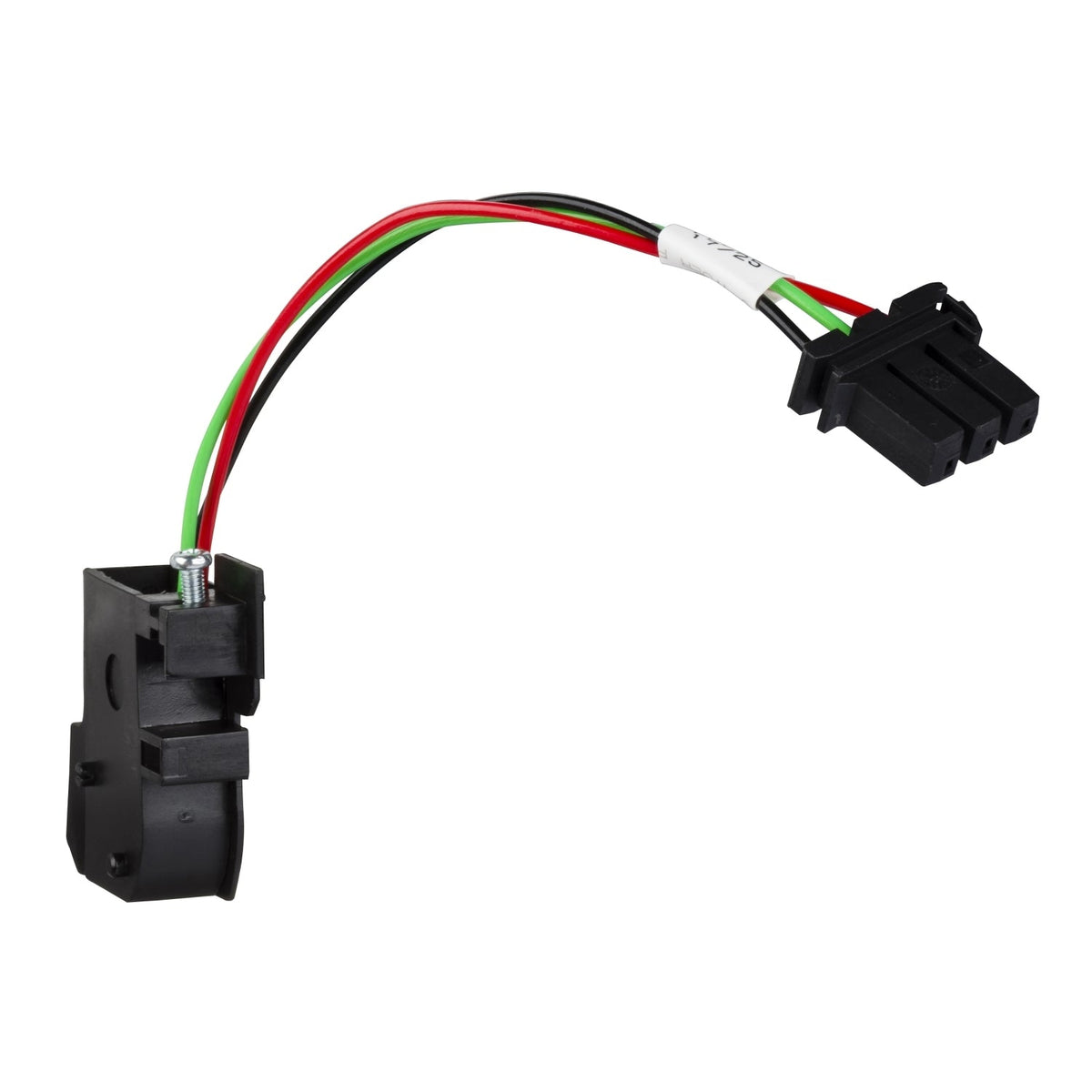

Schneider Electric LV847080SP MasterPact MTZ2/MTZ3 ready-to-close contact PF
Schneider Electric LV847080SP MasterPact MTZ2/MTZ3 ready-to-close contact PF

Schneider Electric LV847080SP MasterPact MTZ2/MTZ3 Ready-to-Close Contact PF Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847080SP
Catalog No: LV847080SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$65.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV847080SP is a ready-to-close (PF) auxiliary contact for MasterPact MTZ2 and MTZ3 air circuit breakers, a single changeover contact that confirms the breaker's closing springs are charged and the mechanism is ready to close before a remote close command is issued to the switchgear.

Technical Specifications

Reference LV847080SP
Brand Schneider Electric
GTIN 3606481186874
Range MasterPact
Device Short Name PF
Product Type Auxiliary contact
Device Application Control
Range Compatibility MasterPact MTZ2, MTZ3
Auxiliary Contacts Type Standard
Breaking Capacity 5 A AC-12 at 240/380 V AC; 2 A AC-12 at 480 V AC; 3 A DC-12 at 24/48 V DC; 0.3 A DC-12 at 125 V DC; 0.15 A DC-12 at 250 V DC
Minimum Load 100 mA at 24 V
Offer Type Spare part
Packaging 80 per package

Selection Notes

LV847080SP only fits MTZ2 and MTZ3 — MTZ1 uses the related LV847342/LV847343 references instead. The PF signal is most useful ahead of an automatic reclosing sequence, confirming the spring-charge state before the control system sends the actual close command and avoiding a close attempt on a discharged mechanism.

Technical Details

Short Description
Schneider Electric LV847080SP ready-to-close contact PF, 1 changeover, MasterPact MTZ2/MTZ3.
Catalog No
LV847080SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Ready-to-Close Contact (PF)
Tariff Code
853890
