Schneider Electric LV847074SP MasterPact MTZ1/2/3 3-Wire Terminal Block Fixed Air Circuit Breaker Accessory

% $-16.65

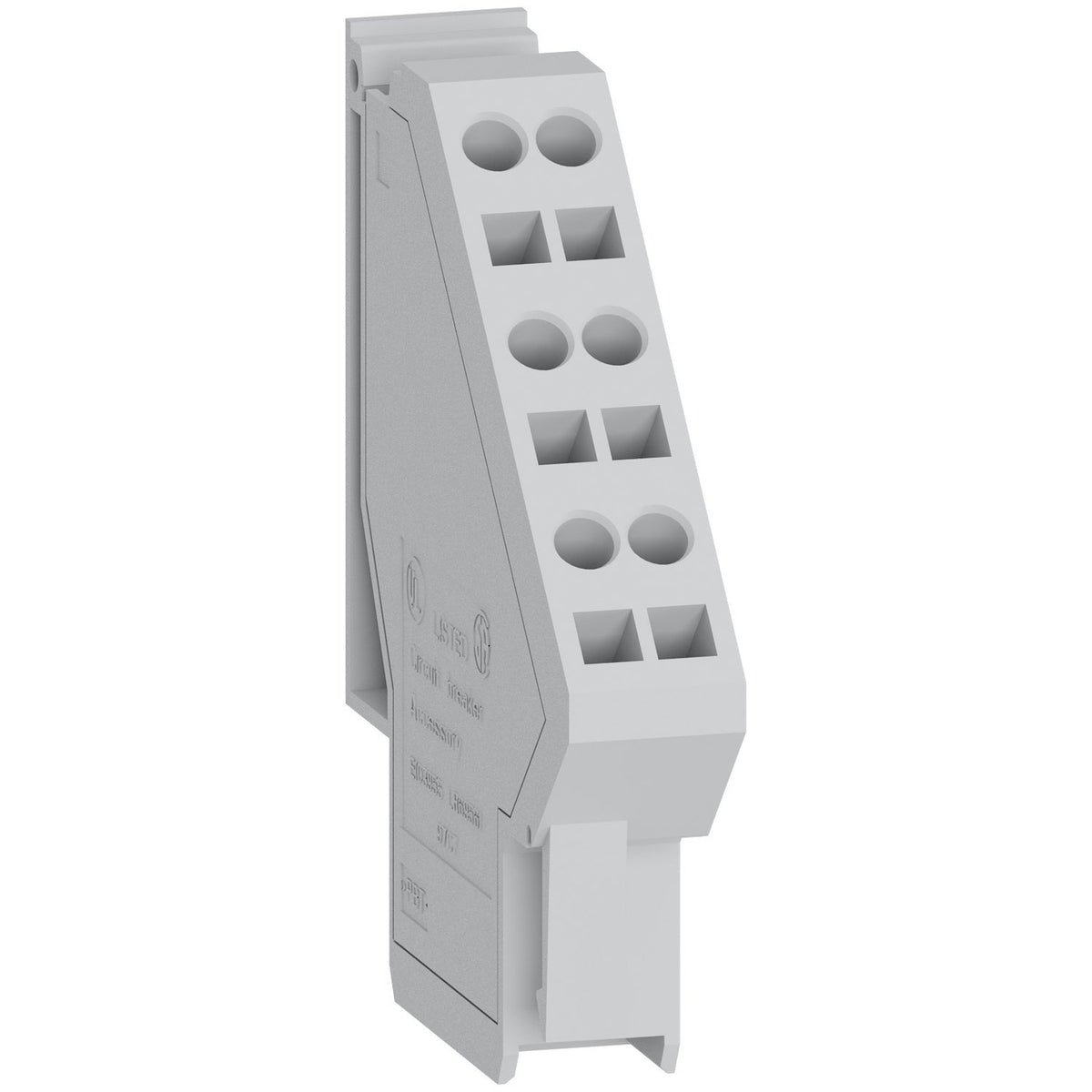

Schneider Electric LV847074SP MasterPact MTZ fixed 3-wire terminal block
Schneider Electric LV847074SP MasterPact MTZ fixed 3-wire terminal block

Schneider Electric LV847074SP MasterPact MTZ1/2/3 3-Wire Terminal Block Fixed Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV847074SP
Catalog No: LV847074SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$16.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV847074SP is a 3-wire terminal block for secondary wiring on fixed MasterPact MTZ MTZ1/2/3 air circuit breakers, giving a fixed, labelled connection point for control and auxiliary circuits instead of splicing wires directly onto the breaker's own accessory terminals during panel build.

Technical Specifications

Reference LV847074SP
Brand Schneider Electric
GTIN 3606481186812
Range MasterPact
Product Type Terminal block
Device Application Secondary wiring
Range Compatibility MasterPact MTZ MTZ1/2/3
Quantity 1 piece
Mounting Mode Fixed
Wiring Mode 3 wires
Offer Type Spare part
Packaging 80 per package

Selection Notes

LV847074SP is keyed to fixed frames specifically — a drawout terminal block will not seat correctly on a fixed breaker's secondary disconnect and vice versa, so match this part to the breaker's mounting mode before ordering. The 3-wire layout covers the typical control-circuit wiring count for a single accessory (for example one voltage release or one auxiliary contact) on this frame.

Technical Details

Short Description
Schneider Electric LV847074SP 3-wire terminal block, fixed MasterPact MTZ MTZ1/2/3, secondary wiring.
Mounting Type
Fixed
Catalog No
LV847074SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Terminal Block (Fixed)
Tariff Code
853890
