Schneider Electric LV833753 MasterPact MTZ Disconnected Position Contact CD Air Circuit Breaker Accessory

% $-29.65

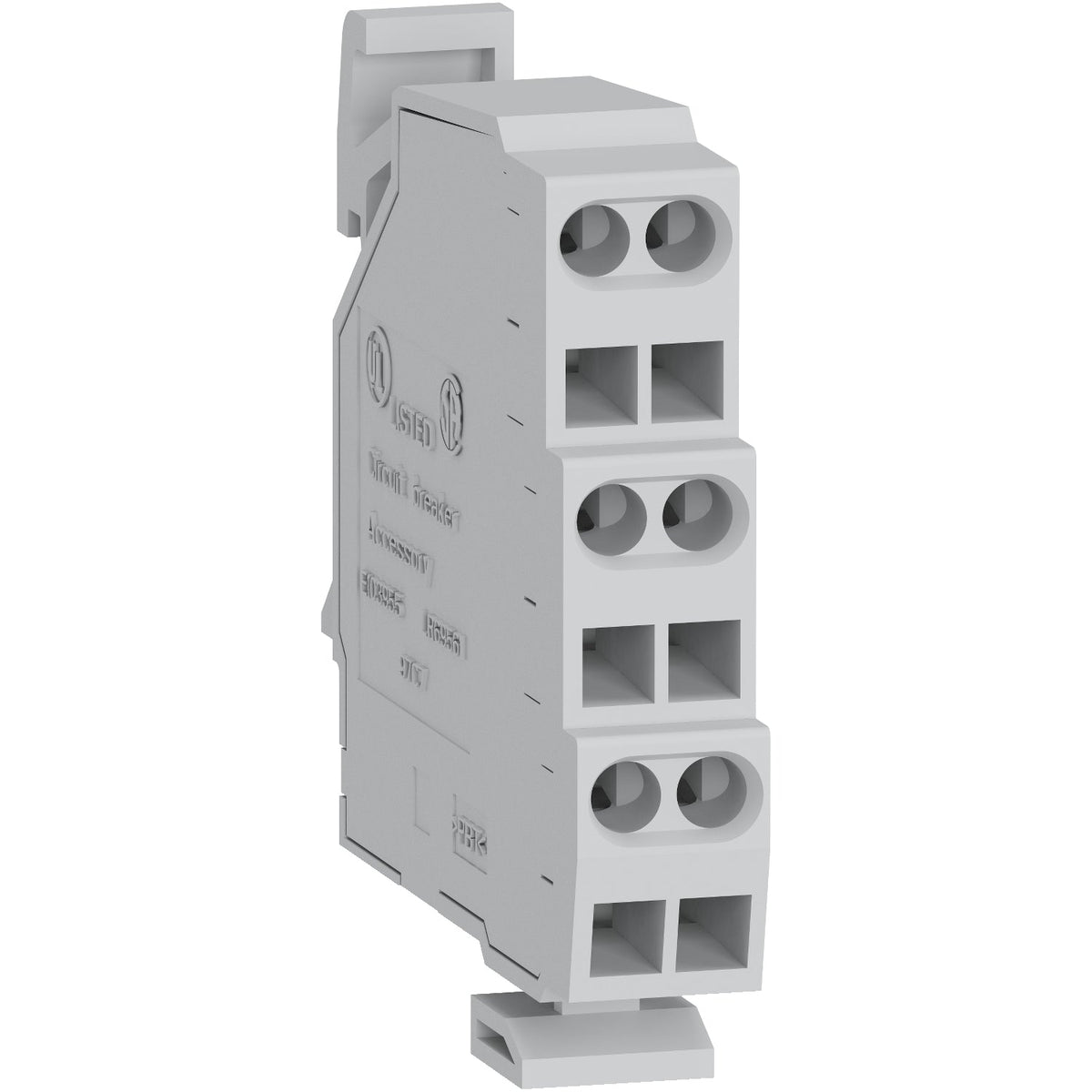

Schneider Electric LV833753 MasterPact MTZ drawout disconnected position contact CD
Schneider Electric LV833753 MasterPact MTZ drawout disconnected position contact CD

Schneider Electric LV833753 MasterPact MTZ Disconnected Position Contact CD Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833753
Catalog No: LV833753
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$29.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833753 is a disconnected position (CD) auxiliary contact for drawout MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, giving one normally open / normally closed contact that signals when the breaker chassis is in the disconnected position in its cradle, rated for direct use in low-voltage control and interlock circuits without an interposing relay.

Technical Specifications

Reference LV833753
Brand Schneider Electric
Range MasterPact
Device Short Name CD
Product Type Auxiliary contact
Device Application Control
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Signal Contacts Composition 1 NO/NC
Mounting Mode Drawout
Auxiliary Contacts Type Standard
Auxiliary Contacts Operation Disconnected position
[Ie] Rated Operational Current AC-12: 6 A at 690 V AC, 8 A at 240/380/480 V AC; DC-12: 0.3 A at 150 V DC, 0.8 A at 125 V DC, 2.5 A at 24/48 V DC
Minimum Load 100 mA at 24 V

Selection Notes

LV833753 reports only the disconnected position — pair it with the CE/CT contacts if the control circuit needs to distinguish all three chassis positions rather than just one. It is a drawout-only accessory and has no equivalent function on fixed-mounted MTZ breakers.

Technical Details

Short Description
Schneider Electric LV833753 disconnected position auxiliary contact (CD), drawout MasterPact MTZ1/2/3.
Mounting Type
Drawout
Catalog No
LV833753
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Disconnected Position Contact (CD)
Tariff Code
853890
