Schneider Electric LV833752 MasterPact MTZ Test Position Contact CT Air Circuit Breaker Accessory

% $-29.65

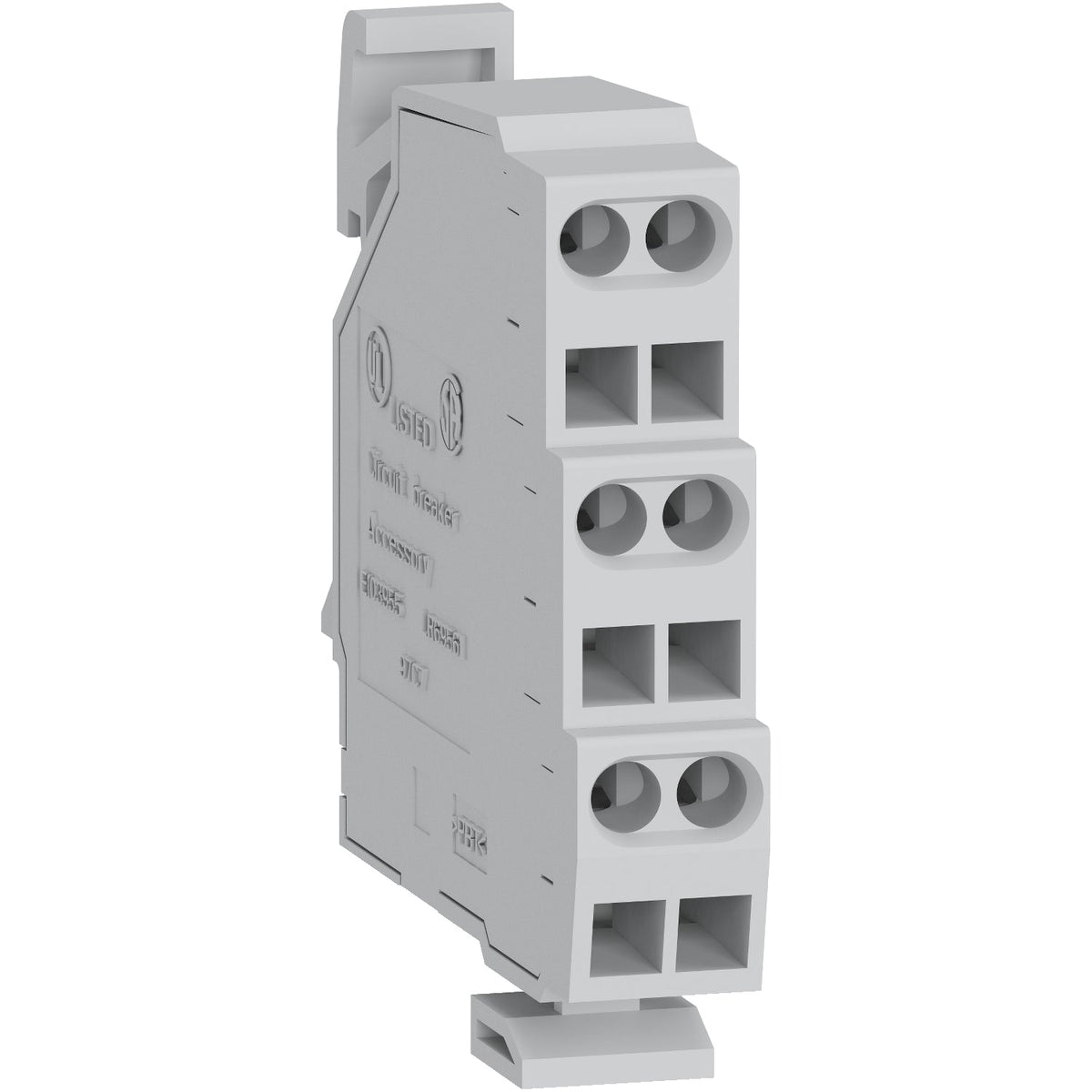

Schneider Electric LV833752 MasterPact MTZ drawout test position contact CT
Schneider Electric LV833752 MasterPact MTZ drawout test position contact CT

Schneider Electric LV833752 MasterPact MTZ Test Position Contact CT Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833752
Catalog No: LV833752
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$29.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833752 is a test position (CT) auxiliary contact for drawout MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, giving one normally open / normally closed contact that signals when the breaker chassis is in the test position in its cradle, rated for direct use in low-voltage control and interlock circuits without an interposing relay.

Technical Specifications

Reference LV833752
Brand Schneider Electric
Range MasterPact
Device Short Name CT
Product Type Auxiliary contact
Device Application Control
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Signal Contacts Composition 1 NO/NC
Mounting Mode Drawout
Auxiliary Contacts Type Standard
Auxiliary Contacts Operation Test position
[Ie] Rated Operational Current AC-12: 6 A at 690 V AC, 8 A at 240/380/480 V AC; DC-12: 0.3 A at 150 V DC, 0.8 A at 125 V DC, 2.5 A at 24/48 V DC
Minimum Load 100 mA at 24 V

Selection Notes

LV833752 reports only the test position — pair it with the CE/CD contacts if the control circuit needs to distinguish all three chassis positions rather than just one. It is a drawout-only accessory and has no equivalent function on fixed-mounted MTZ breakers.

Technical Details

Short Description
Schneider Electric LV833752 test position auxiliary contact (CT), drawout MasterPact MTZ1/2/3.
Mounting Type
Drawout
Catalog No
LV833752
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Test Position Contact (CT)
Tariff Code
853890
