Schneider Electric LV833662SP MasterPact MTZ XF/MX Voltage Release 200-250V AC Air Circuit Breaker Accessory

% $-141.72

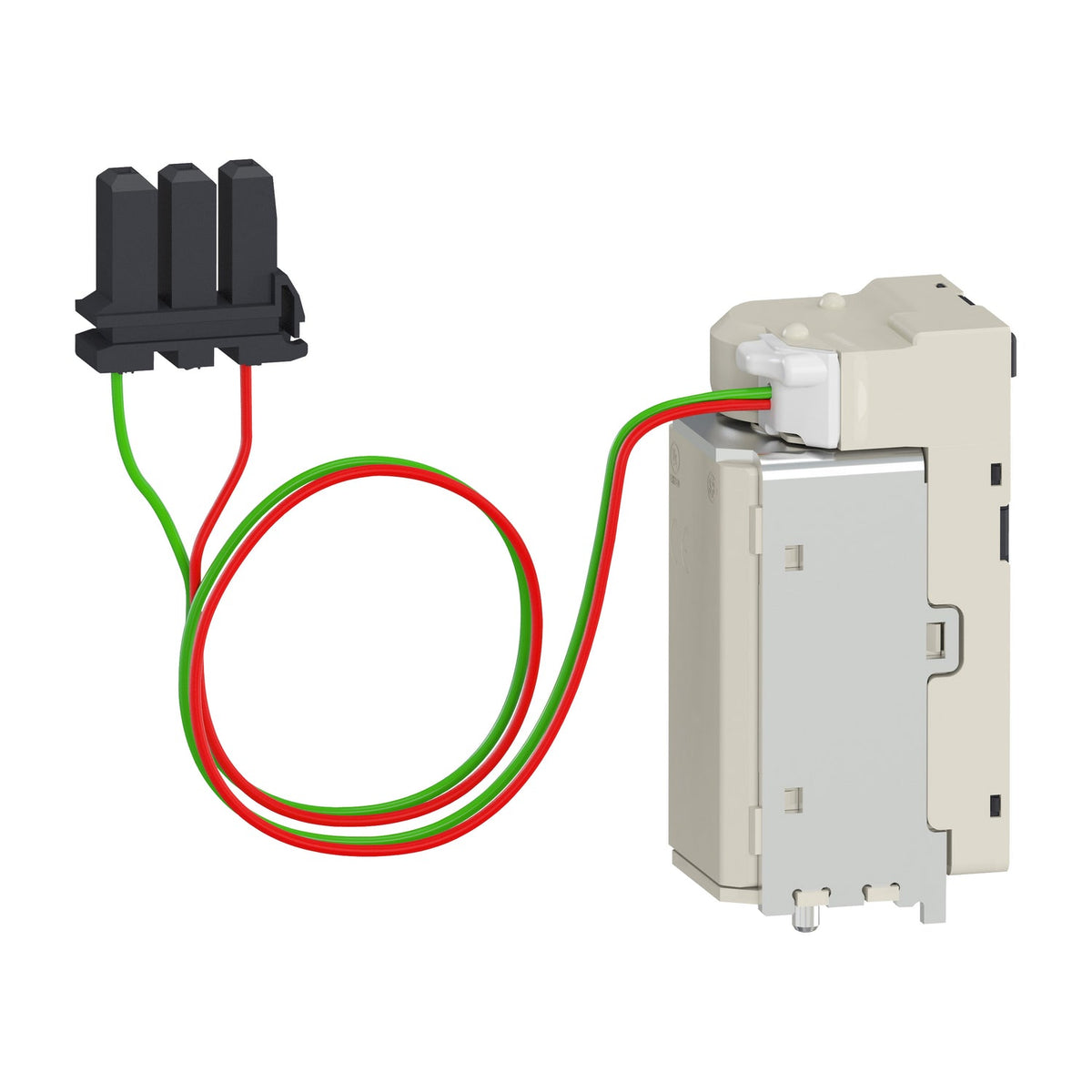

Schneider Electric LV833662SP MasterPact MTZ XF/MX voltage release coil - 200/250 V AC / 200/250 V DC
Schneider Electric LV833662SP MasterPact MTZ XF/MX voltage release coil - 200/250 V AC / 200/250 V DC

Schneider Electric LV833662SP MasterPact MTZ XF/MX Voltage Release 200-250V AC Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833662SP
Catalog No: LV833662SP
Tariff Code (HS): 853890
Rated Voltage: 200/250 V AC / 200/250 V DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$141.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833662SP is a standard XF/MX voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 200/250 V AC / 200/250 V DC control supply and available as both a closing (XF) and an opening (MX) coil, fitted to fixed or drawout frames.

Technical Specifications

Reference LV833662SP
Brand Schneider Electric
GTIN 3606480932540
Range MasterPact
Product Type Voltage release (closing and opening coil)
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
[Un] Voltage Power Supply 200/250 V AC / 200/250 V DC, 50/60 Hz
Threshold Tripping Voltage 0.7-1.1 Un on opening, 0.85-1.1 Un on closing
Holding Power Consumption 4.5 W
Circuit Breaker Mounting Mode Fixed / drawout
Max. Response Time (Opening) 60 ms on MTZ1, MTZ2, MTZ3
Max. Response Time (Closing) 65 ms MTZ1, 80 ms MTZ2, 90 ms MTZ3
Offer Type Spare part
Packaging 40 per package

Selection Notes

Choose LV833662SP over the communicating version (LV8330xxSP) when the application only needs the coil to open or close the breaker on command, with no diagnostic or status reporting back to a monitoring system — the 200/250 V AC / 200/250 V DC rating still has to match the control circuit exactly. Response time is the same across the range (60 ms opening on all three frames, 65/80/90 ms closing by frame size).

Technical Details

Short Description
Schneider Electric LV833662SP standard XF/MX voltage release, 200/250 V AC / 200/250 V DC, for MasterPact MTZ1/2/3.
Rated Voltage (VAC)
200/250 V AC / 200/250 V DC
Mounting Type
Fixed / drawout
Catalog No
LV833662SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ XF/MX Voltage Release
Tariff Code
853890
