Part number
LV833661SP
$144.84 On request Dispatch — · From TürkiyeGet a Quote

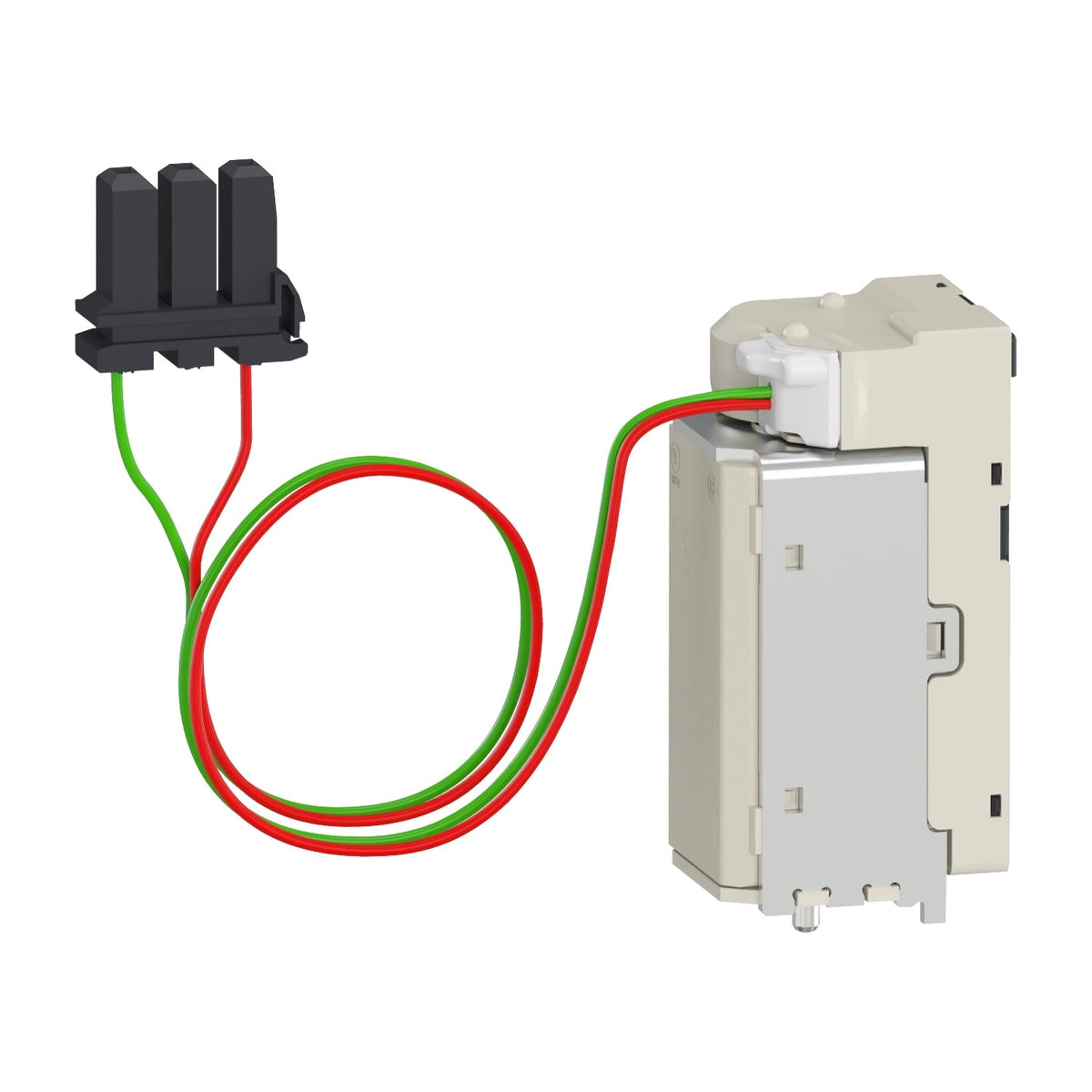

Schneider Electric LV833661SP MasterPact MTZ XF/MX Voltage Release 100-130V AC Air Circuit Breaker Accessory

Schneider Electric LV833661SP standard XF/MX voltage release, 100/130 V AC / 100/130 V DC, for MasterPact MTZ1/2/3.

Rated operational voltage
100–130 – 100–130 V DC
EAN
3606480932533
Description

About the LV833661SP

The Schneider Electric LV833661SP is a standard XF/MX voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 100/130 V AC / 100/130 V DC control supply and available as both a closing (XF) and an opening (MX) coil, fitted to fixed or drawout frames.

Selection Notes

Choose LV833661SP over the communicating version (LV8330xxSP) when the application only needs the coil to open or close the breaker on command, with no diagnostic or status reporting back to a monitoring system — the 100/130 V AC / 100/130 V DC rating still has to match the control circuit exactly. Response time is the same across the range (60 ms opening on all three frames, 65/80/90 ms closing by frame size).

Specification

Full specification

25 values · Last verified 30 Oct 2026

Main 5

Range MasterPact
Product or Component Type Voltage release
Device Application Control
Range compatibility Masterpact MasterPact MTZ2 circuit-breaker, Masterpact MasterPact MTZ3 circuit-breaker, Masterpact MasterPact MTZ1 circuit-breaker
Voltage release type Closing coil, Opening coil

Complementary 7

[Un] voltage power supply 100...130 V AC 50/60 Hz, 100...130 V DC
Threshold tripping voltage 0.7...1.1 Un on opening, 0.85...1.1 Un on closing
Holding power consumption 4.5 W
Circuit breaker mounting mode Fixed/drawout
Maximum response time 60 ms on opening MasterPact MTZ1, 60 ms on opening MasterPact MTZ2, 60 ms on opening MasterPact MTZ3, 65 ms on closing MasterPact MTZ1, 80 ms on closing MasterPact MTZ2, 90 ms on closing MasterPact MTZ3
Provided equipment 1 instruction sheet
Offer type Spare part

Contractual warranty 1

Warranty (in months) 18
Show all 25 specifications ↓ Show less ↑12 more values in Identification, Logistics.

Identification 7

Part number LV833661SP
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480932533

Logistics 5

Country of origin US
Shipping weight 0.237 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV833661SP

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LV833661SP

Which supply voltage is LV833661SP rated for?

The rated operational voltage of LV833661SP is 100–130 – 100–130 V DC.

What is the HS code of LV833661SP for customs?

The tariff (HS) code on file for LV833661SP is 853890.

What is the EAN of LV833661SP?

The EAN (GTIN) of LV833661SP is 3606480932533.

Where does LV833661SP ship from, and how fast?

LV833661SP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
