Schneider Electric LV833622SP MasterPact MTZ1 95mm Pitch Spreader Set 3P Air Circuit Breaker Accessory

% $-335.43

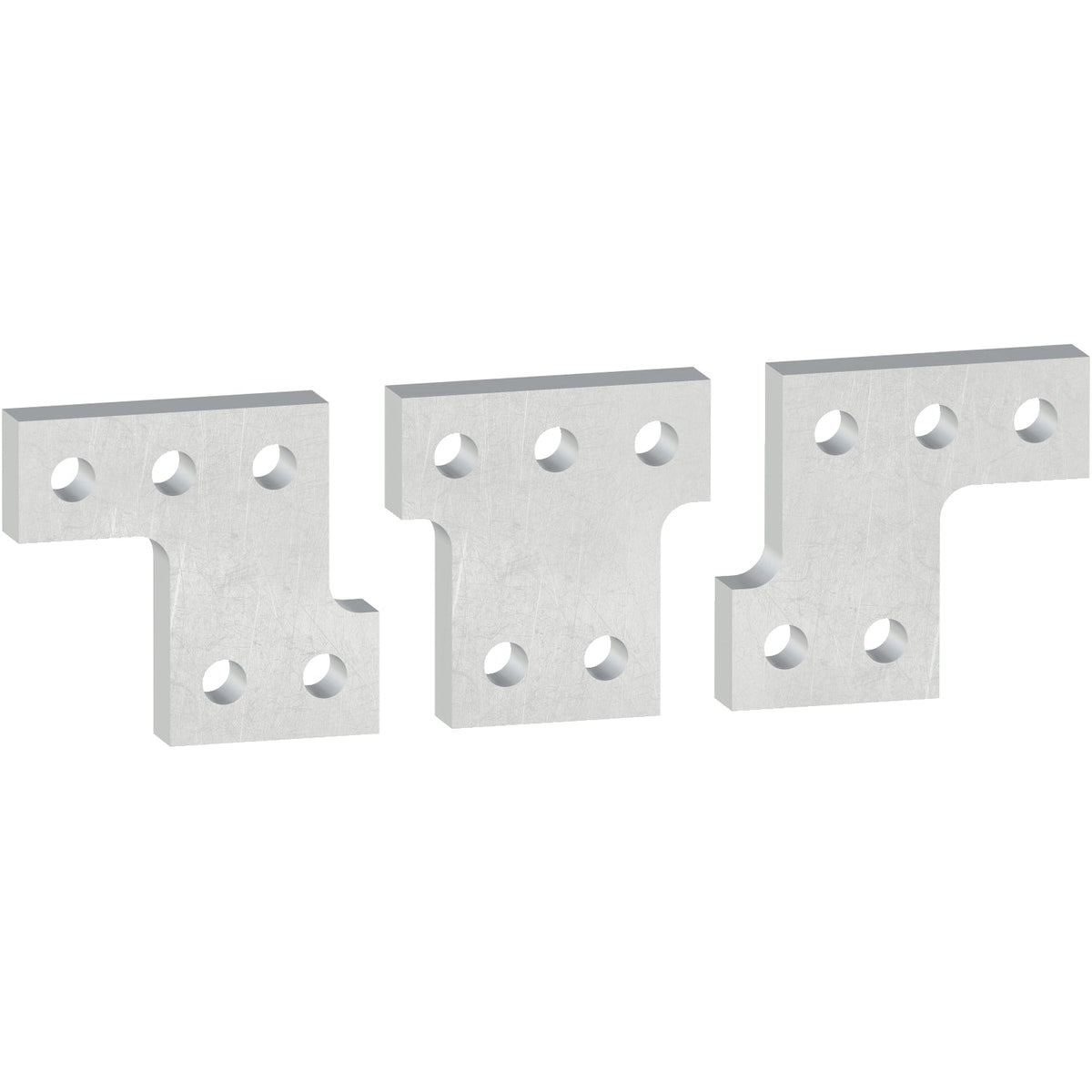

Schneider Electric LV833622SP MasterPact MTZ1 95 mm pitch spreader set, 3-pole
Schneider Electric LV833622SP MasterPact MTZ1 95 mm pitch spreader set, 3-pole

Schneider Electric LV833622SP MasterPact MTZ1 95mm Pitch Spreader Set 3P Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833622SP
Catalog No: LV833622SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$335.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833622SP is a 95 mm pitch spreader set for 3-pole MasterPact MTZ1 air circuit breakers, giving a flat busbar connection at the breaker's front or rear terminals on fixed or drawout frames across the MTZ1 current range from 250 A to 1600 A.

Technical Specifications

Reference LV833622SP
Brand Schneider Electric
Range MasterPact
Product Type Spreader
Accessory Category Connection accessory
Range Compatibility MasterPact MTZ1 circuit breaker
Poles 3P
Mounting Mode Drawout / fixed
Location of Connection Front / rear
Connection Position Horizontal
[In] Rated Current Range 250 A, 630 A, 800 A, 1000 A, 1250 A, 1600 A
Connection Pitch 95 mm
Offer Type Spare part
Packaging 4 per package

Selection Notes

LV833622SP is a 3-pole set, so a 4-pole MTZ1 breaker needs an extra single-pole spreader bar alongside it. The 95 mm pitch and horizontal connection position must match the switchboard's busbar layout before ordering — a different pitch or a vertical connection calls for a different spreader reference entirely.

Technical Details

Short Description
Schneider Electric LV833622SP 95 mm pitch spreader set, 3-pole, MasterPact MTZ1, front/rear connection.
Mounting Type
Fixed / drawout
Catalog No
LV833622SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ1 95mm Spreader Set
Tariff Code
853890
