Schneider Electric LV833210SP MasterPact MTZ2/MTZ3 Interlocking Rod Set Air Circuit Breaker Accessory

% $-138.63
Schneider Electric LV833210SP MasterPact MTZ2/MTZ3 mechanical interlocking rod set
Schneider Electric LV833210SP MasterPact MTZ2/MTZ3 mechanical interlocking rod set

Schneider Electric LV833210SP MasterPact MTZ2/MTZ3 Interlocking Rod Set Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833210SP
Catalog No: LV833210SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$138.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

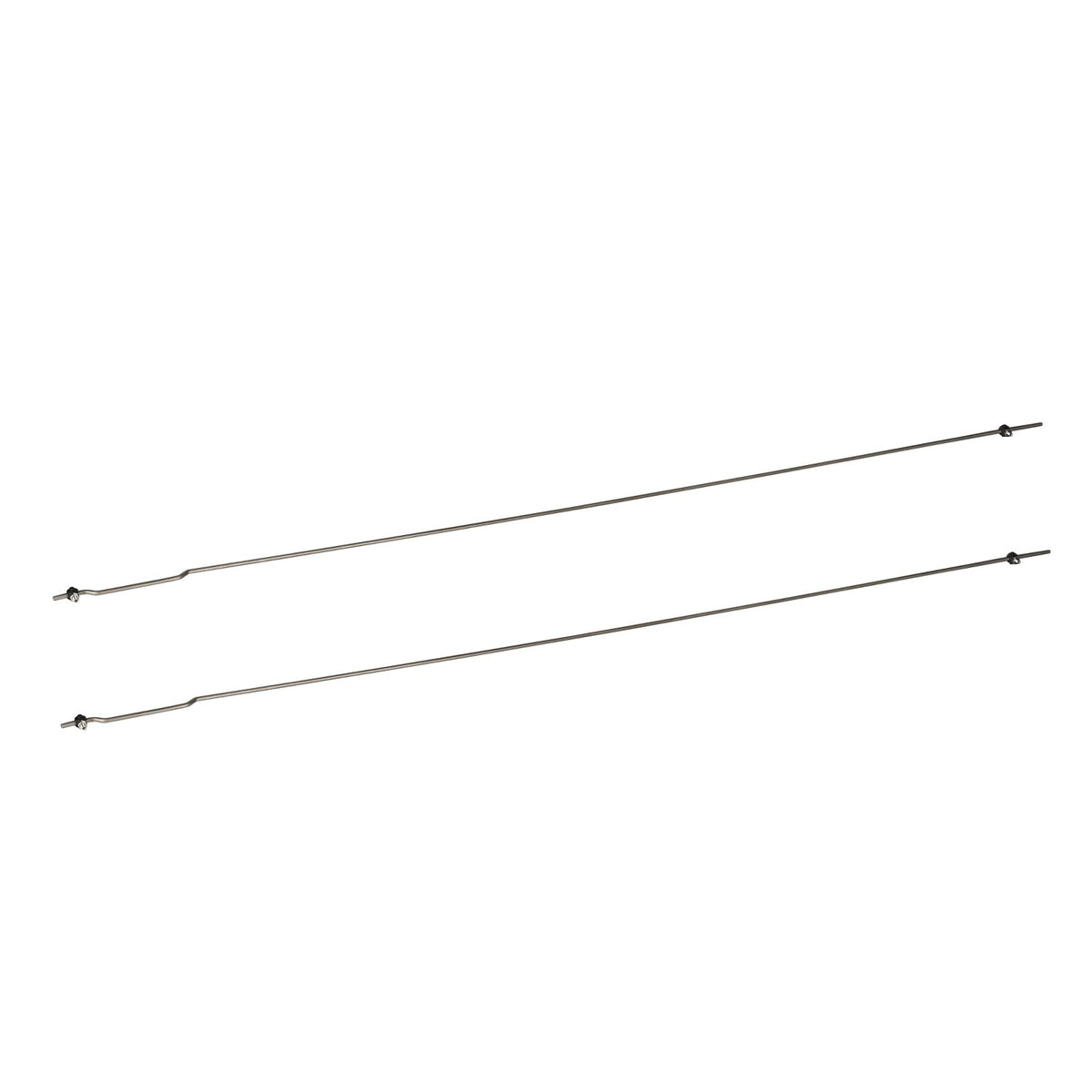

The Schneider Electric LV833210SP is a mechanical interlocking rod set — one set of two rods — for MasterPact MTZ2 and MTZ3 air circuit breakers, mounting directly on the locking rods of two chassis to couple their positions so only one breaker can be closed at a time.

Technical Specifications

Reference LV833210SP
Brand Schneider Electric
GTIN 3606481173232
Range MasterPact
Product Type Rod interlock
Accessory Category Locking accessory
Range Compatibility MasterPact MTZ2, MTZ3
Mechanical Interlocking With mechanical interlocking
Mounting Support Direct mounting on locking rods
Mounting Mode Chassis
Type of Coupling 2 devices
Key Locking Position On the right
Locking Options Without keylocks
Offer Type Spare part
Packaging 30 per package, 120 per carton

Selection Notes

LV833210SP is specific to MTZ2 and MTZ3 chassis — it will not fit an MTZ1 frame, which uses the smaller cable- or rod-based fixture kits (LV833203SP/LV833204SP) instead. It ships without keylocks, so a keylock accessory must be ordered separately if the interlock also needs to be key-secured in the right-hand position.

Technical Details

Short Description
Schneider Electric LV833210SP mechanical interlocking rod set, 2 rods, MasterPact MTZ2/MTZ3 chassis.
Mounting Type
Chassis
Catalog No
LV833210SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ2/MTZ3 Interlocking Rod Set
Tariff Code
853890
