Schneider Electric LV833201SP MasterPact MTZ1 Cable Interlock Fixture Drawout Air Circuit Breaker Accessory

% $-272.92

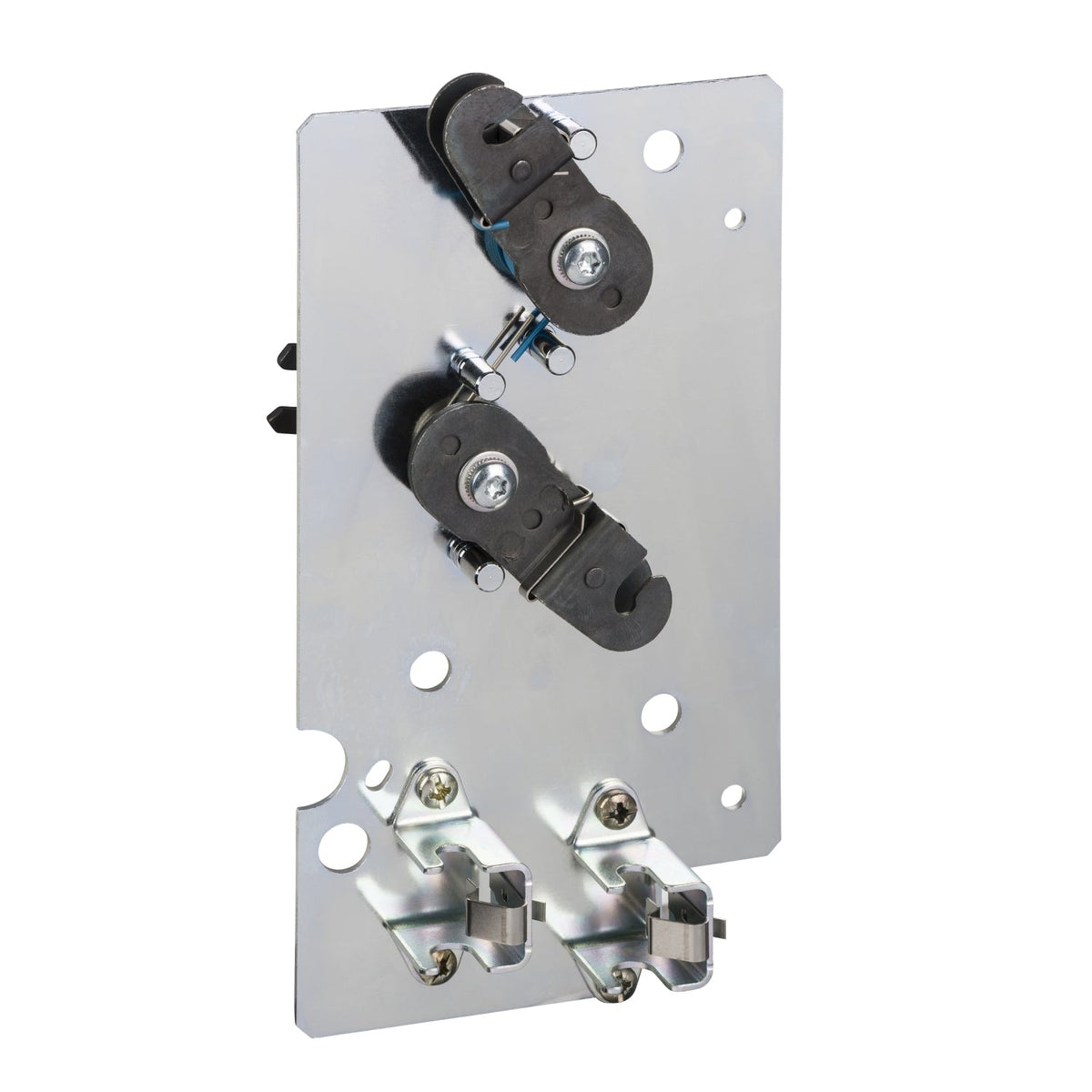

Schneider Electric LV833201SP MasterPact MTZ1 drawout cable interlocking adaptation fixture
Schneider Electric LV833201SP MasterPact MTZ1 drawout cable interlocking adaptation fixture

Schneider Electric LV833201SP MasterPact MTZ1 Cable Interlock Fixture Drawout Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833201SP
Catalog No: LV833201SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$272.92

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833201SP is a cable interlocking adaptation fixture for drawout MasterPact MTZ1 air circuit breakers, mechanically linking two breakers by cable so only one of the two sources can ever be closed at the same time in a changeover configuration. It is operated remotely and fits only the mounting mode — fixed or drawout — it is specified for.

Technical Specifications

Reference LV833201SP
Brand Schneider Electric
Range MasterPact
Product Type Cable adaptation fixture
Accessory Category Interlocking accessory
Range Compatibility MasterPact MTZ1
Mounting Mode Drawout
Source-Changeover Interlock Interlocking 2 sources by cable
Interlocked Device MasterPact MTZ1
Control Type Remote control
Offer Type Spare part
Packaging 12 per package

Selection Notes

LV833201SP is built for drawout MTZ1 breakers only — the cable geometry and fixture mounting points differ between fixed and drawout frames, so it cannot be swapped onto the other mounting mode. It covers a 2-source interlock; a 3-source changeover scheme needs the matching 3-source interlock kit instead.

Technical Details

Short Description
Schneider Electric LV833201SP cable interlocking adaptation fixture, drawout MasterPact MTZ1, 2-source.
Mounting Type
Drawout
Catalog No
LV833201SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ1 Cable Interlock Fixture (Drawout)
Tariff Code
853890
