Schneider Electric LV833179SP MasterPact MTZ1 MCH Motor Mechanism 277-480V AC Air Circuit Breaker Accessory

% $-487.05

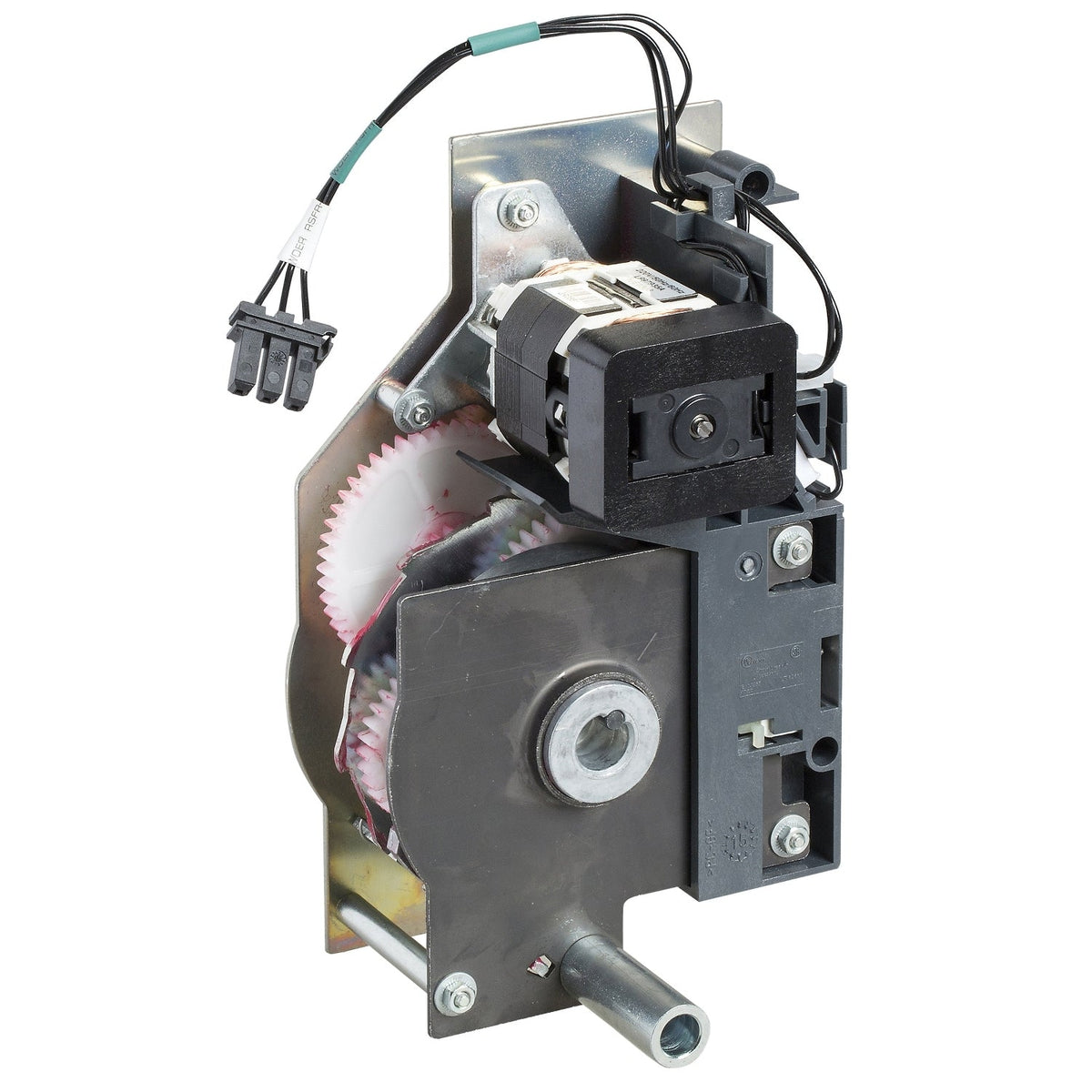

Schneider Electric LV833179SP MasterPact MTZ1 MCH motor mechanism - 277-480V AC
Schneider Electric LV833179SP MasterPact MTZ1 MCH motor mechanism - 277-480V AC

Schneider Electric LV833179SP MasterPact MTZ1 MCH Motor Mechanism 277-480V AC Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833179SP
Catalog No: LV833179SP
Tariff Code (HS): 853890
Rated Voltage: 277-415 V AC or 440-480 V AC 50/60 Hz
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$487.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833179SP is an MCH electric motor mechanism for MasterPact MTZ1 air circuit breakers, charging the closing springs automatically on a 277-415 V AC or 440-480 V AC 50/60 Hz control supply so the breaker can be closed and re-closed remotely without a manual handle operation each time.

Technical Specifications

Reference LV833179SP
Brand Schneider Electric
Range MasterPact
Device Short Name MCH
Product Type Motor mechanism
Range Compatibility MasterPact MTZ1
Control Type Standard
[Uc] Control Circuit Voltage 277-415 V AC or 440-480 V AC 50/60 Hz
Threshold Tripping Voltage 0.85-1.1 Un
Max. Power Consumption 180 VA
Overcurrent Protection 2-3 x In, 0.1 s
Max. Charging Time 3 s
Max. Operating Frequency <= 3 cycles per minute
Provided Contact Limit switch contact at 240 V, 10 A
Offer Type Spare part
Packaging 16 per package

Selection Notes

Match LV833179SP to the control circuit voltage already run to the MTZ1 cubicle — this mechanism accepts only 277-415 V AC or 440-480 V AC 50/60 Hz and will not operate (or may be damaged) on a different control voltage band. The 3 s maximum charging time and 3 cycles/minute operating frequency set the fastest the breaker can be remotely re-closed in a reclosing or changeover sequence.

Technical Details

Short Description
Schneider Electric LV833179SP MCH motor mechanism, 277-415 V AC or 440-480 V AC 50/60 Hz, for MasterPact MTZ1 air circuit breakers.
Rated Voltage (VAC)
277-415 V AC or 440-480 V AC 50/60 Hz
Catalog No
LV833179SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ1 MCH Motor Mechanism
Tariff Code
853890
