Schneider Electric LV833170SP MasterPact MTZ Chassis Position Contact CE/CD/CT Air Circuit Breaker Accessory

% $-57.80

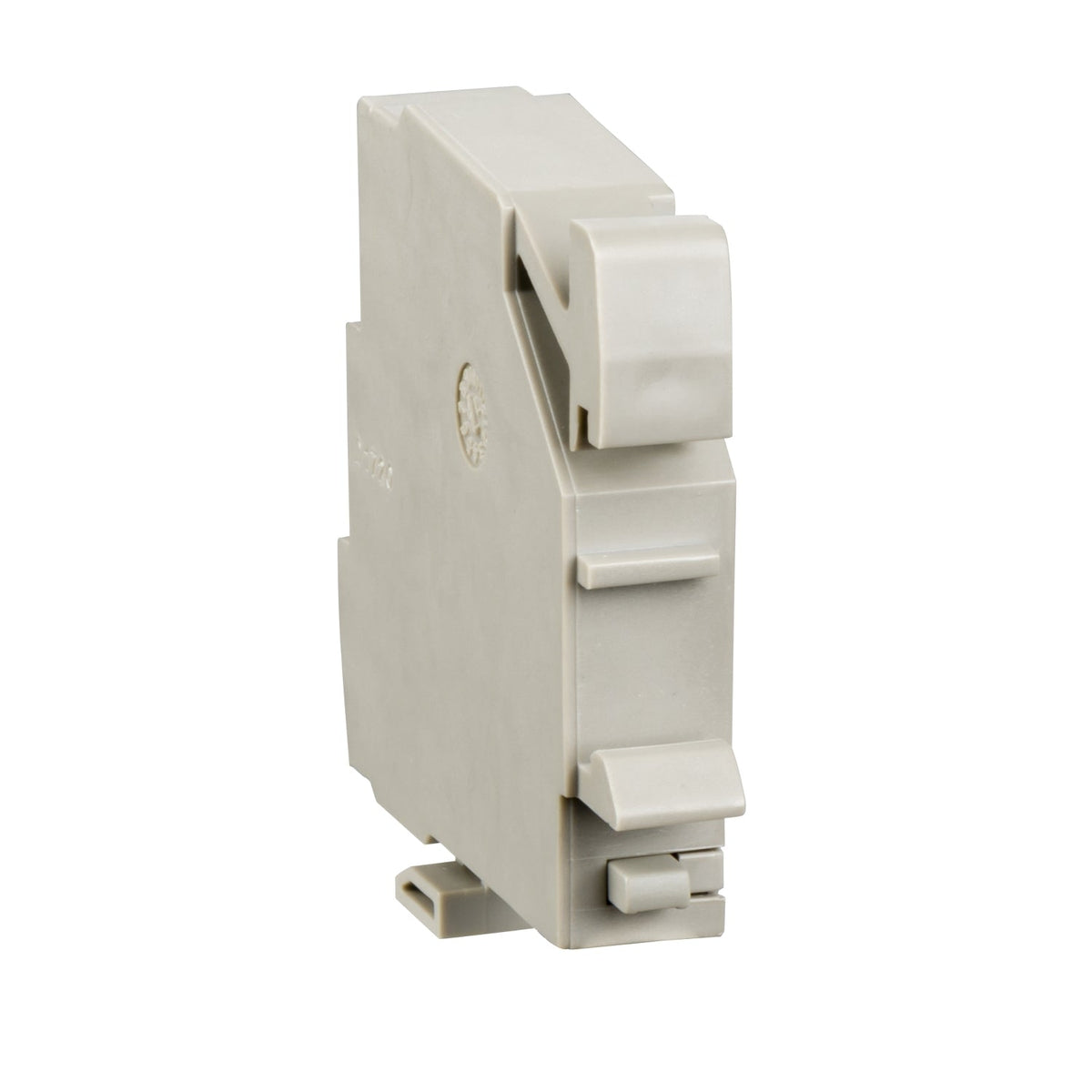

Schneider Electric LV833170SP MasterPact MTZ drawout chassis position contact CE/CD/CT
Schneider Electric LV833170SP MasterPact MTZ drawout chassis position contact CE/CD/CT

Schneider Electric LV833170SP MasterPact MTZ Chassis Position Contact CE/CD/CT Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833170SP
Catalog No: LV833170SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$57.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833170SP is a chassis position auxiliary contact for drawout MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, signalling the connected (CE), disconnected (CD) or test (CT) position of the breaker in its cradle through one normally open / normally closed contact rated up to 690 V AC.

Technical Specifications

Reference LV833170SP
Brand Schneider Electric
GTIN 3606481186256
Range MasterPact
Device Short Name CE / CD / CT
Product Type Auxiliary contact (chassis position)
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Signal Contacts Composition 1 NO/NC
Mounting Mode Drawout
Auxiliary Contacts Operation Test, disconnected, connected position
[Ie] Rated Operational Current AC-12: 6 A at 690 V AC, 8 A at 240/380/480 V AC; DC-12: 0.3 A at 250 V DC, 0.8 A at 125 V DC, 2.5 A at 24/48 V DC
Minimum Load 100 mA at 24 V
Offer Type Spare part
Packaging 80 per package

Selection Notes

LV833170SP only applies to drawout MTZ frames, since the CE/CD/CT function reports the chassis position that a fixed breaker does not have. The 1 NO/NC contact and 690 V AC/250 V DC rating let it feed a PLC input or interlock circuit directly without an interposing relay in most control-voltage designs.

Technical Details

Short Description
Schneider Electric LV833170SP chassis position contact (CE/CD/CT), drawout MasterPact MTZ1/2/3, 1 NO/NC.
Mounting Type
Drawout
Catalog No
LV833170SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Chassis Position Contact (CE/CD/CT)
Tariff Code
853890
