Schneider Electric LV833118 MasterPact MTZ1 Wiring Kit for MN/MX/XF Coils Air Circuit Breaker Accessory

% $-17.40

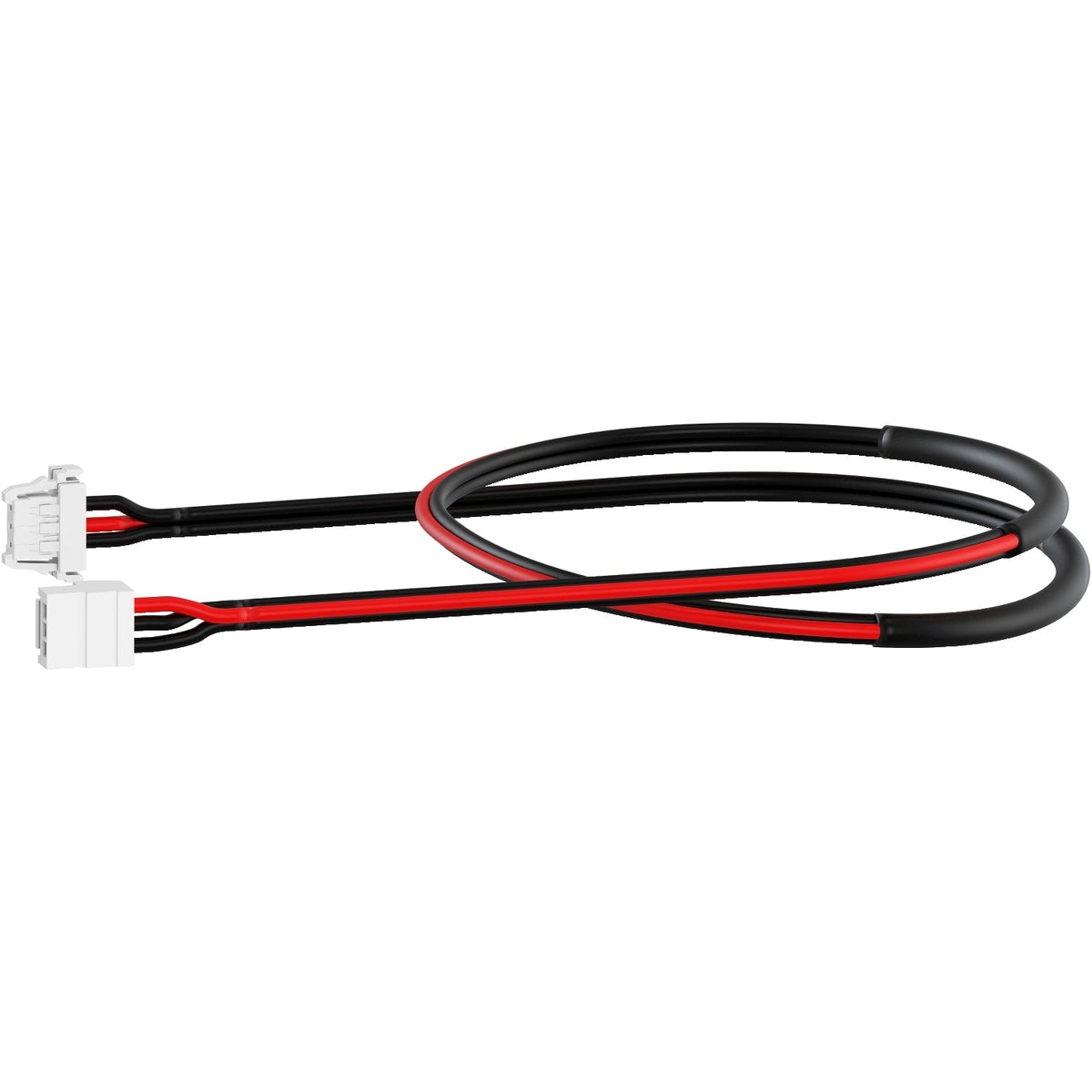

Schneider Electric LV833118 MasterPact MTZ1 wiring kit for MN/MX/XF coils
Schneider Electric LV833118 MasterPact MTZ1 wiring kit for MN/MX/XF coils

Schneider Electric LV833118 MasterPact MTZ1 Wiring Kit for MN/MX/XF Coils Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833118
Catalog No: LV833118
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$17.40

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833118 is an internal wiring kit for MasterPact MTZ1 air circuit breakers, supplying the cable connections between the breaker's terminal block and the MN undervoltage release or the MX/XF coil when either is fitted with diagnostics and communication capability. It is a connection accessory ordered together with the coil rather than a standalone repair part on its own.

Technical Specifications

Reference LV833118
Brand Schneider Electric
GTIN 3606480816345
Range MasterPact
Product Type Wiring cable
Accessory Category Connection accessory
Product Destination Circuit breaker
Localisation on Device Terminal block
Location of Connection Top connector
Packaging 100 per package

Selection Notes

LV833118 is specific to the MTZ1 frame and to coils that carry diagnostics/communication functions — it is the connection accessory, not the coil itself, so it is ordered alongside a communicating MN, MX or XF release rather than as a standalone repair part. Confirm the breaker is MTZ1 before ordering, since MTZ2/MTZ3 use a different internal wiring run.

Technical Details

Short Description
Schneider Electric LV833118 internal wiring kit, MasterPact MTZ1, for MN/MX/XF diagnostics and communication coils.
Catalog No
LV833118
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ1 Coil Wiring Kit
Tariff Code
853890
