Schneider Electric LV833098SP MasterPact MTZ1 3-Wire Terminal Block Drawout Air Circuit Breaker Accessory

% $-24.63

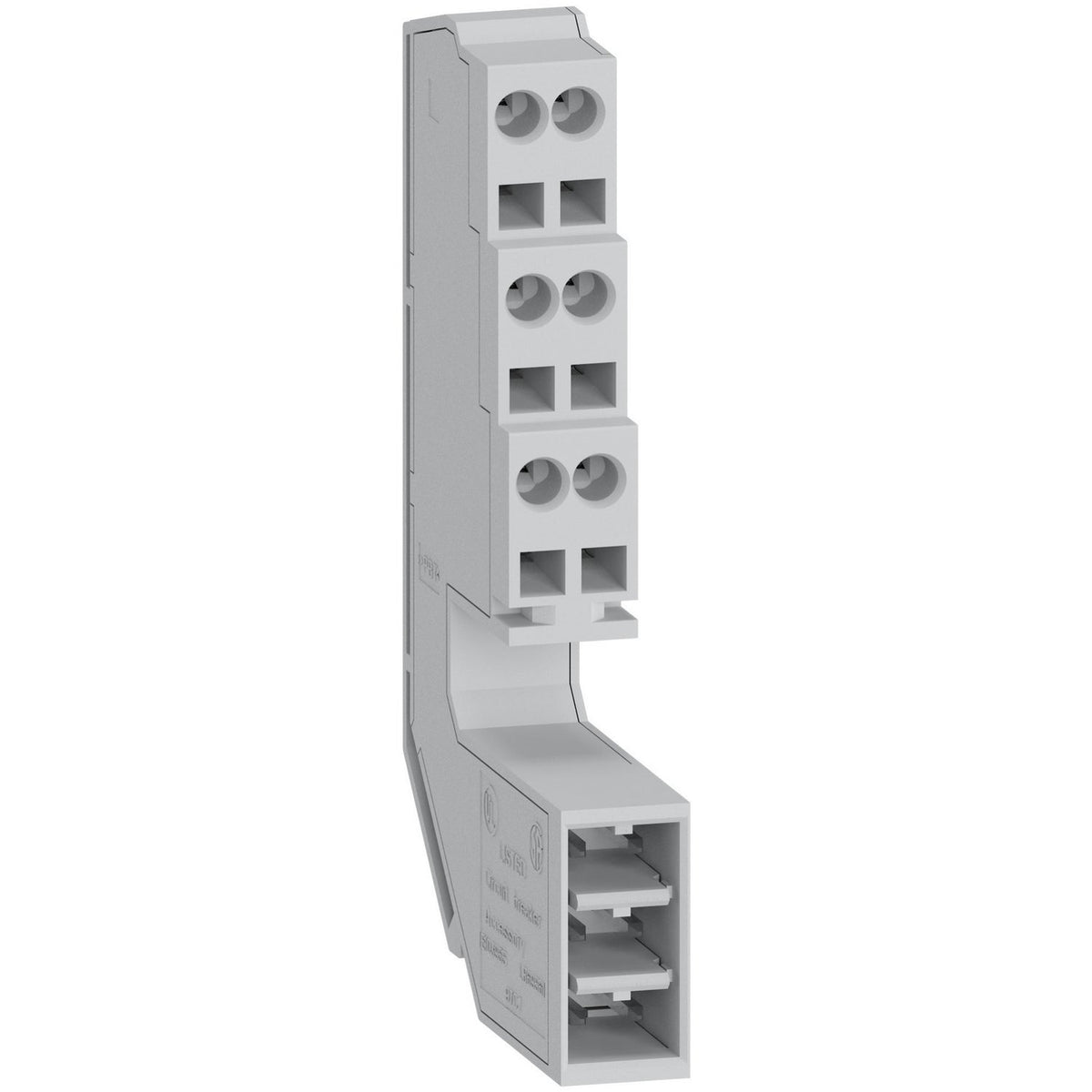

Schneider Electric LV833098SP MasterPact MTZ drawout 3-wire terminal block
Schneider Electric LV833098SP MasterPact MTZ drawout 3-wire terminal block

Schneider Electric LV833098SP MasterPact MTZ1 3-Wire Terminal Block Drawout Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833098SP
Catalog No: LV833098SP
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV833098SP is a 3-wire terminal block for secondary wiring on drawout MasterPact MTZ MTZ1 air circuit breakers, giving a fixed, labelled connection point for control and auxiliary circuits instead of splicing wires directly onto the breaker's own accessory terminals during panel build.

Technical Specifications

Reference LV833098SP
Brand Schneider Electric
GTIN 3606481186232
Range MasterPact
Product Type Terminal block
Device Application Secondary wiring
Range Compatibility MasterPact MTZ MTZ1
Quantity 1 piece
Mounting Mode Drawout
Wiring Mode 3 wires
Offer Type Spare part
Packaging 80 per package

Selection Notes

LV833098SP is keyed to drawout frames specifically — a drawout terminal block will not seat correctly on a fixed breaker's secondary disconnect and vice versa, so match this part to the breaker's mounting mode before ordering. The 3-wire layout covers the typical control-circuit wiring count for a single accessory (for example one voltage release or one auxiliary contact) on this frame.

Technical Details

Short Description
Schneider Electric LV833098SP 3-wire terminal block, drawout MasterPact MTZ MTZ1, secondary wiring.
Mounting Type
Drawout
Catalog No
LV833098SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ Terminal Block (Drawout)
Tariff Code
853890
