Part number
LV833038SP
$173.94 On request Dispatch — · From TürkiyeGet a Quote

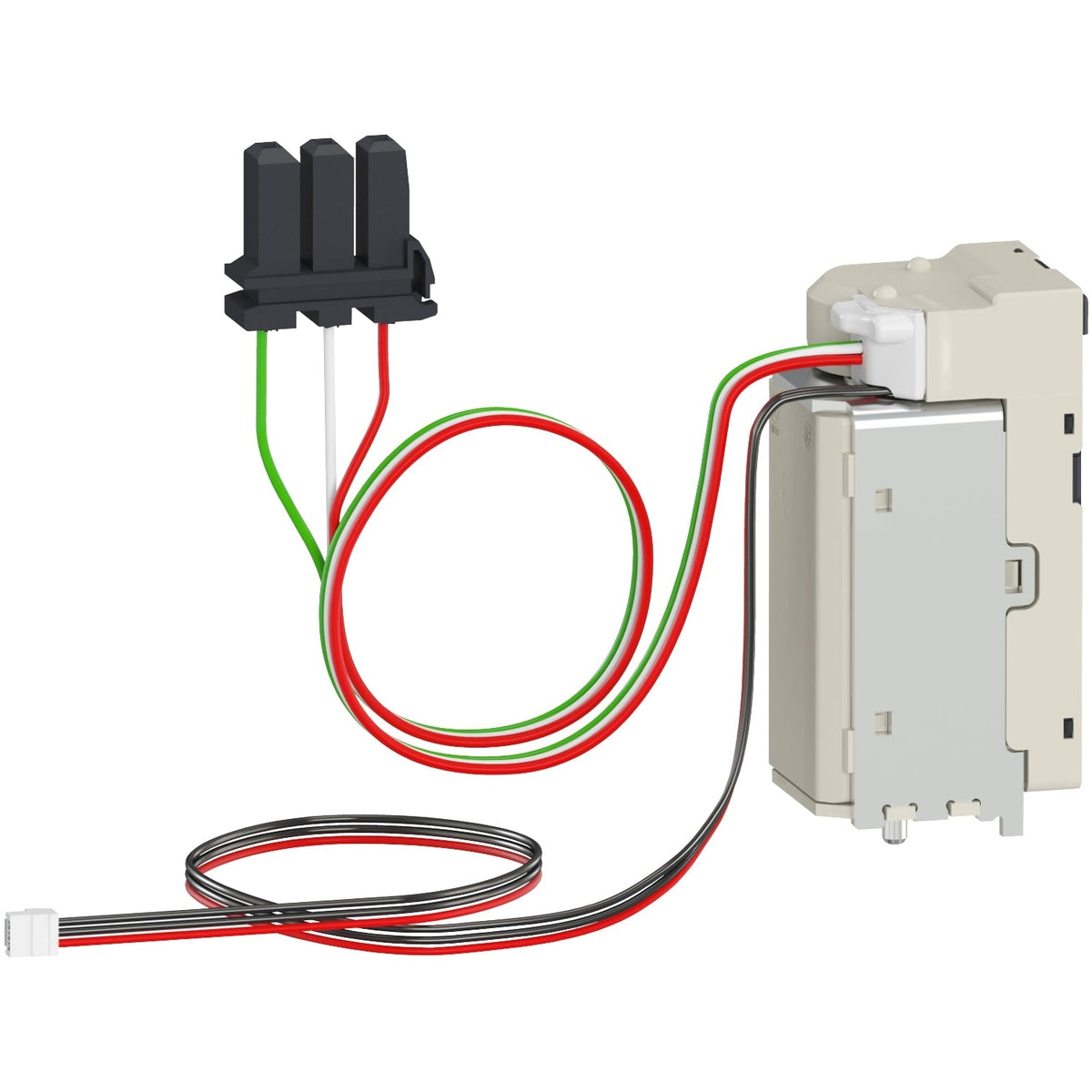

Schneider Electric LV833038SP MasterPact MTZ XF/MX Comm Coil 380-480V AC Air Circuit Breaker Accessory

Schneider Electric LV833038SP communicating XF/MX voltage release, 380/480 V AC, for MasterPact MTZ1/2/3.

Rated operational voltage
380–480 V AC
Communication
Diagnostics and status signalling
EAN
3606480932496
Description

About the LV833038SP

The Schneider Electric LV833038SP is a communicating XF/MX voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 380/480 V AC control supply. It reports coil-powered, ready-to-close/open and error states back to the switchboard monitoring system, and mounts on both fixed and drawout frames.

Selection Notes

Pick LV833038SP over the standard (non-communicating) XF/MX coil when the switchboard needs the coil-powered, ready-to-close/open and error signals for remote diagnostics — the 380/480 V AC rating must match the control circuit already feeding the breaker, since the coil only accepts that voltage window. Response time grows with frame size on closing (65/80/90 ms for MTZ1/MTZ2/MTZ3 respectively), which matters when this coil is part of a protection scheme with a defined operating time.

Specification

Full specification

27 values · Last verified 30 Oct 2026

Main 5

Range MasterPact
Product or Component Type Voltage release
Device Application Control
Range compatibility Masterpact MasterPact MTZ1 circuit-breaker, Masterpact MasterPact MTZ2 circuit-breaker, Masterpact MasterPact MTZ3 circuit-breaker
Voltage release type Closing coil, Opening coil

Complementary 9

Control Type Communicating
Signalling function Electrical push-button activated, Ready to close or open, Error, Coil powered
[Un] voltage power supply 380/480 V AC 50/60 Hz
Threshold tripping voltage 0.7...1.1 Un on opening, 0.85...1.1 Un on closing
Holding power consumption 4.5 VA
Circuit breaker mounting mode Fixed/drawout
Maximum response time 60 ms on opening MasterPact MTZ1, 60 ms on opening MasterPact MTZ2, 60 ms on opening MasterPact MTZ3, 65 ms on closing MasterPact MTZ1, 80 ms on closing MasterPact MTZ2, 90 ms on closing MasterPact MTZ3
Provided equipment 1 instruction sheet
Offer type Spare part

Contractual warranty 1

Warranty (in months) 18
Show all 27 specifications ↓ Show less ↑12 more values in Identification, Logistics.

Identification 7

Part number LV833038SP
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480932496

Logistics 5

Country of origin US
Shipping weight 0.318 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV833038SP

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LV833038SP

Which supply voltage is LV833038SP rated for?

The rated operational voltage of LV833038SP is 380–480 V AC.

What is the HS code of LV833038SP for customs?

The tariff (HS) code on file for LV833038SP is 853890.

What is the EAN of LV833038SP?

The EAN (GTIN) of LV833038SP is 3606480932496.

Where does LV833038SP ship from, and how fast?

LV833038SP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
