Schneider Electric LV833036SP MasterPact MTZ XF/MX Comm Coil 200-250V AC Air Circuit Breaker Accessory

% $-178.85
Schneider Electric LV833036SP MasterPact MTZ XF/MX communicating voltage release coil - 200/250 V AC / 200/250 V DC
Schneider Electric LV833036SP MasterPact MTZ XF/MX communicating voltage release coil - 200/250 V AC / 200/250 V DC

Schneider Electric LV833036SP MasterPact MTZ XF/MX Comm Coil 200-250V AC Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833036SP
Catalog No: LV833036SP
Tariff Code (HS): 853890
Rated Voltage: 200/250 V AC / 200/250 V DC
Communication: Diagnostics and status signalling
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$178.85

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

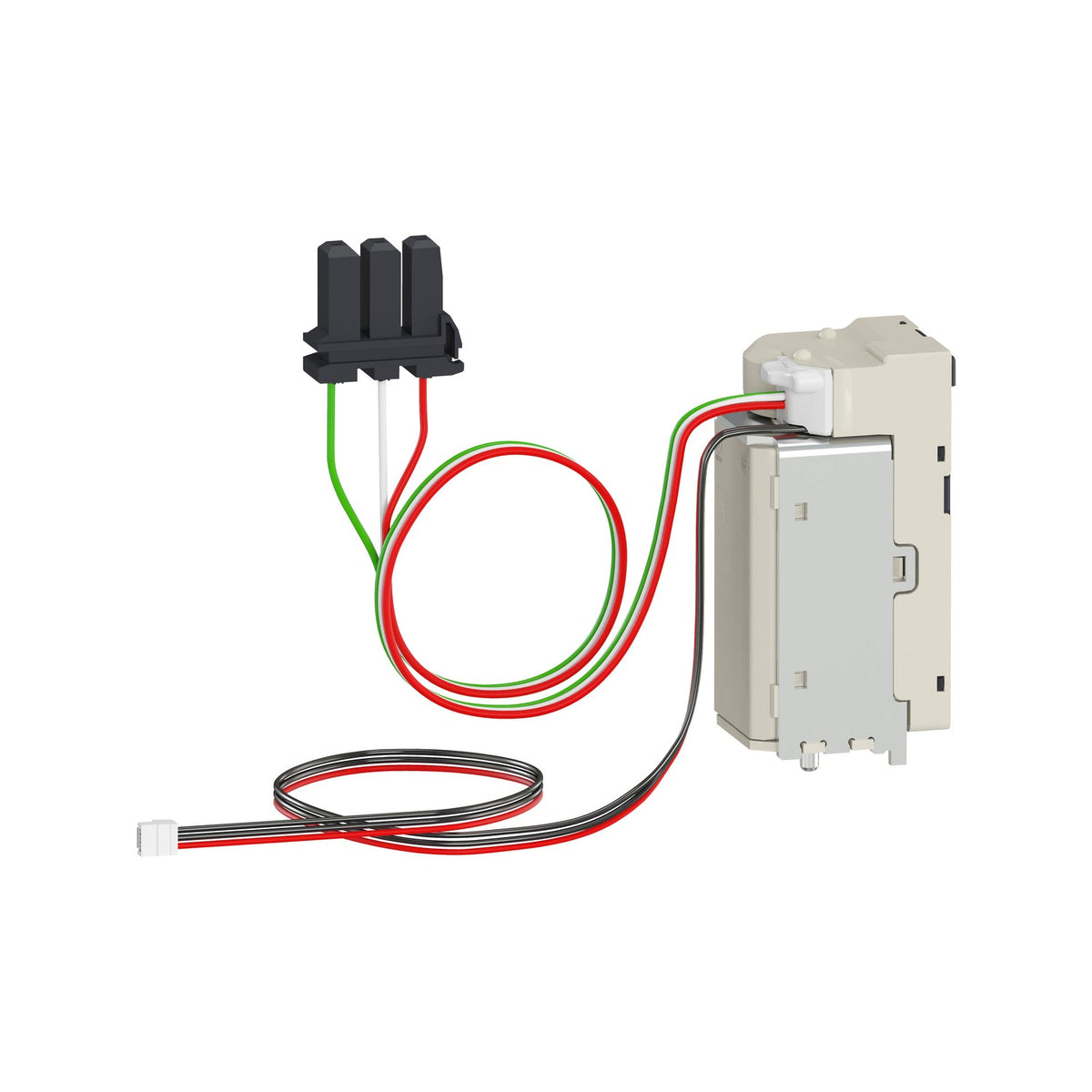

The Schneider Electric LV833036SP is a communicating XF/MX voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 200/250 V AC / 200/250 V DC control supply. It reports coil-powered, ready-to-close/open and error states back to the switchboard monitoring system, and mounts on both fixed and drawout frames.

Technical Specifications

Reference LV833036SP
Brand Schneider Electric
GTIN 3606480932472
Range MasterPact
Product Type Voltage release (closing and opening coil)
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Control Type Communicating, with diagnostics
Signalling Function Coil powered, ready to close/open, push-button activated, error
[Un] Voltage Power Supply 200/250 V AC / 200/250 V DC, 50/60 Hz
Threshold Tripping Voltage 0.7-1.1 Un on opening, 0.85-1.1 Un on closing
Holding Power Consumption 4.5 W
Circuit Breaker Mounting Mode Fixed / drawout
Max. Response Time (Opening) 60 ms on MTZ1, MTZ2, MTZ3
Max. Response Time (Closing) 65 ms MTZ1, 80 ms MTZ2, 90 ms MTZ3
Offer Type Spare part
Packaging 12 per package

Selection Notes

Pick LV833036SP over the standard (non-communicating) XF/MX coil when the switchboard needs the coil-powered, ready-to-close/open and error signals for remote diagnostics — the 200/250 V AC / 200/250 V DC rating must match the control circuit already feeding the breaker, since the coil only accepts that voltage window. Response time grows with frame size on closing (65/80/90 ms for MTZ1/MTZ2/MTZ3 respectively), which matters when this coil is part of a protection scheme with a defined operating time.

Technical Details

Short Description
Schneider Electric LV833036SP communicating XF/MX voltage release, 200/250 V AC / 200/250 V DC, for MasterPact MTZ1/2/3.
