Schneider Electric LV833035SP MasterPact MTZ XF/MX Comm Coil 100-130V AC Air Circuit Breaker Accessory

% $-170.19
Schneider Electric LV833035SP MasterPact MTZ XF/MX communicating voltage release coil - 100/130 V AC / 100/130 V DC
Schneider Electric LV833035SP MasterPact MTZ XF/MX communicating voltage release coil - 100/130 V AC / 100/130 V DC

Schneider Electric LV833035SP MasterPact MTZ XF/MX Comm Coil 100-130V AC Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV833035SP
Catalog No: LV833035SP
Tariff Code (HS): 853890
Rated Voltage: 100/130 V AC / 100/130 V DC
Communication: Diagnostics and status signalling
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$170.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

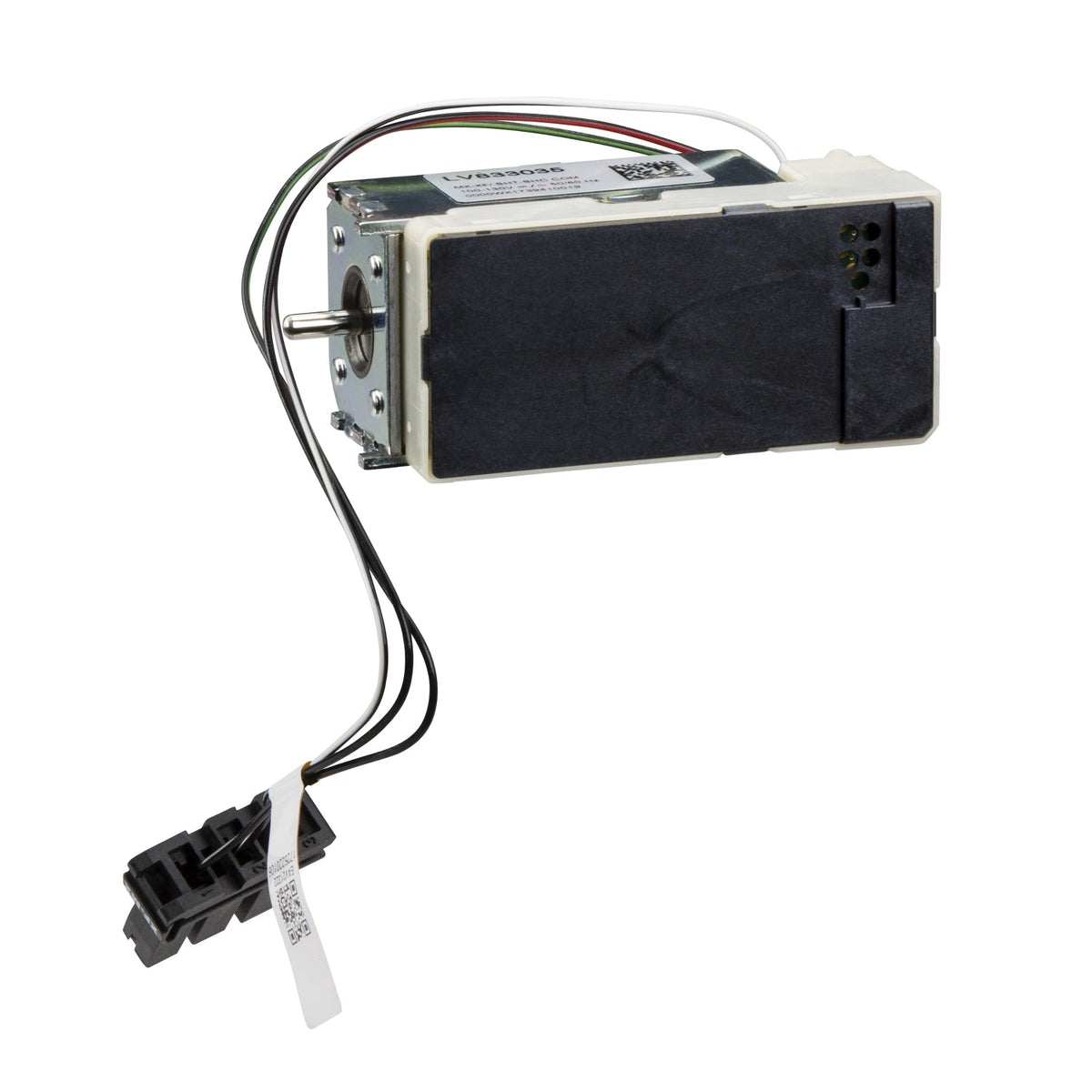

The Schneider Electric LV833035SP is a communicating XF/MX voltage release for MasterPact MTZ1, MTZ2 and MTZ3 air circuit breakers, wired for a 100/130 V AC / 100/130 V DC control supply. It reports coil-powered, ready-to-close/open and error states back to the switchboard monitoring system, and mounts on both fixed and drawout frames.

Technical Specifications

Reference LV833035SP
Brand Schneider Electric
GTIN 3606480932465
Range MasterPact
Product Type Voltage release (closing and opening coil)
Range Compatibility MasterPact MTZ1, MTZ2, MTZ3
Control Type Communicating, with diagnostics
Signalling Function Coil powered, ready to close/open, push-button activated, error
[Un] Voltage Power Supply 100/130 V AC / 100/130 V DC, 50/60 Hz
Threshold Tripping Voltage 0.7-1.1 Un on opening, 0.85-1.1 Un on closing
Holding Power Consumption 4.5 W
Circuit Breaker Mounting Mode Fixed / drawout
Max. Response Time (Opening) 60 ms on MTZ1, MTZ2, MTZ3
Max. Response Time (Closing) 65 ms MTZ1, 80 ms MTZ2, 90 ms MTZ3
Offer Type Spare part
Packaging 10 per package, 40 per carton

Selection Notes

Pick LV833035SP over the standard (non-communicating) XF/MX coil when the switchboard needs the coil-powered, ready-to-close/open and error signals for remote diagnostics — the 100/130 V AC / 100/130 V DC rating must match the control circuit already feeding the breaker, since the coil only accepts that voltage window. Response time grows with frame size on closing (65/80/90 ms for MTZ1/MTZ2/MTZ3 respectively), which matters when this coil is part of a protection scheme with a defined operating time.

Technical Details

Short Description
Schneider Electric LV833035SP communicating XF/MX voltage release, 100/130 V AC / 100/130 V DC, for MasterPact MTZ1/2/3.
Rated Voltage (VAC)
100/130 V AC / 100/130 V DC
Mounting Type
Fixed / drawout
Catalog No
LV833035SP
Delivery Date (Days)
30 days
Model Number
MasterPact MTZ XF/MX Communicating Voltage Release
Tariff Code
853890
