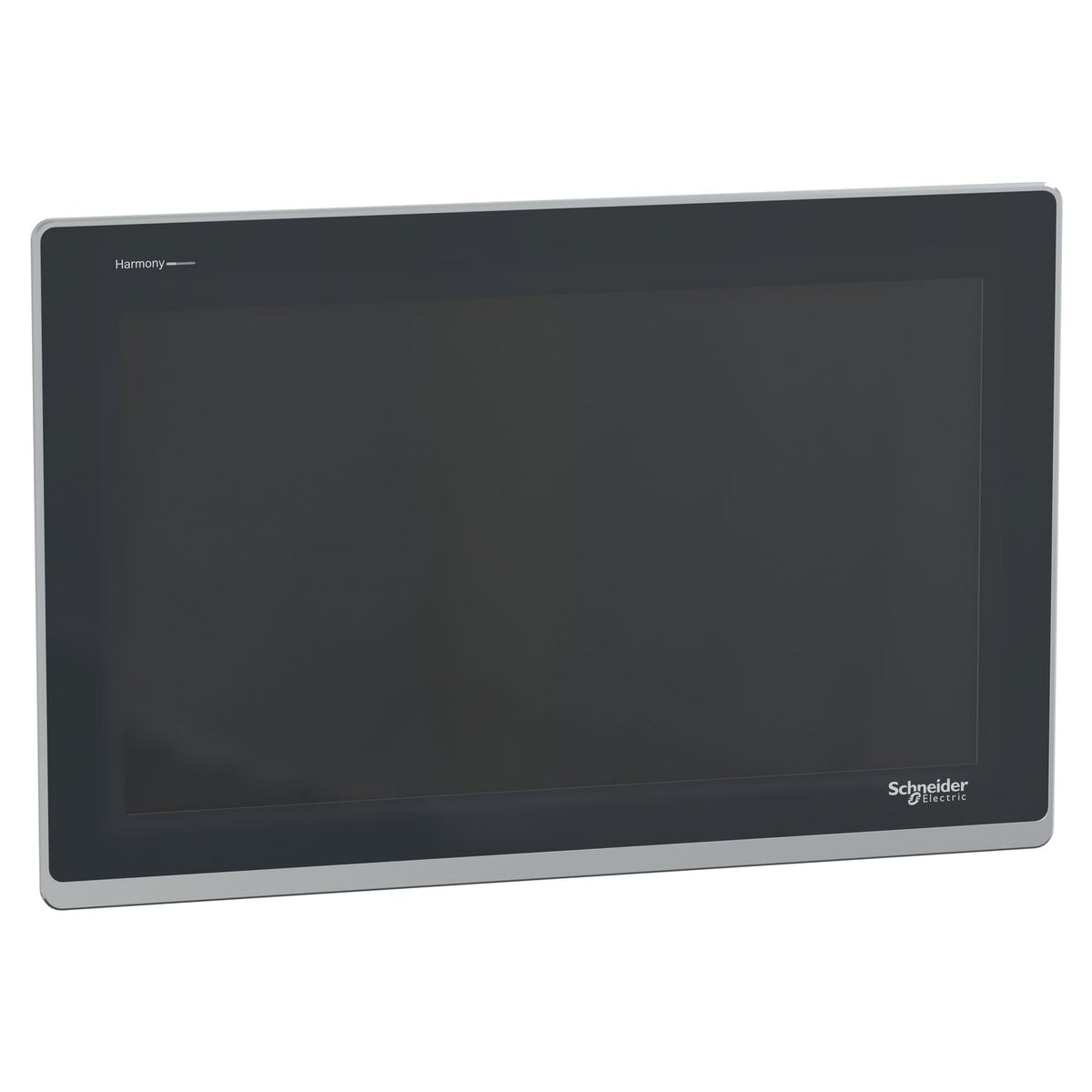

The Schneider Electric HMISTW6700 is a Harmony ST6 web touch panel with a 15.6-inch wide 1366x768 FWXGA colour display and a pre-installed HTML5 browser, built as an Ethernet-only agnostic HMI terminal with no serial COM port. It runs an ARM Cortex-A8 processor at 24 V DC, draws 18.5 W, and carries an IP65 front-panel rating.
Choose the 15.6-inch HMISTW6700 over the 10.1-inch model in the same STW range when the HTML5 Web HMI needs the largest available STW screen for dashboards or multi-pane layouts — both remain Ethernet-only with no COM port, and share the same ARM Cortex-A8 processor and 24 V DC supply. At 2.7 kg and a 394 x 250 mm cut-out it is the largest and heaviest panel in the ST6 Web line, fixed with 6 screws versus the smaller models' 4.
| Range of Product | Harmony ST6 |
|---|---|
| Product or Component Type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Memory description | 512 MB device memory, 512 MB backup memory, 128 kB user data memory |
| Display size | 15 inch |
|---|---|
| Display Type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display Resolution | 1366 x 768 pixels FWXGA |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours white |
| Brightness | 16 levels |
| Character font | ASCII, ASCII (European characters), Katakana |
| [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Power Consumption in W | 18.5 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady offline, Status LED green, steady operating, Status LED green, flashing operating, Status LED green, faded stand-by, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED red, flashing operating, Status LED red, off power supply (OFF) |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 USB 2.0 type Aback, 1 Ethernet - female RJ45bottom |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C, Built-in 10...90 % RH |
| Fixing mode | By 6 screws 1.6...5 mm thick panel UL 61010-2-201, By 6 screws IEC 61131-2, By 6 screws IEC 61000-6-2 |
| Enclosure Material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 394 x 250 mm panel cut dimension |
| Height | 10.6 in (268 mm) |
| Width | 16.2 in (412 mm) |
| Depth | 2.0 in (50 mm) |
| Net Weight | 6.0 lb(US) (2.7 kg) |
| Immunity to microbreaks | 10 ms |
|---|---|
| Standards | IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Product Certifications | CSA, CE, UKCA |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Part number | HMISTW6700 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489918118 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 2.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for HMISTW6700 is 852859.
The EAN (GTIN) of HMISTW6700 is 3606489918118.
HMISTW6700 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
