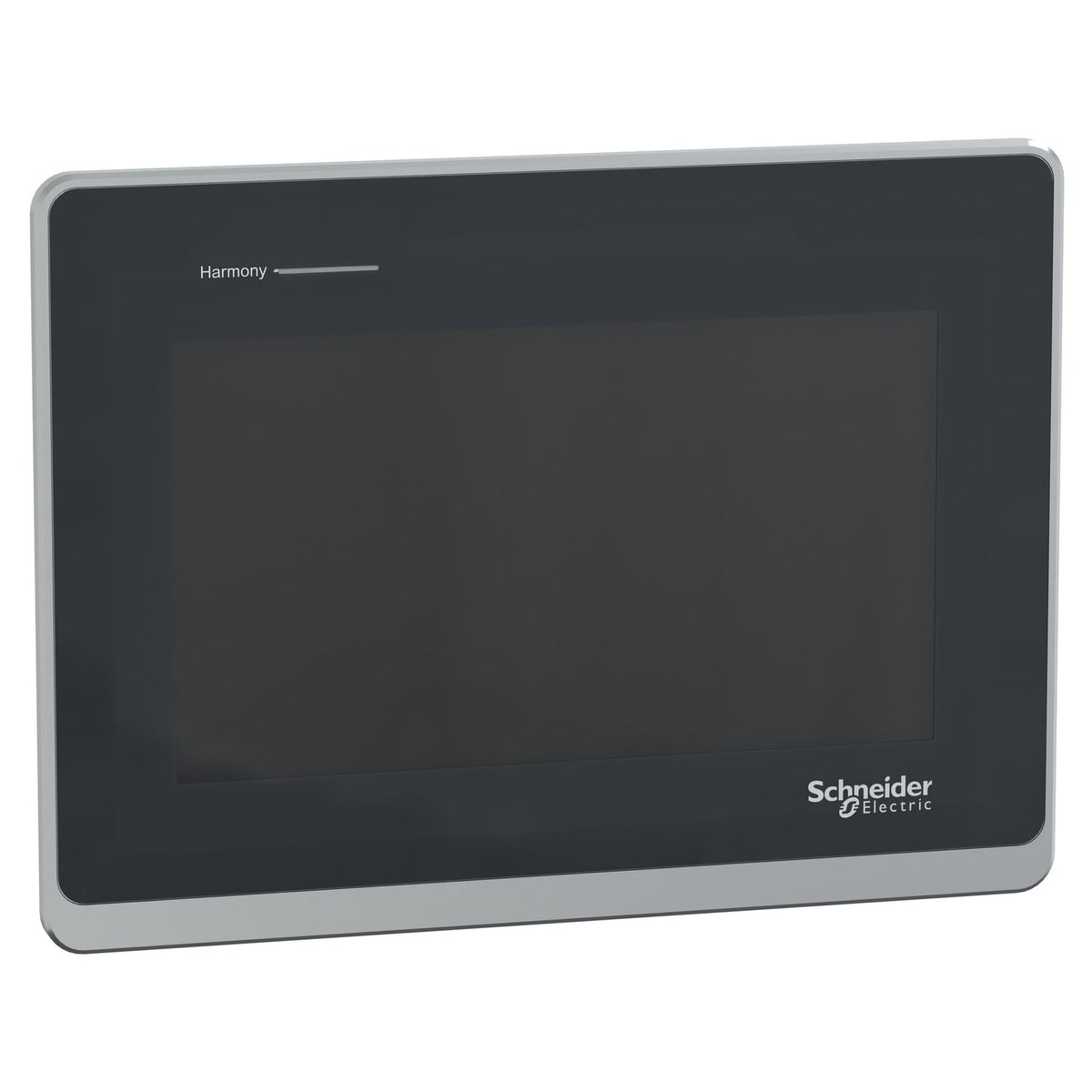

Schneider Electric HMISTW6400 Harmony ST6 7-inch Wide Touch Panel Ethernet HTML5 HMI Operator Panel

The Schneider Electric HMISTW6400 is a Harmony ST6 web touch panel with a 7-inch wide 800x480 WVGA colour display and a pre-installed HTML5 browser, built as an Ethernet-only agnostic HMI terminal with no serial COM port. It runs an ARM Cortex-A8 processor at 24 V DC, draws 9 W, and carries an IP65 front-panel rating.

Technical Specifications

Certifications & Standards

• CE
• CSA
• UKCA
• IEC 61000-6-4
• IEC 61000-6-2
• IEC 61131-2
• UL 61010-2-201
• CSA C22.2 No. 61010-2-201

Selection Notes

Pick the HMISTW6400 over the equivalent-size COM-equipped Harmony ST6 panel when the application only needs an Ethernet connection to a pre-installed HTML5 browser rather than a configured HMI project with serial COM ports — the STW-series drops the RS-232C/RS-485 ports entirely in exchange for a ready-to-use Web terminal. At 0.8 kg and 208 x 153 mm it is the smallest panel in the ST6 wide-screen line, suited to compact enclosure doors where a 10 or 15-inch model will not fit.
