Part number
HMIZMDARX
$946.22 On request Dispatch — · From TürkiyeGet a Quote
Harmony GTU

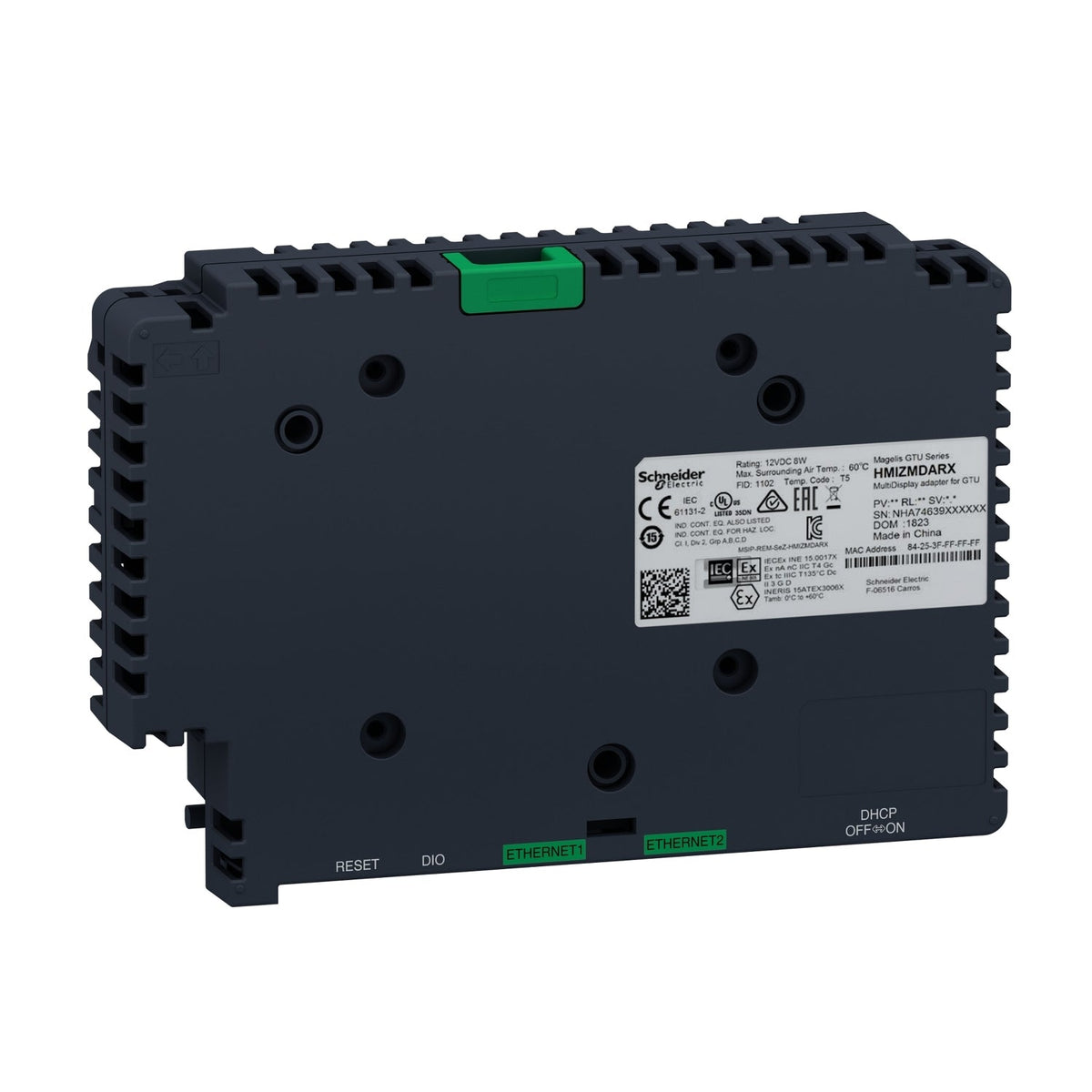

Schneider Electric HMIZMDARX Harmony GTU Multi Display Adapter 2 Ethernet HMI Accessory

Harmony GTU multi display adapter, drives external display via 2x Ethernet, 12-24V DC, ATEX Zone 2/22.

Communication
2x Ethernet TCP/IP RJ45, 1x DIO terminal block (3 in + 1 out)
EAN
3606480778711
Description

About the HMIZMDARX

The Schneider Electric HMIZMDARX is a Harmony GTU multi display adapter that connects an external display to a Harmony GTU open or Harmony iPC industrial PC over two Ethernet ports. It takes a 12 V DC module supply (also rated for 24 V DC input), outputs 24 V DC at 50 mA, and draws 8 W, with a 1-channel DIO terminal block (3 inputs, 1 output) for local signalling.

Certifications & Standards

  • UL 508
  • CSA C22.2 No. 142
  • CSA C22.2 No. 213
  • cULus HazLoc Class I Div 2
  • ANSI/ISA 12.12.01
  • IECEx
  • ATEX Zone 2/22
  • EAC
  • UKCA
  • UKEX

Selection Notes

Use the HMIZMDARX when a Harmony GTU open CPU/IO module needs to drive a second or remote display over Ethernet rather than its own attached screen — its 3-input/1-output DIO terminal block also lets it signal basic status back to the control system independently of the display link. Its ATEX Zone 2/22 and IECEx ratings allow it to be fitted in Zone 2/22 hazardous-area panels alongside the Harmony GTU hardware it serves.

Specification

Full specification

42 values · Last verified 30 Oct 2026

Main 4

Range of Product Harmony GTU
Accessory / Separate Part Type Adaptor
Accessory / separate part category Adaptation accessory
Product compatibility Harmony GTU open, Harmony iPC industrial PCs

Complementary 14

Accessory / separate part destination Harmony GTU display
[Us] rated supply voltage 12 V DC module supply
Input voltage 12 V DC module supply, 24 V DC
Integrated connection type 1 DIO terminal block 3 inputs + 1 output, 2 Ethernet TCP/IP RJ45 jack
Output voltage 24 V
Output voltage type DC
Output Current 50 mA
Power consumption in W 8 W
Net Weight 1.8 lb(US) (0.8 kg)
Local signalling LED green, steady operating status (RUN), LED green, faded stand-by, LED green/orange, alternate program mode, LED orange, flashing establishing communication connection, LED red, steady power ON, LED green, orange and red, alternate ERROR (fault)
Type of cooling Natural
Height 5.2 in (131 mm)
Depth 1.4 in (35 mm)
Width 7.4 in (188 mm)

Environment 11

Pollution degree 2
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage -4…140 °F (-20…60 °C)
Operating altitude 6561.68 ft (2000 m)
Product Certifications UL 508, CSA C22-2 No 142, CSA C22-2 No 213, cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01, IEC-Ex, ATEX zone 2/22, EAC, UKCA, UKEX
Relative Humidity 10…90 % non-condensing
Vibration resistance 3.5 mm constant amplitude 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² constant acceleration 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2
Shock resistance 147 m/s²X, Y, Z directions for 3 times IEC 61131-2
Resistance to fast transients 1 kV IEC 61000-4-4 signal ports), 2 kV IEC 61000-4-4 power ports)
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Environmental characteristic Corrosive gas free, Dustproof
Show all 42 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number HMIZMDARX
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480778711

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.8 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
