Part number
HMISTW6500
$989.23 On request Dispatch — · From TürkiyeGet a Quote
Harmony ST6

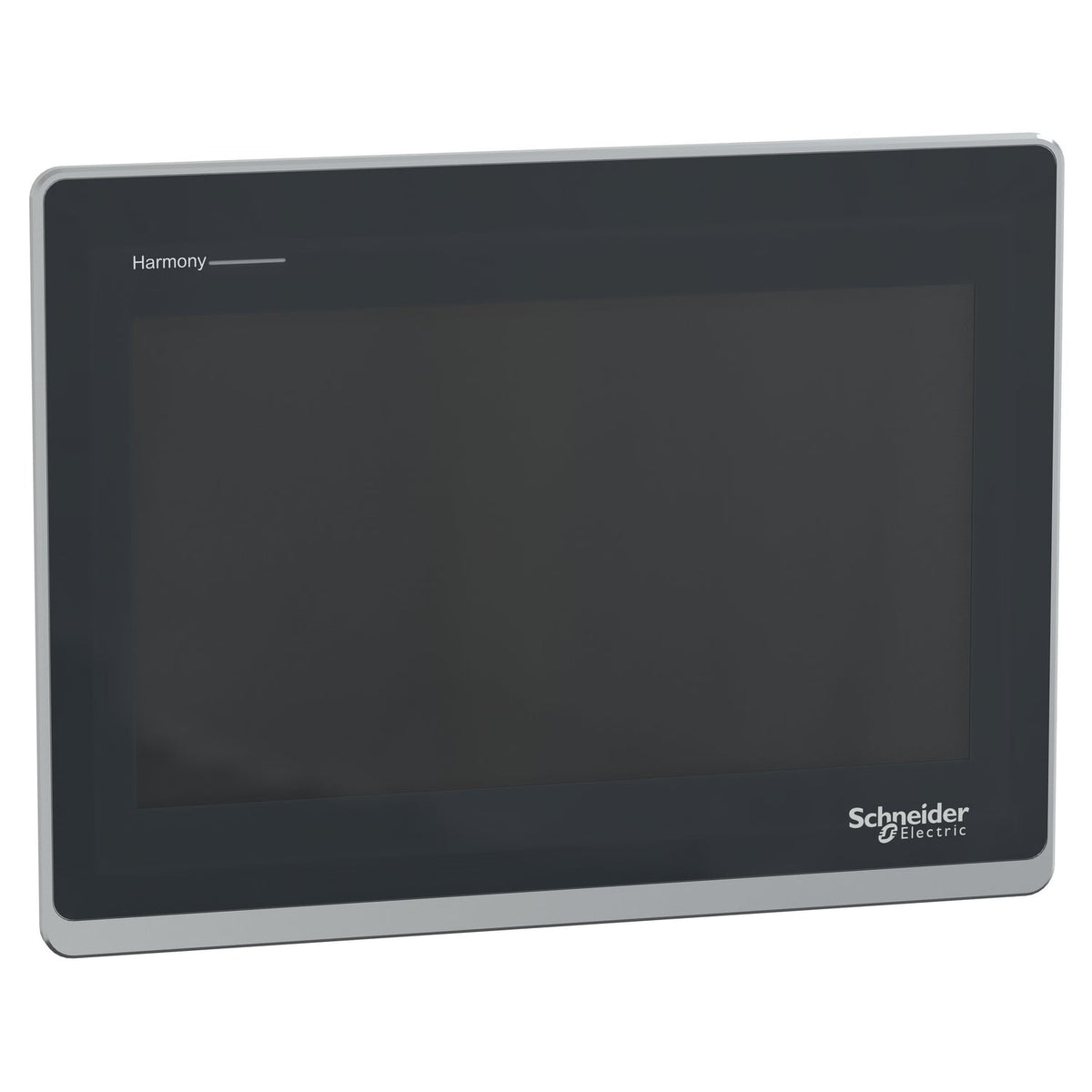

Schneider Electric HMISTW6500 Harmony ST6 10-inch Wide Touch Panel Ethernet HTML5 HMI Operator Panel

Harmony ST6 10in wide Ethernet-only web touch panel, HTML5 browser, WSVGA, 24V DC, IP65 front.

Communication
1x Ethernet 10/100BASE RJ45, 1x USB-A (Ethernet-only, no COM port)
Display
10 in colour TFT LCD, 1024x600 WSVGA, single-touch resistive
EAN
3606489918095
Description

About the HMISTW6500

The Schneider Electric HMISTW6500 is a Harmony ST6 web touch panel with a 10.1-inch wide 1024x600 WSVGA colour display and a pre-installed HTML5 browser, built as an Ethernet-only agnostic HMI terminal with no serial COM port. It runs an ARM Cortex-A8 processor at 24 V DC, draws 12.6 W, and carries an IP65 front-panel rating.

Certifications & Standards

  • CE
  • CSA
  • UKCA
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No. 61010-2-201

Selection Notes

Choose the 10.1-inch HMISTW6500 over the smaller 7-inch model in the same STW range when the HTML5 Web HMI content needs a larger viewport — both are Ethernet-only STW panels sharing the same ARM Cortex-A8 hardware, 24 V DC supply, and absence of COM ports, so the only functional trade-off is screen size against the 1.3 kg weight and 255 x 185 mm cut-out. For applications needing a built-in RS-232C/RS-485 port, the equivalent-size COM-equipped Harmony ST6 panel is the correct choice instead.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 4

Range of Product Harmony ST6
Product or Component Type Touch panel screen
Processor name ARM Cortex-A8
Memory description 512 MB device memory, 512 MB backup memory, 128 kB user data memory

Complementary 25

Display size 10 inch
Display Type Colour TFT LCD
Display colour 16 million colours
Display Resolution 1024 x 600 pixels WSVGA
Touch panel Single touch analogue resistive
Backlight lifespan 50000 hours white
Brightness 16 levels
Character font ASCII, ASCII (European characters), Katakana
[Us] rated supply voltage 24 V DC +/- 20 %)
Power Consumption in W 12.6 W
Inrush current 30 A
Local signalling Status LED green, steady offline, Status LED green, steady operating, Status LED green, flashing operating, Status LED green, faded stand-by, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED red, flashing operating, Status LED red, off power supply (OFF)
Port Ethernet 10/100BASE
Integrated connection type 1 USB 2.0 type Aback, 1 Ethernet - female RJ45bottom
Supply External supply
Realtime clock Built-in 0...50 °C, Built-in 10...90 % RH
Fixing mode By 4 screws 1.6...5 mm thick panel UL 61010-2-201, By 4 screws IEC 61131-2, By 4 screws IEC 61000-6-2
Enclosure Material PC
Front material Aluminium
Marking CE
Cut-out dimensions 255 x 185 mm panel cut dimension
Height 8.0 in (203 mm)
Width 10.7 in (273 mm)
Depth 1.9 in (47 mm)
Net Weight 2.9 lb(US) (1.3 kg)

Environment 13

Immunity to microbreaks 10 ms
Standards IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Product Certifications CSA, CE, UKCA
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Ambient Air Temperature for Storage -4…140 °F (-20…60 °C)
Relative humidity 10…90 % non-condensing
Operating altitude 6561.68 ft (2000 m)
IP degree of protection IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel)
NEMA degree of protection NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure)
Shock resistance 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Vibration resistance +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz)
Electromagnetic compatibility Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge)
Show all 55 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number HMISTW6500
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489918095

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 1.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMISTW6500

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CSA
  • CE
  • UKCA
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Quick answers

Questions about the HMISTW6500

What is the HS code of HMISTW6500 for customs?

The tariff (HS) code on file for HMISTW6500 is 852859.

What is the EAN of HMISTW6500?

The EAN (GTIN) of HMISTW6500 is 3606489918095.

Where does HMISTW6500 ship from, and how fast?

HMISTW6500 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
