Part number
HMISTW6600
$1,437.67 On request Dispatch — · From TürkiyeGet a Quote
Harmony ST6

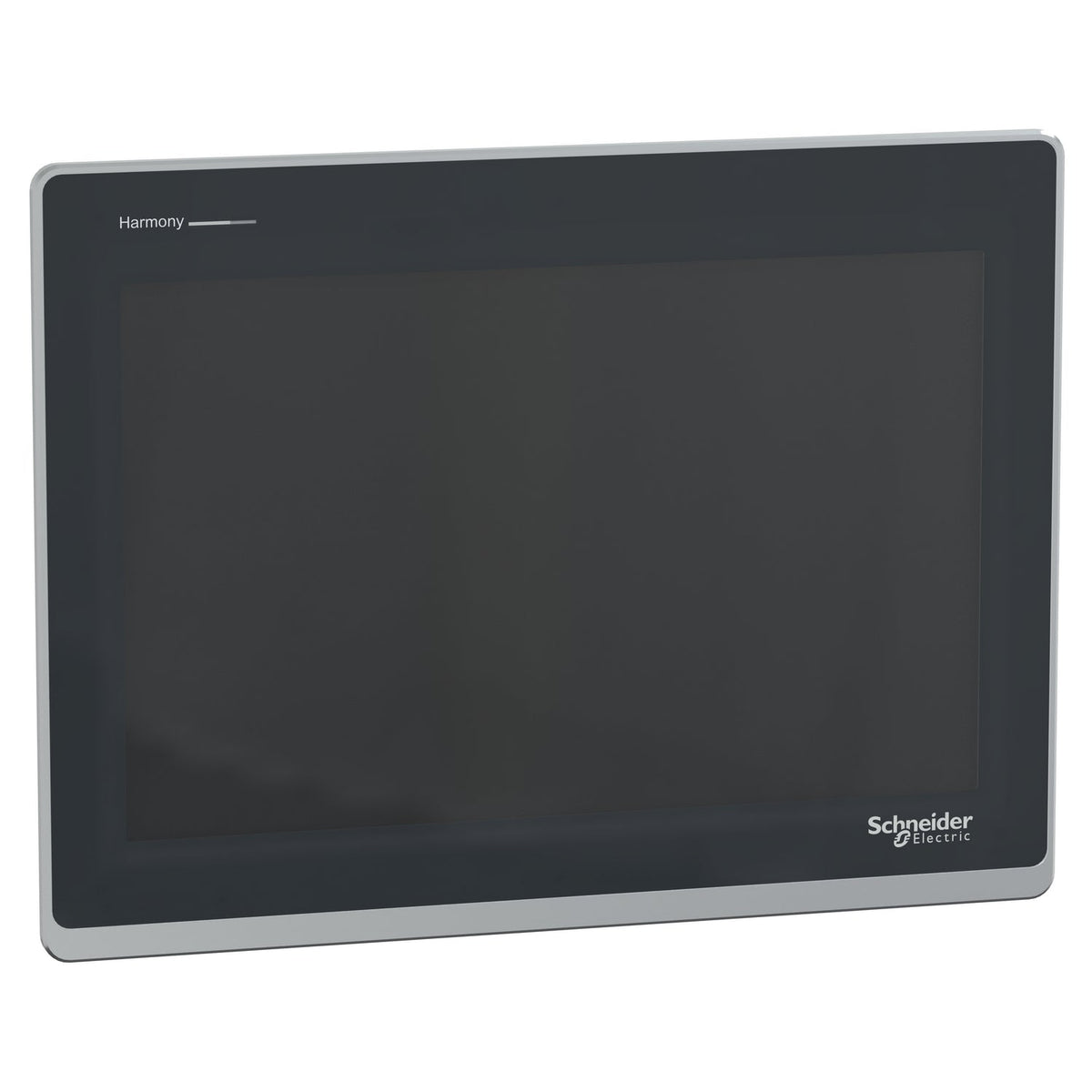

Schneider Electric HMISTW6600 Harmony STW6 12-inch Wide Touch Panel 1 Ethernet USB HMI Operator Panel

Schneider Electric Harmony STW6 12-inch Ethernet-only web touch panel HMI, 24V DC supply, HTML5 browser.

Communication
1 Ethernet RJ45, 1 USB 2.0 Type A (no serial COM port)
Display
12-inch colour TFT LCD, 1280x800 WXGA, 16M colours
EAN
3606489918101
Description

About the HMISTW6600

The Schneider Electric HMISTW6600 is a 12-inch Harmony STW6 web touch panel with a 1280 x 800 pixel WXGA colour TFT display, 16 million colours, and single-touch analogue resistive input. It is an Ethernet-only terminal with 1 RJ45 Ethernet port and 1 USB 2.0 Type A port, running on 24 V DC with an ARM Cortex-A8 processor and a pre-installed HTML5 browser.

Certifications & Standards

  • CE
  • CSA
  • UKCA
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No. 61010-2-201

Selection Notes

The HMISTW6600 pairs the 12-inch ST6 display with the Ethernet-only STW6 interface, dropping the COM1/COM2 serial ports that the HMIST6600 carries. Choose it over the HMIST6600 when the control architecture is fully Ethernet/Modbus TCP and a pre-installed HTML5 browser is useful for remote viewing; choose the smaller 4-inch HMISTW6200 when panel space is limited and only Ethernet plus USB connectivity is needed.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 4

Range of Product Harmony ST6
Product or Component Type Touch panel screen
Processor name ARM Cortex-A8
Memory description 512 MB device memory, 512 MB backup memory, 128 kB user data memory

Complementary 25

Display size 12 inch
Display Type Colour TFT LCD
Display colour 16 million colours
Display Resolution 1280 x 800 pixels WXGA
Touch panel Single touch analogue resistive
Backlight lifespan 50000 hours white
Brightness 16 levels
Character font ASCII, ASCII (European characters), Katakana
[Us] rated supply voltage 24 V DC +/- 20 %)
Power Consumption in W 18.4 W
Inrush current 30 A
Local signalling Status LED green, steady offline, Status LED green, steady operating, Status LED green, flashing operating, Status LED green, faded stand-by, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED red, flashing operating, Status LED red, off power supply (OFF)
Port Ethernet 10/100BASE
Integrated connection type 1 USB 2.0 type Aback, 1 Ethernet - female RJ45bottom
Supply External supply
Realtime clock Built-in 0...50 °C, Built-in 10...90 % RH
Fixing mode By 4 screws 1.6...5 mm thick panel UL 61010-2-201, By 4 screws IEC 61131-2, By 4 screws IEC 61000-6-2
Enclosure Material PC
Front material Aluminium
Marking CE
Cut-out dimensions 295 x 217 mm panel cut dimension
Height 9.3 in (235 mm)
Width 12.3 in (313 mm)
Depth 2.0 in (50 mm)
Net Weight 4.0 lb(US) (1.8 kg)

Environment 13

Immunity to microbreaks 10 ms
Standards IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Product Certifications CSA, CE, UKCA
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Ambient Air Temperature for Storage -4…140 °F (-20…60 °C)
Relative humidity 10…90 % non-condensing
Operating altitude 6561.68 ft (2000 m)
IP degree of protection IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel)
NEMA degree of protection NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure)
Shock resistance 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Vibration resistance +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz)
Electromagnetic compatibility Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge)
Show all 55 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number HMISTW6600
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489918101

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 1.8 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMISTW6600

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CSA
  • CE
  • UKCA
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Quick answers

Questions about the HMISTW6600

What is the HS code of HMISTW6600 for customs?

The tariff (HS) code on file for HMISTW6600 is 852859.

What is the EAN of HMISTW6600?

The EAN (GTIN) of HMISTW6600 is 3606489918101.

Where does HMISTW6600 ship from, and how fast?

HMISTW6600 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
