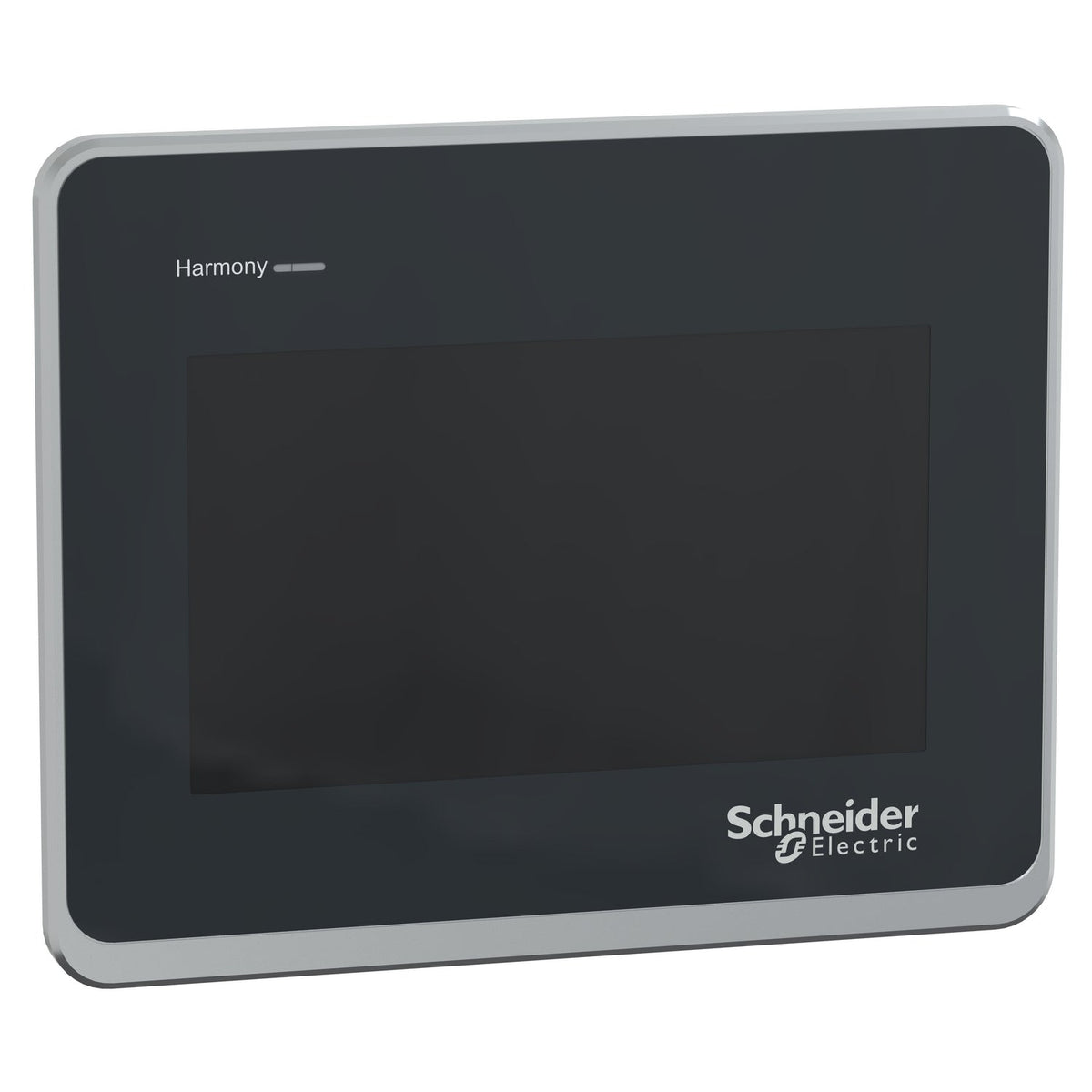

Schneider Electric HMISTW6200 Harmony STW6 4-inch Wide Touch Panel 1 Ethernet USB HMI Operator Panel

The Schneider Electric HMISTW6200 is a 4-inch Harmony STW6 web touch panel with a 480 x 272 pixel colour TFT display, 16 million colours, and single-touch analogue resistive input. It is an Ethernet-only terminal with 1 RJ45 Ethernet port and 1 USB 2.0 Type A port, running on 24 V DC with an ARM Cortex-A8 processor and 512 MB device memory.

Technical Specifications

Certifications & Standards

• CE
• CSA
• UKCA
• IEC 61000-6-4
• IEC 61000-6-2
• IEC 61131-2
• UL 61010-2-201
• CSA C22.2 No. 61010-2-201

Selection Notes

The HMISTW6200 is the web-terminal variant of the ST6 4-inch panel: it drops the COM1 serial link that the HMIST6200 carries and keeps only Ethernet and USB connectivity, so pick it for browser-based or Ethernet-only architectures rather than serial PLC links. Its 512 MB user data memory is larger than the standard HMIST6200's 128 MB, which suits locally stored content. Choose the 12-inch HMISTW6600 when the application needs a larger display with the same Ethernet-only interface.
