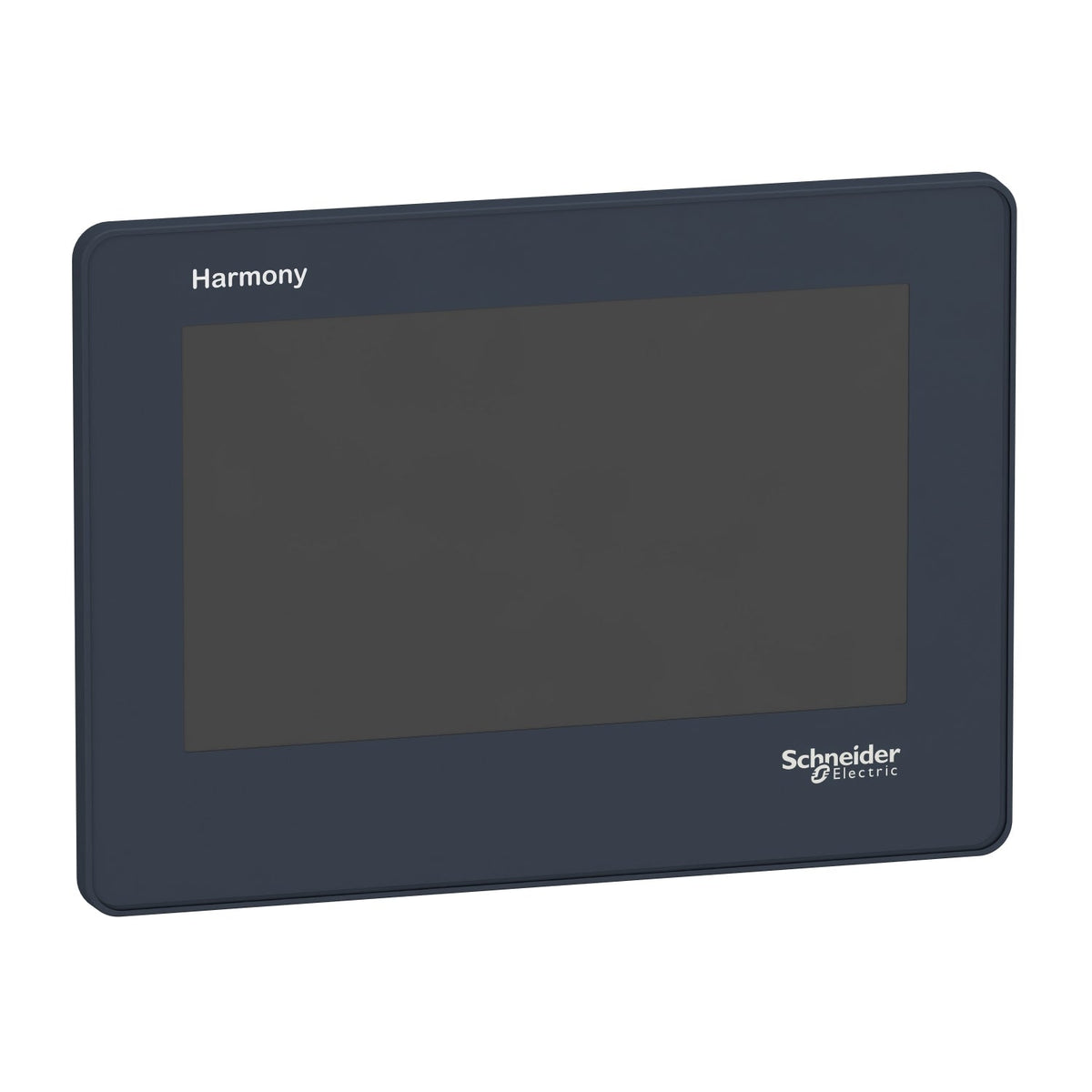

The Schneider Electric HMISTO705 is a 4.3-inch Harmony STO touch panel with a 480 x 272 pixel colour TFT display, 65536 colours, and an RS-232C serial link on a 9-pin terminal block. It runs on 12-24 V DC, uses an ARM926EJ-S processor with 26 MB application memory, and supports Modbus plus third-party PLC protocols.
The HMISTO705 is the only panel in this Harmony lineup wired through a 9-pin RS-232C terminal block rather than a COM1 SUB-D or RJ45 port, which suits retrofits onto older serial-only PLCs. Its 12-24 V DC input range is wider than the fixed 24 V DC supply on the ST6 series, useful where supply voltage sags are a concern. ATEX Zone 2/22 certification sets it apart from the ST6 models for use near hazardous atmospheres.
| Range of Product | Harmony STO & STU |
|---|---|
| Product or Component Type | Touch panel screen |
| Software package | EcoStruxure Operator Terminal Expert |
| Processor name | ARM926EJ-S |
| Display size | 4.3 inch |
|---|---|
| Display Type | Colour TFT LCD |
| Display colour | 65536 colours |
| Display Resolution | 480 x 272 pixels |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours white |
| Brightness | 16 levels via touch panel |
| Character font | ASCII (European characters), Chinese (simplified Chinese), Korean, Japanese (ANK, Kanji), Cyrillic, Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 12...24 V DC - 10...20 % |
| Power Consumption in W | 7.5 W |
| Number of pages | 8999 |
| Memory description | Back up of data 512 KB, Application memory 26 MB |
| Integrated connection type | 1 USB 2.0 type mini B, 1 USB 2.0 type A, 1 serial link - 9-pin terminal block - RS232C 2400...115200 bps) |
| Supply | External source |
| Realtime clock | With RTC-battery set optional |
| Downloadable protocols | Third party protocols, Modbus |
| Range Compatibility | MitsubishI, Siemens, Omron, Allen-Bradley |
| Fixing mode | By 2 installation fasteners 1.5 to 6 mm thick panel |
| Enclosure Material | PPT |
| Front material | Plastic |
| Cut-out dimensions | 77.5 x 112.5 mm, 66 x 105 mm with mounting adaptor |
| Height | 3.6 in (90.4 mm) |
| Width | 4.9 in (124.9 mm) |
| Depth | 1.5 in (38.8 mm) |
| Net Weight | 0.49 lb(US) (0.22 kg) |
| Standards | ANSI/ISA 12.12.01, CSA C22.2 No 142, EN 61000-6-2, CSA C22.2 No 213, UL 61010-1, EN 61131-2, EN 61000-6-4, UL 61010-2-201 |
|---|---|
| Product Certifications | KCC, CE, UL, C-tick, ATEX zone 2/22, cUL, UKCA |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP65F front panel), IP20 rear panel) |
| NEMA degree of protection | NEMA 4X/13 front panel indoor use) |
| Shock resistance | 15 gn 11 msIEC 61131-2 |
| Vibration resistance | 1 gn 5…150 Hz) IEC 61131-2, 3.5 mm constant amplitude 5…150 Hz) IEC 61131-2 |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz), Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2, Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2 |
| Part number | HMISTO705 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480920899 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 0.22 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
