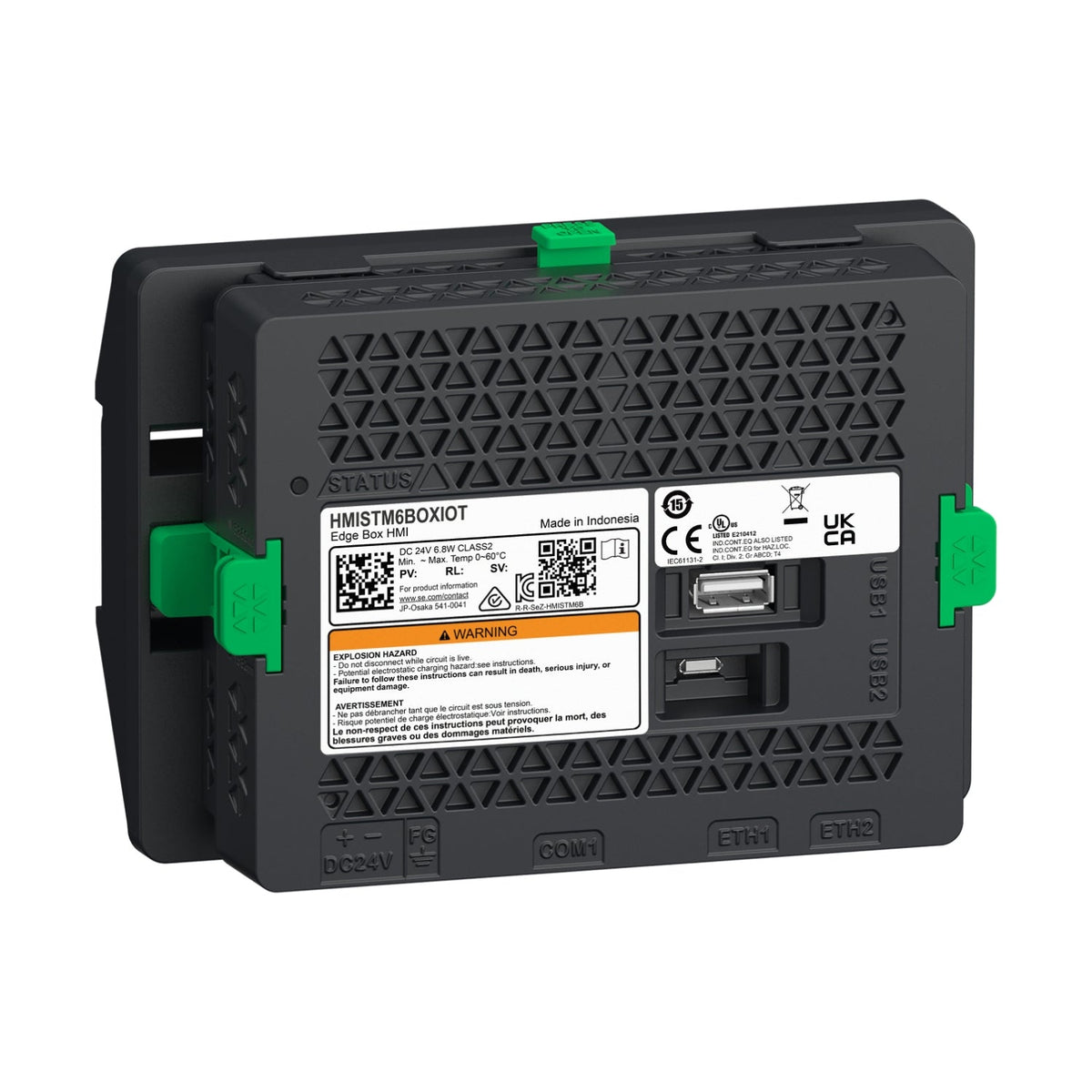

The Schneider Electric HMISTM6BOXIOT is a Harmony ST6 Edge Box HMI — a screenless IIoT gateway that runs EcoStruxure Machine SCADA Expert runtime to collect data from OT field devices and push it to IT-side systems. It uses an ARM Cortex-A8 processor on Linux at 24 V DC, with two Ethernet ports, one RS-232C/RS-485 COM port, and USB-A and micro-B ports.
Choose the HMISTM6BOXIOT over the standard faceless HMI box variant in the same range when the role is IIoT data collection rather than remote HMI display — it ships with EcoStruxure Machine SCADA Expert runtime and Secure Connect Advisor pre-installed for OT-to-IT data pushing, while the plain BOX variant is built to drive a remote HMI faceplate instead. Both share the same ARM Cortex-A8 hardware, 24 V DC supply, and 2x Ethernet/1x COM connectivity, so the difference is entirely in the pre-loaded software role.
Used as an edge gateway collecting data from PLCs, drives, and sensors on the machine network and forwarding it to plant-level SCADA, historian, or cloud systems, without occupying a Harmony ST6 screen for a dedicated HMI role — typically paired with a separate operator panel elsewhere on the same machine.
| Range of Product | Harmony ST6 |
|---|---|
| Product or Component Type | Modular HMI box |
| Operating System | Linux |
| Processor name | ARM Cortex-A8 |
| Memory description | 512 KB NVRAM backup memory, 512 MB internal RAM, 1 GB NAND flash |
| Software package | EcoStruxure machine SCADA expert runtime 500 tags pre-activated, EcoStruxure machine SCADA expert runtime (mobile) 1 client activated, EcoStruxure secure connect advisor pre-installed |
| [Us] rated supply voltage | 24 V DC |
|---|---|
| Local signalling | LED multi-colour |
| Integrated connection type | 2 Ethernet TCP/IP - RJ45 - 10/100BASE-T, 1 COM1 serial link - RJ45 - RS232C/RS485 2400...115200 bps), 1 USB 2.0 port - USB micro-B, 1 USB 2.0 port - USB type A |
| Type of cooling | Natural convection |
| Realtime clock | Built-in |
| Height | 4.0 in (101 mm) |
| Width | 5.9 in (150.5 mm) |
| Depth | 2.5 in (63.3 mm) |
| Net Weight | 1.005 lb(US) (0.456 kg) |
| Standards | UL 61010, CSA C22.2 No 61010-2-201, UL 121201, CSA C22.2 No 213, IEC 61132-2 |
|---|---|
| Product Certifications | CE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, ABS, RINA, DNV |
| Pollution degree | 2 IEC 61131-2 ed.3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 147 m/s²IEC 61131-2 |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2, 9.8 m/s² 9…150 Hz) IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3 |
| Part number | HMISTM6BOXIOT |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482158757 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.456 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for HMISTM6BOXIOT is 852859.
The EAN (GTIN) of HMISTM6BOXIOT is 3606482158757.
HMISTM6BOXIOT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
