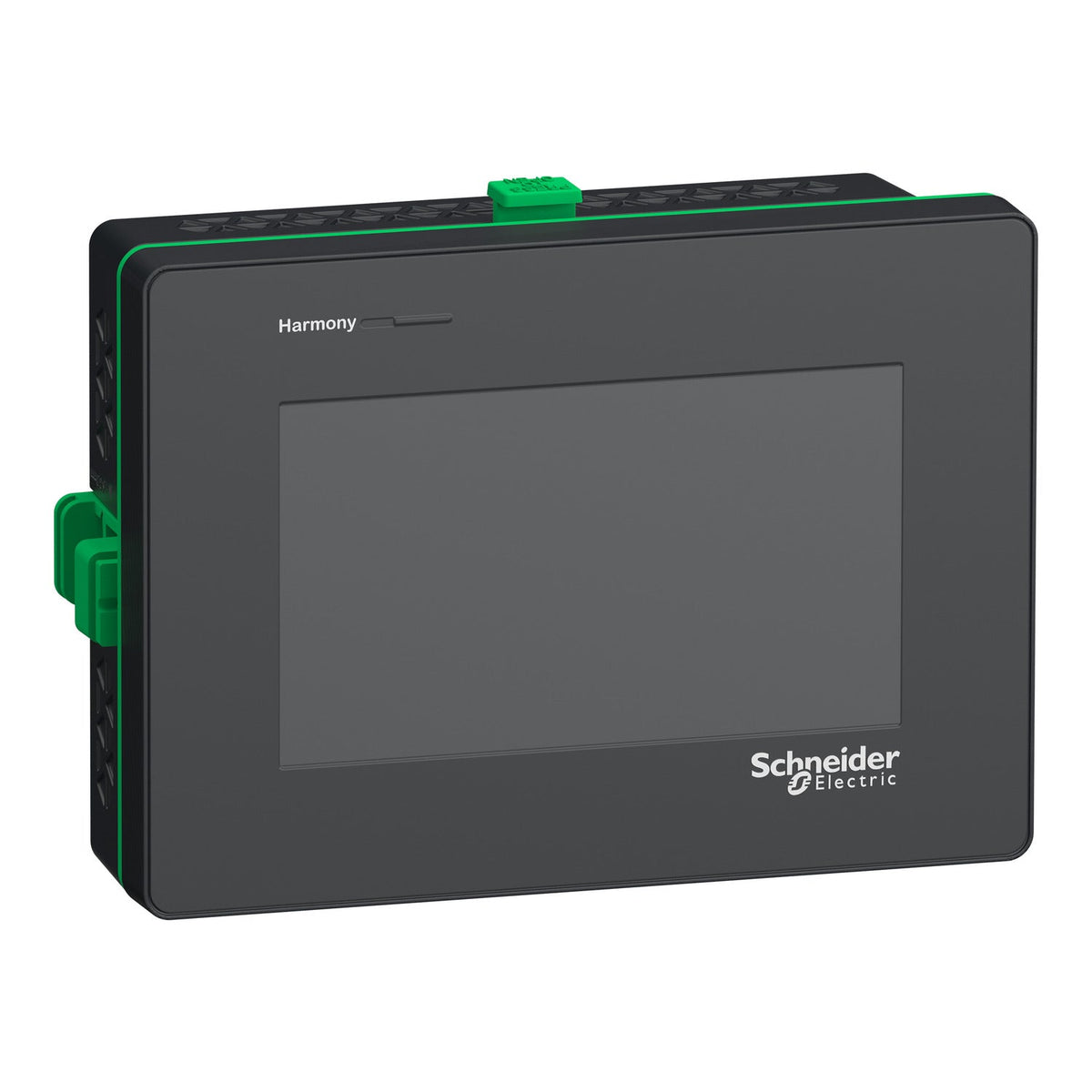

The Schneider Electric HMISTM6200 is a Harmony ST6 modular touch panel with a 4.3-inch 480x272 colour display, 22 mm pushbutton-style panel mounting, two Ethernet ports, and one RS-232C/RS-485 COM port. It runs an ARM Cortex-A8 processor at 24 V DC, draws 7.8 W, and holds DNV, ABS, RINA, and BV marine type approvals for shipboard installation.
Specify the HMISTM6200 instead of a standard panel-mount Harmony ST6 screen when the installation needs DNV, ABS, RINA, or BV marine type approval — its 4.3-inch size and Ø22.5 mm round cut-out also let it mount directly into a 22 mm pushbutton panel alongside pilot devices, rather than needing a dedicated rectangular cut-out. Pair it with the faceless modular HMI box rear module in the same range when the CPU needs to sit away from the operator face and only the 4.3-inch screen stays on the door.
| Range of Product | Harmony ST6 |
|---|---|
| Product or Component Type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Memory description | 1 GB device memory, 128 MB user data memory, 512 KB backup memory |
| Display size | 4 inch |
|---|---|
| Display Type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display Resolution | 480 x 272 pixels |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 20000 hours white |
| Brightness | 16 levels |
| Character font | ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Power Consumption in W | 7.8 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady offline, Status LED green, steady operating, Status LED green, flashing operating, Status LED green, faded stand-by, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED red, flashing operating, Status LED red, off power supply (OFF) |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom, 1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback, 2 Ethernet - female RJ45bottom |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C, Built-in 10...90 % RH |
| Downloadable protocols | Modbus, Uni-TE, Third party protocols |
| Product brand | Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic |
| Fixing mode | Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201, Ø 22 mm hole IEC 61131-2, Ø 22 mm hole IEC 61000-6-2 |
| Enclosure Material | PC |
| Front material | Plastic |
| Marking | CE |
| Cut-out dimensions | Ø 22.5 mm |
| Height | 4.3 in (108.2 mm) |
| Width | 5.7 in (145.6 mm) |
| Depth | 2.1 in (53.9 mm) |
| Net Weight | 1.08 lb(US) (0.49 kg) |
| Immunity to microbreaks | 2 ms |
|---|---|
| Standards | IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201, CSA C22.2 No 213 |
| Product Certifications | CE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, DNV, ABS, RINA, BV |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Part number | HMISTM6200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481856395 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.49 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
