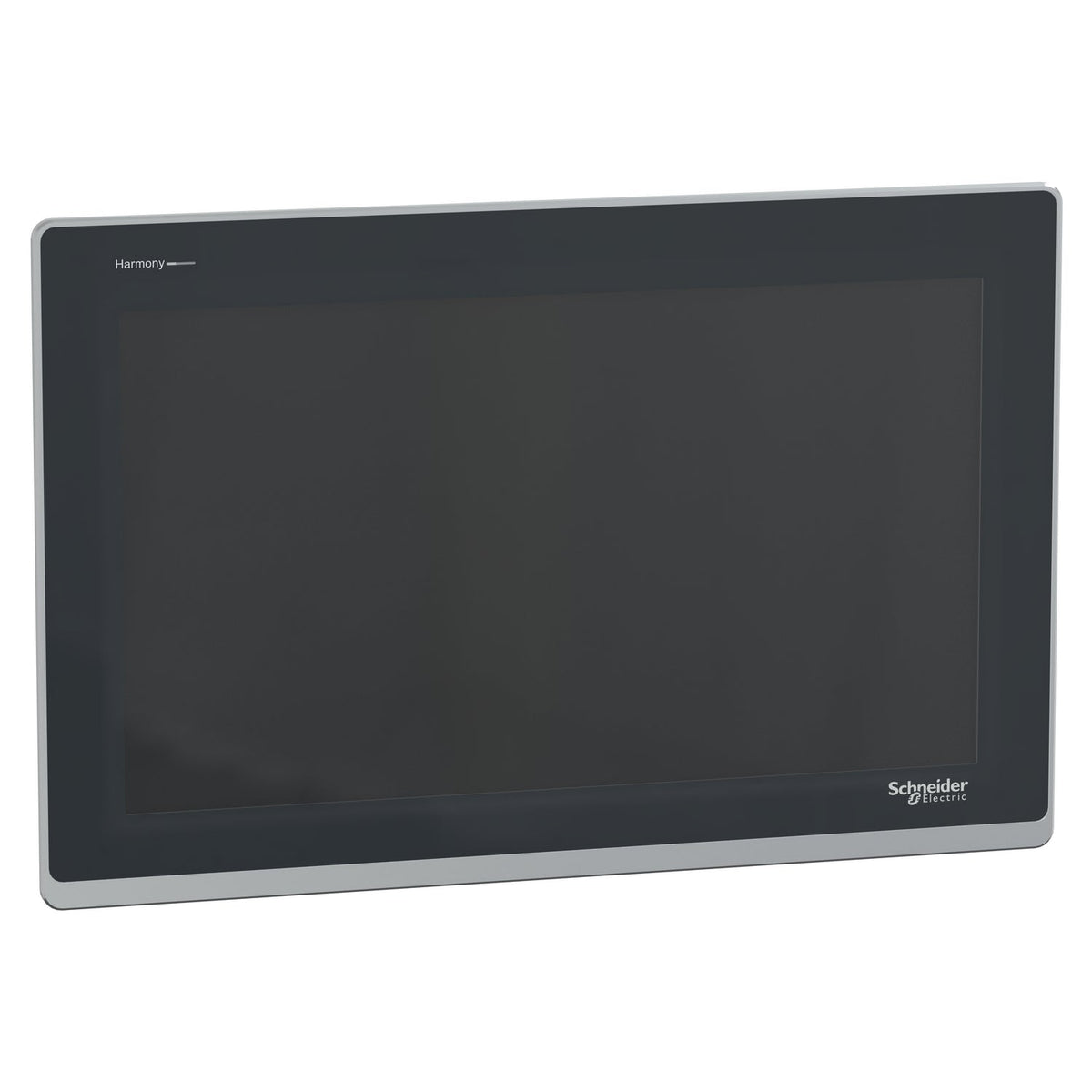

The Schneider Electric HMIST6700 is a Harmony ST6 touch panel screen with a 15.6-inch wide 1366x768 FWXGA colour display, two serial COM ports (RS-232C and RS-485), two Ethernet ports, and USB host/device connections. It runs on EcoStruxure Operator Terminal Expert, draws 18.5 W from a 24 V DC supply, and carries an IP65 front-panel rating.
Choose the 15.6-inch HMIST6700 over the 10.1-inch model in the same range when the application needs more on-screen real estate for multi-pane trends or alarm lists — both share the identical 24 V DC supply, COM/Ethernet port set, and IP65 front rating, so the decision comes down to screen size and the larger panel's 2.7 kg weight versus the smaller unit's 1.3 kg. Its 6-screw fixing, versus 4 on the 10-inch model, reflects the larger cut-out area it has to seal.
| Range of Product | Harmony ST6 |
|---|---|
| Product or Component Type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Memory description | 1 GB device memory, 512 KB backup memory, 128 MB user data memory |
| Display size | 15 inch |
|---|---|
| Display Type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display Resolution | 1366 x 768 pixels FWXGA |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours white |
| Brightness | 16 levels |
| Character font | ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Power Consumption in W | 18.5 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady offline, Status LED green, steady operating, Status LED green, flashing operating, Status LED green, faded stand-by, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED red, flashing operating, Status LED red, off power supply (OFF) |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom, 1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back, COM2 serial link 2400...187500 bps)back, 1 USB 2.0 type Abottom, 1 USB 2.0 type micro B, 2 Ethernet |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C, Built-in 10...90 % RH |
| Downloadable protocols | Modbus, Uni-TE, Third party protocols |
| Product brand | Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic |
| Fixing mode | By 6 screws 1.6...5 mm thick panel UL 61010-2-201, By 6 screws IEC 61131-2, By 6 screws IEC 61000-6-2 |
| Enclosure Material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 394 x 250 mm panel cut dimension |
| Height | 10.6 in (268 mm) |
| Width | 16.2 in (412 mm) |
| Depth | 2.0 in (50 mm) |
| Net Weight | 6.0 lb(US) (2.7 kg) |
| Immunity to microbreaks | 10 ms |
|---|---|
| Standards | IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Product Certifications | CSA, CE, UKCA |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Part number | HMIST6700 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489523411 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 2.7 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for HMIST6700 is 852859.
The EAN (GTIN) of HMIST6700 is 3606489523411.
