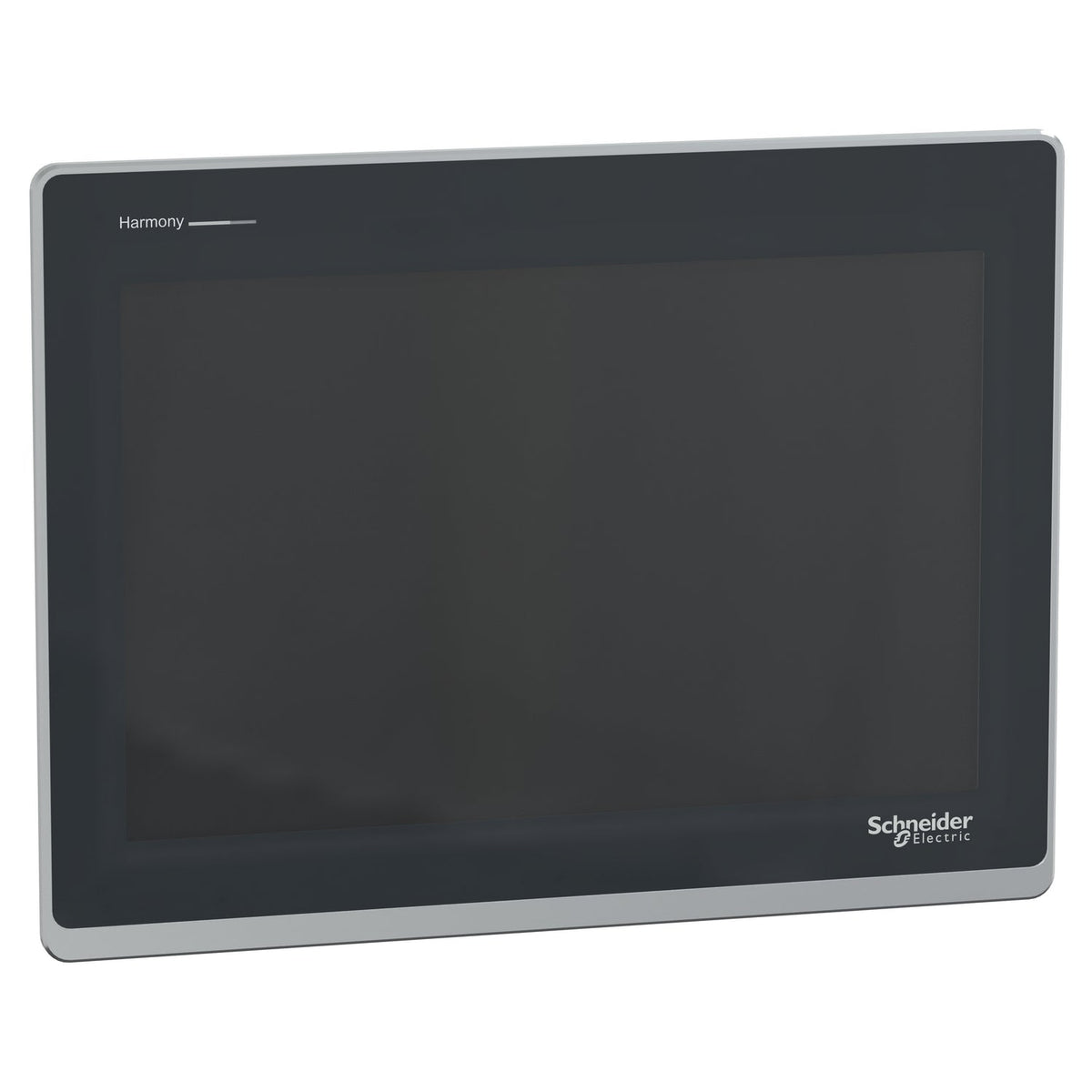

The Schneider Electric HMIST6600 is a 12-inch Harmony ST6 touch panel screen with a 1280 x 800 pixel WXGA colour TFT display, 16 million colours, and single-touch analogue resistive input. It offers 2 COM ports, 2 Ethernet ports, and USB host/device connectivity, running on 24 V DC with an ARM Cortex-A8 processor and 1 GB device memory for networked machine visualization.
At 12 inches the HMIST6600 is the largest screen in the ST6 line, giving more room for trend graphs, alarm lists, and multi-zone layouts than the 4-inch HMIST6200 or 7-inch HMIST6400. It shares the same 2 COM / 2 Ethernet port set and 1 GB device memory as the HMIST6400, so the choice between the two comes down to screen size and panel space, not connectivity. Power draw rises to 18.4 W with the larger backlight, which factors into 24 V DC supply sizing.
| Range of Product | Harmony ST6 |
|---|---|
| Product or Component Type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Memory description | 1 GB device memory, 512 KB backup memory, 128 MB user data memory |
| Display size | 12 inch |
|---|---|
| Display Type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display Resolution | 1280 x 800 pixels WXGA |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours white |
| Brightness | 16 levels |
| Character font | ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Power Consumption in W | 18.4 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady offline, Status LED green, steady operating, Status LED green, flashing operating, Status LED green, faded stand-by, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED red, flashing operating, Status LED red, off power supply (OFF) |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom, 1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back, COM2 serial link 2400...187500 bps)back, 1 USB 2.0 type Abottom, 1 USB 2.0 type micro B, 2 Ethernet |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C, Built-in 10...90 % RH |
| Downloadable protocols | Modbus, Uni-TE, Third party protocols |
| Product brand | Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic |
| Fixing mode | By 4 screws 1.6...5 mm thick panel UL 61010-2-201, By 4 screws IEC 61131-2, By 4 screws IEC 61000-6-2 |
| Enclosure Material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 295 x 217 mm panel cut dimension |
| Height | 9.3 in (235 mm) |
| Width | 12.3 in (313 mm) |
| Depth | 2.0 in (50 mm) |
| Net Weight | 4.0 lb(US) (1.8 kg) |
| Immunity to microbreaks | 10 ms |
|---|---|
| Standards | IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Product Certifications | CSA, CE, UKCA |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Part number | HMIST6600 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489523404 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 1.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
