Part number
HMIST6400
$577.47 On request Dispatch — · From TürkiyeGet a Quote
Harmony ST6

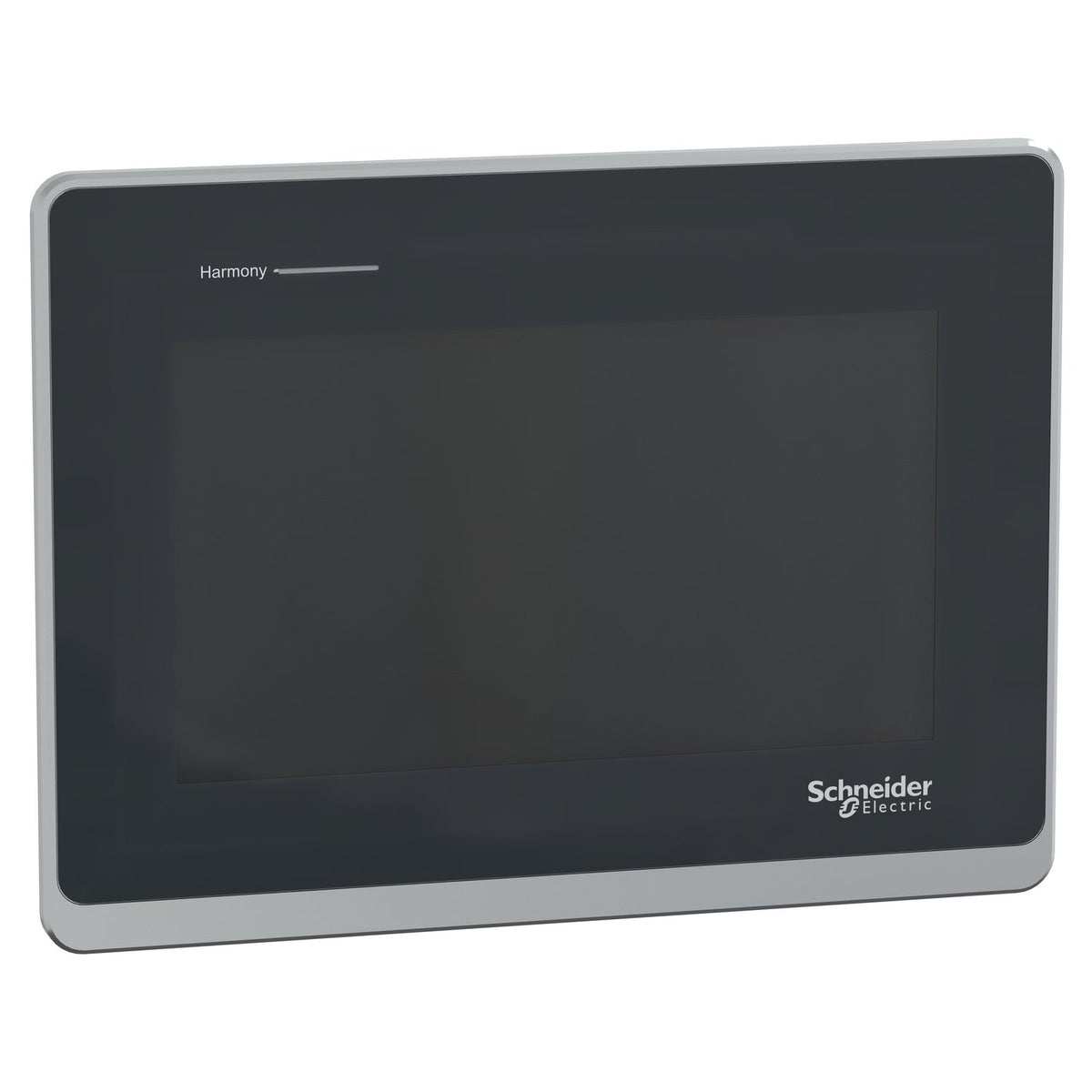

Schneider Electric HMIST6400 Harmony ST6 7-inch Wide Touch Panel 2 COM 2 Ethernet USB HMI Operator Panel

Schneider Electric Harmony ST6 7-inch touch panel HMI with 2 COM, 2 Ethernet, USB host/device, 24V DC supply.

Communication
2 COM (RS232C + RS485), 2 Ethernet RJ45, USB host and device
Display
7-inch colour TFT LCD, 800x480 WVGA, 16M colours
EAN
3606489523381
Description

About the HMIST6400

The Schneider Electric HMIST6400 is a 7-inch Harmony ST6 touch panel screen with an 800 x 480 pixel WVGA colour TFT display, 16 million colours, and single-touch analogue resistive input. It offers 2 COM ports, 2 Ethernet ports, and USB host/device connectivity, running on 24 V DC with an ARM Cortex-A8 processor and 1 GB device memory for networked machine visualization.

Certifications & Standards

  • CE
  • CSA
  • UKCA
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No. 61010-2-201

Selection Notes

The HMIST6400 steps up from the 4-inch HMIST6200 with a second COM2 (RS485) port and a second Ethernet port, useful for a dedicated device bus plus a plant network link on the same panel. Its 800 x 480 WVGA screen and 1 GB device memory support more on-screen objects than the entry 4-inch model, while the 12-inch HMIST6600 is the choice when the layout needs more screen real estate. Country of manufacture is Indonesia.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 4

Range of Product Harmony ST6
Product or Component Type Touch panel screen
Processor name ARM Cortex-A8
Memory description 1 GB device memory, 128 MB user data memory, 512 KB backup memory

Complementary 28

Display size 7 inch
Display Type Colour TFT LCD
Display colour 16 million colours
Display Resolution 800 x 480 pixels WVGA
Touch panel Single touch analogue resistive
Backlight lifespan 50000 hours white
Brightness 16 levels
Character font ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
[Us] rated supply voltage 24 V DC +/- 20 %)
Power Consumption in W 9 W
Inrush current 30 A
Local signalling Status LED green, steady offline, Status LED green, steady operating, Status LED green, flashing operating, Status LED green, faded stand-by, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED red, flashing operating, Status LED red, off power supply (OFF)
Number of pages 200 application pages
Port Ethernet 10/100BASE
Integrated connection type 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom, 1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back, COM2 serial link 2400...187500 bps)back, 1 USB 2.0 type Abottom, 1 USB 2.0 type micro B, 2 Ethernet
Supply External supply
Realtime clock Built-in 0...50 °C, Built-in 10...90 % RH
Downloadable protocols Modbus, Uni-TE, Third party protocols
Product brand Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic
Fixing mode By 4 screws 1.6...5 mm thick panel UL 61010-2-201, By 4 screws IEC 61131-2, By 4 screws IEC 61000-6-2
Enclosure Material PC
Front material Aluminium
Marking CE
Cut-out dimensions 190 x 135 mm panel cut dimension
Height 6.02 in (153 mm)
Width 8.2 in (208 mm)
Depth 1.8 in (45 mm)
Net Weight 1.8 lb(US) (0.8 kg)

Environment 13

Immunity to microbreaks 5 ms
Standards IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Product Certifications CSA, CE, UKCA
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Ambient Air Temperature for Storage -4…140 °F (-20…60 °C)
Relative humidity 10…90 % non-condensing
Operating altitude 6561.68 ft (2000 m)
IP degree of protection IP20 IEC 61131-2 rear panel), IP65 IEC 61131-2 front panel)
NEMA degree of protection NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure)
Shock resistance 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Vibration resistance +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, 9.8 m/s² 9…150 Hz)
Electromagnetic compatibility Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge)
Show all 58 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number HMIST6400
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489523381

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.8 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMIST6400

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CSA
  • CE
  • UKCA
  • IEC 61000-6-4
  • IEC 61000-6-2
  • IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Quick answers

Questions about the HMIST6400

What is the HS code of HMIST6400 for customs?

The tariff (HS) code on file for HMIST6400 is 852859.

What is the EAN of HMIST6400?

The EAN (GTIN) of HMIST6400 is 3606489523381.

Where does HMIST6400 ship from, and how fast?

HMIST6400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
