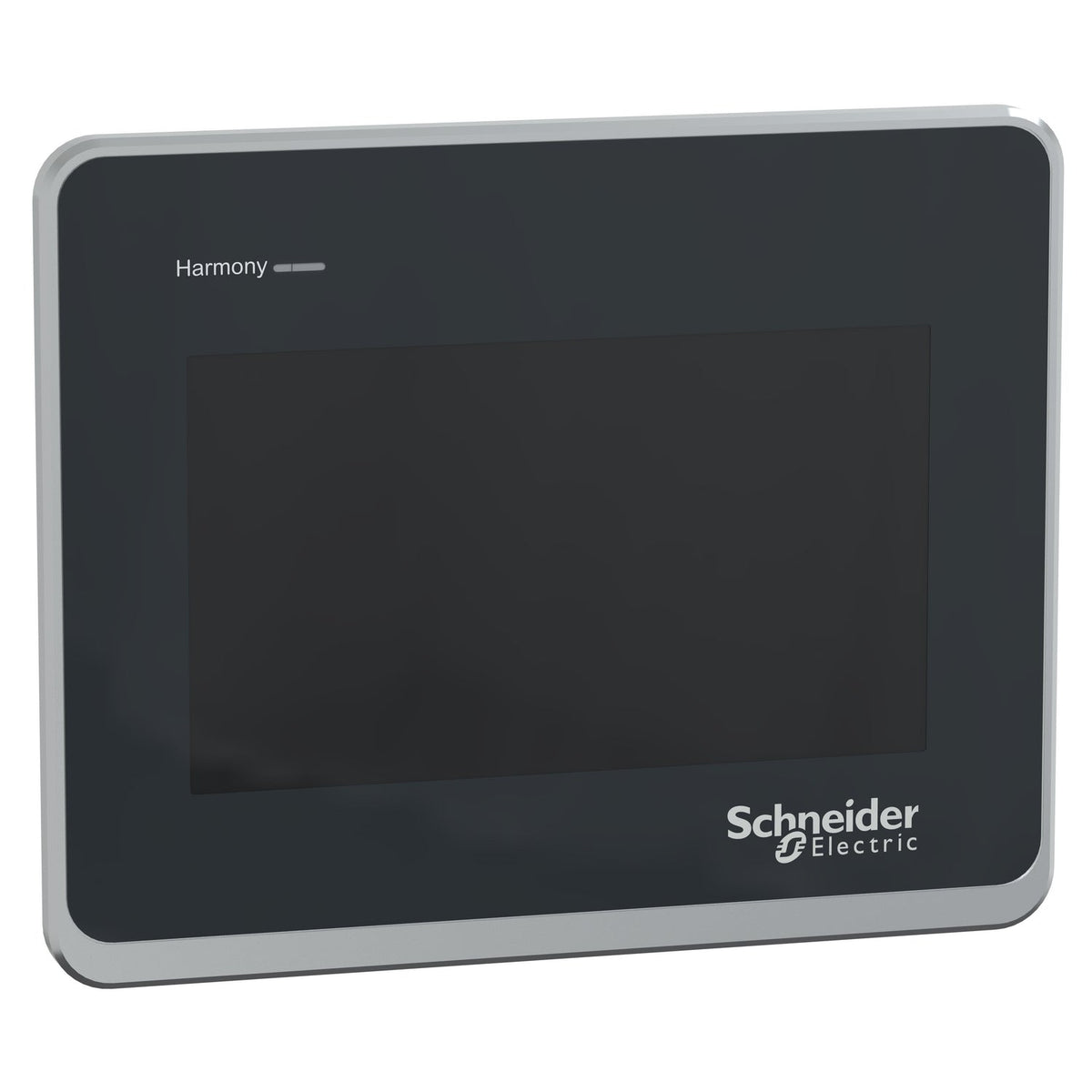

The Schneider Electric HMIST6200 is a 4-inch Harmony ST6 touch panel screen with a 480 x 272 pixel colour TFT display, 16 million colours, and single-touch analogue resistive input. It connects via 1 COM1 serial link, 1 Ethernet port, and USB host/device ports, and runs on a 24 V DC supply with ARM Cortex-A8 processing and 512 MB device memory for basic machine visualization.
The HMIST6200 is the smallest screen in the Harmony ST6 line at 4 inches, and it carries only 1 COM1 port and 1 Ethernet port, enough for a single point-to-point PLC link on a compact machine. Step up to the HMIST6400 (7-inch) or HMIST6600 (12-inch) when the application needs more on-screen objects, trend graphs, or a second COM and second Ethernet port for networked architectures. Its 512 MB device memory and 200-page limit keep it suited to simple visualization rather than data-heavy recipes.
| Range of product | Harmony ST6 |
|---|---|
| Product or component type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Memory description | 512 MB device memory, 128 MB user data memory, 512 KB backup memory |
| Display size | 4 inch |
|---|---|
| Display type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display resolution | 480 x 272 pixels |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours with white |
| Brightness | 16 levels |
| Character font | ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC (+/- 20 %) |
| Power consumption in W | 6.9 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady for offline, Status LED green, steady for operating, Status LED green, flashing for operating, Status LED green, faded for stand-by, Status LED orange, flashing for software starting up, Status LED red, steady for power supply (ON), Status LED red, flashing for operating, Status LED red, off for power supply (OFF) |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C/RS485 (rate: 2400...115200 bps)bottom, COM1 serial link (rate: 2400...187500 bps)back, 1 USB 2.0 type Aback, 1 USB 2.0 type micro Bbottom, 1 Ethernet - female RJ45 - RS485 |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C, Built-in 10...90 % RH |
| Downloadable protocols | Modbus, Uni-TE, Third party protocols |
| Product brand | Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic |
| Fixing mode | By 2 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201, By 2 screws conforming to IEC 61131-2, By 2 screws conforming to IEC 61000-6-2 |
| Enclosure material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 118.5 x 92.5 mm panel cut dimension |
| Height | 108.5 mm |
| Width | 134.5 mm |
| Depth | 43 mm |
| Net weight | 0.4 kg |
| Immunity to microbreaks | 2 ms |
|---|---|
| Standards | IEC 61000-6-4, IEC 61000-6-2, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Product certifications | CSA, CE, UKCA |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2, IP65 (front panel) conforming to IEC 61131-2 |
| NEMA degree of protection | NEMA 4 front panel (indoor use), NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 9.8 m/s² (f = 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (signal ports), Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Part number | HMIST6200 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 13.700 cm |
| Package 1 Length | 18.500 cm |
| Package 1 Weight | 463.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.200 kg |
| Shipping weight | 0.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
