Part number
HMISCU8B5
$1,075.25 On request Dispatch — · From TürkiyeGet a Quote
Harmony SCU

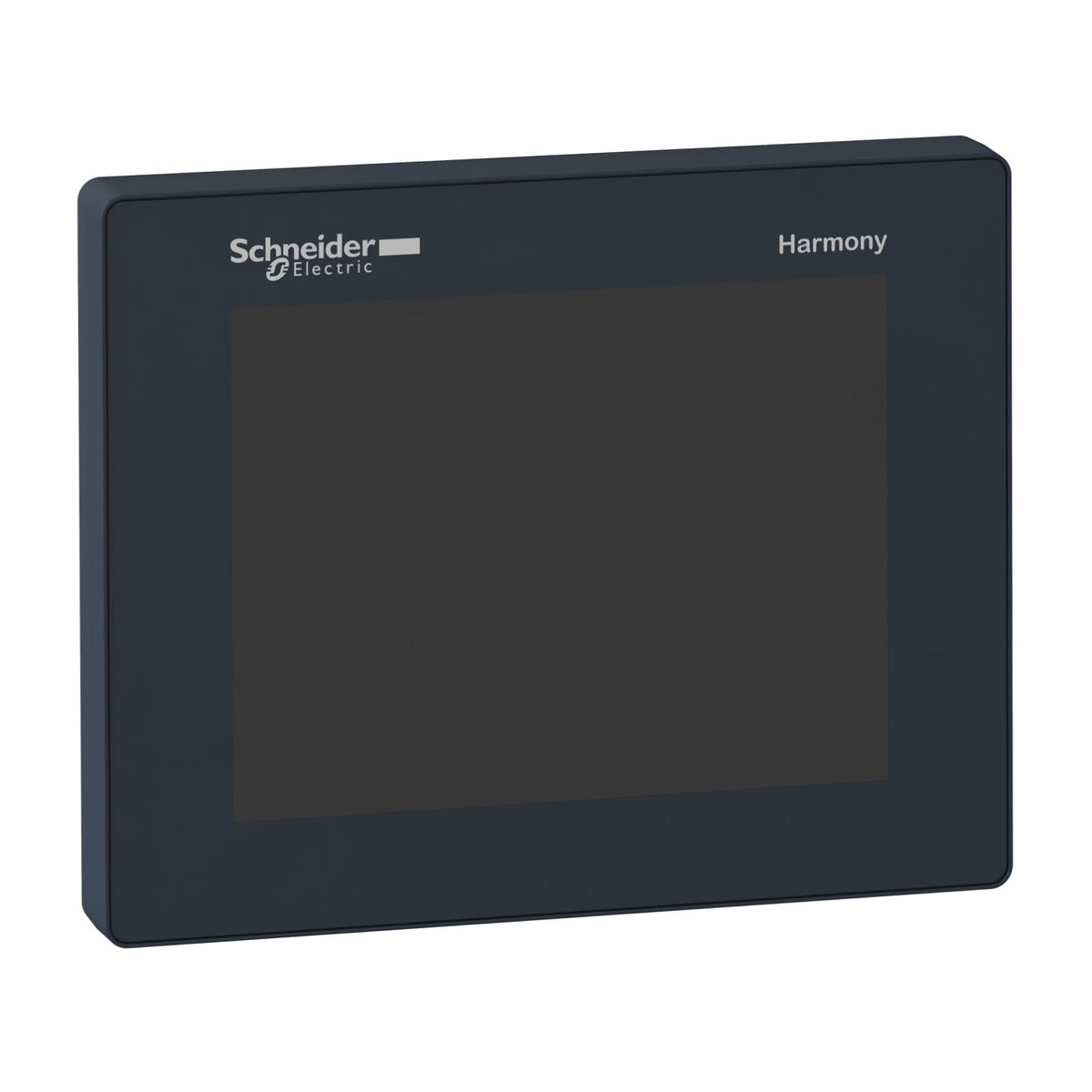

Schneider Electric HMISCU8B5 Harmony SCU 5.7-inch Controller Panel 8 DI 8 DO 4 AI 2 AO HMI Operator Panel

Harmony SCU 5.7in touch HMI controller, 8 digital + 4 analog inputs, 8 digital + 2 analog outputs, 24V DC.

Communication
1x RS232/RS485 serial, 1x Ethernet TCP/IP, CANopen master, 1x USB-A, 1x USB mini-B
Display
5.7 in colour TFT LCD touchscreen, 320x240 QVGA
EAN
3595864175584
Description

About the HMISCU8B5

The Schneider Electric HMISCU8B5 is a Harmony SCU small touch HMI controller pairing a 5.7-inch QVGA colour touchscreen with 8 digital inputs, 8 digital outputs, 4 analogue inputs, and 2 analogue outputs on one 24 V DC-powered unit. It runs CANopen, Modbus, and Modbus TCP/IP, combining the operator display and machine I/O controller in a single enclosure.

Certifications & Standards

  • CE
  • cULus
  • UL 508
  • cULus HazLoc Class I Div 2
  • KCC
  • C-Tick
  • CSA C22.2 No. 142
  • GOST
  • UKCA
  • UKEX
  • IEC 61000-6-2
  • FCC Class A
  • EN 61131-2
  • CSA C22.2 No. 213
  • ANSI/ISA 12.12.01

Selection Notes

Pick the HMISCU8B5 over the 3.5-inch digital-only model in the same range when the application needs analogue I/O — its 4 analogue inputs (including 2 RTD channels) and 2 analogue outputs handle temperature or process signals the smaller, digital-only model cannot. The larger 5.7-inch screen also suits applications with more operator-facing data per page, at the cost of roughly 60% more current draw (24 W vs 15 W).

Specification

Full specification

84 values · Last verified 30 Oct 2026

Main 6

Range of Product Harmony SCU
Product or Component Type Small touch HMI controller
Display size 5.7 inch
Display type Backlit LED colour TFT LCD
Touch panel Analogue
Device presentation Complete product

Complementary 52

Display Resolution 320 x 240 pixels QVGA
Backlight lifespan 50000 hours 65000 colours
Brightness 16 levels via touch panel
View angle horiz x vert 60° left, 60° right, 40° top, 60° bottom
Character font Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII, Korean, Taiwanese (traditional Chinese)
Supply External source
[Us] rated supply voltage 24 V 20.4…28.8 V)DC
Immunity to microbreaks 10 ms
Inrush current 30 A
Power Consumption in W 24 W
Local signalling No indicator
Number of pages Limited by internal memory capacity
Operating System Harmony
Processor name CPU RISC
Memory description Flash NAND, 128 MB, Internal data storage FRAM, 128 kB, Application run DRAM, 128 MB
Integrated connection type 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A, CANopen master bus - SUB-D 9
Realtime clock Built-in
Downloadable protocols Modbus, Modbus TCP/IP, CANopen
Fixing mode By 1 nut Ø 22 mm 1...6 mm thick panel
Enclosure Material PC/PBT and PAA
Shock resistance 147 m/s² 11 ms on DIN rail)IEC 60068-2-27, 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
Vibration resistance +/- 3.5 mm 5…9 Hz) IEC 60068-2-6, 1 gn 9…150 Hz) IEC 60068-2-6
Electromagnetic compatibility Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Discrete input number 2 fast input (normal mode) IEC 61131-2 Type 1, 6 digital input IEC 61131-2 Type 1
Discrete input voltage 24 V DC sink or source (positive/negative)
Number of common point 1 fast input (HSC mode), 1 digital input
Discrete input current 7.83 mA fast input, 5 mA digital
Input impedance 4.7 kOhm, 2.81 kOhm
Sensor power supply 15…28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA, 15…28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
Configurable filtering time 0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
Maximum input frequency 100 kHz fast input (encoder mode) A/B, 100 kHz fast input single phase, 100 kHz fast input pulse/direction
Maximum cable distance between devices Shielded cable <32.8 ft (10 m) fast input, Shielded cable <328.08 ft (100 m) digital input, Unshielded cable <164.04 ft (50 m) digital input
Connection pitch 0.1 in (3.5 mm)
Overvoltage protection With
Isolation between channels and internal logic 500 V DC
Isolation between channels None
Discrete output number 2 fast output (normal mode) source, 6 digital output source
Discrete output voltage 24 V DC 19.2...28.8 V)transistor, 24 V DC 5...30 V)relay, 220 V AC 100...250 V)relay
Input/output number 2 fast input FI0...FI1, 2 fast output FQ0...FQ1, 6 digital input DI0...DI5, 6 digital output DQ0...DQ5
Discrete output current 2 A 4 A)5 ms opening contact digital output, 2 A 4 A)2 ms closing contact digital output, 300 mA2 ms fast output (normal mode), 50 mA2 ms fast output (PWM or PTO mode)
Insulation resistance > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth
Maximum output frequency 100 kHz fast output (PTO mode), 1 kHz fast output (PWM mode)
Absolute accuracy error +/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode), 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode), +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode), +/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode), +/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)
Analogue input number 2 analog input, 2 RTDs
Analogue input range 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %), -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
Analogue input type RTD - 200...600 °C 16 bitsPt 100/Pt 1000, RTD - 50...200 °C 16 bitsNi 100/Ni 1000, RTD - 200...760 °C 16 bits thermocouple J), RTD - 240...1370 °C 16 bits thermocouple K), RTD 0...1600 °C 16 bits thermocouple R), RTD 200...1800 °C 16 bits thermocouple B), RTD 0...1600 °C 16 bits thermocouple S), RTD - 200...400 °C 16 bits thermocouple T), RTD - 200...900 °C 16 bits thermocouple E), RTD - 200...1300 °C 16 bits thermocouple N)
Analogue output number 2 resistive load 12 bits + sign
Analogue output range 0...20 mA/4...20 mA > 300 Ohm)open-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit
Height 5.09 in (129.4 mm)
Width 6.4 in (163 mm)
Depth 3.0008 in (76.22 mm)
Net Weight 1.770 lb(US) (0.803 kg)

Environment 13

Standards FCC Class A, EN 61131-2, UL 508, IEC 61000-6-2, CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12-12-01
Product Certifications cULus 508, cULus CSA 22-2 No 142, GOST, cUL 1604 Class 1 Division 2, C-tick, KCC, UKCA, UKEX
Marking CE
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Ambient Air Temperature for Storage -4…140 °F (-20…60 °C)
Relative humidity 5…85 % without condensation
Operating altitude <= 6561.68 ft (2000 m)
Storage altitude 0…32808.4 ft (0…10000 m)
Maximum pressure 800...1114 hPa
IP degree of protection IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
NEMA degree of protection NEMA 4X front panel
Pollution degree 2 IEC 60664
Environmental characteristic Corrosive gas free
Show all 84 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number HMISCU8B5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595864175584

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.803 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMISCU8B5

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CSA
  • UKCA
  • FCC Class A
  • EN 61131-2
  • UL 508
  • IEC 61000-6-2
  • CSA C22.2 No 213 Class I Division 2
  • ANSI/ISA 12-12-01
Quick answers

Questions about the HMISCU8B5

What is the HS code of HMISCU8B5 for customs?

The tariff (HS) code on file for HMISCU8B5 is 852859.

What is the EAN of HMISCU8B5?

The EAN (GTIN) of HMISCU8B5 is 3595864175584.

Where does HMISCU8B5 ship from, and how fast?

HMISCU8B5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
