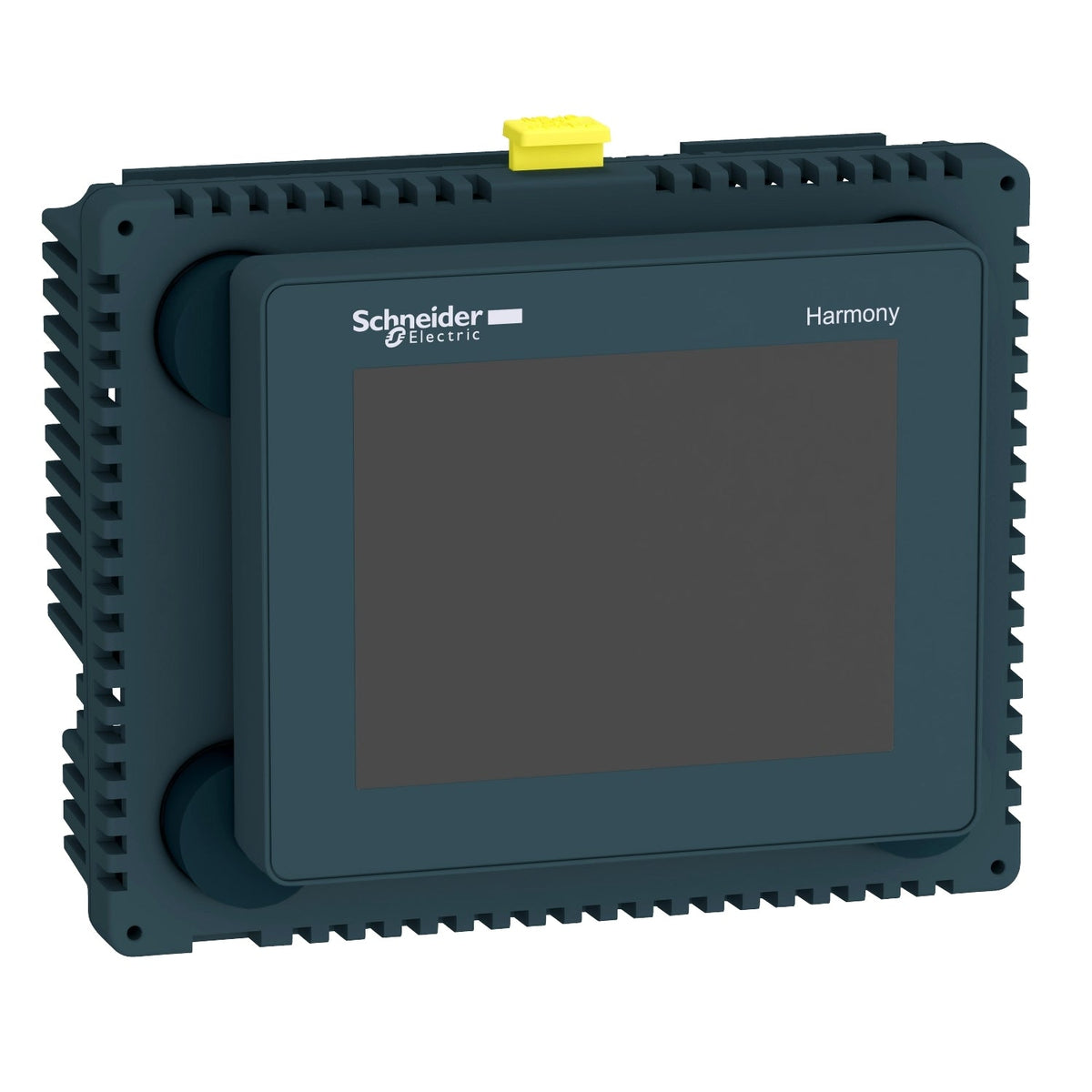

Schneider Electric HMISCU6B5 Harmony SCU 3.5-inch Color Touch Controller Panel 8 DI 8 DO HMI Operator Panel

The Schneider Electric HMISCU6B5 is a 3.5-inch Harmony SCU color touch controller panel combining a 320 x 240 QVGA display with 8 digital inputs, 8 digital outputs, 4 analogue inputs, and 2 analogue outputs. It runs on 24 V DC, uses an ARM926EJ-S processor, and connects via RS232/RS485, Ethernet TCP/IP, CANopen, and USB for compact machine control.

Technical Specifications

Certifications & Standards

• CE
• cULus
• cUL 1604 Class I Div 2
• C-Tick
• GOST
• KCC
• cULus 508
• UKCA
• UKEX
• CSA C22.2 No. 213
• EN 61131-2
• IEC 61000-6-2
• ANSI/ISA 12-12-01
• UL 508
• FCC Class A

Selection Notes

The HMISCU6B5 packs a full discrete and analogue I/O set, 8 DI, 8 DO, 4 AI, 2 AO, behind a 3.5-inch display, so it functions as a combined HMI-plus-controller on compact machines rather than a display-only panel. Choose the larger HMISCU8A5 (5.7-inch, 16 DI/10 DO) when the application needs more I/O points or a bigger screen on the same SCU architecture. CANopen master and Modbus TCP/IP support let it supervise simple distributed I/O without a separate PLC.
