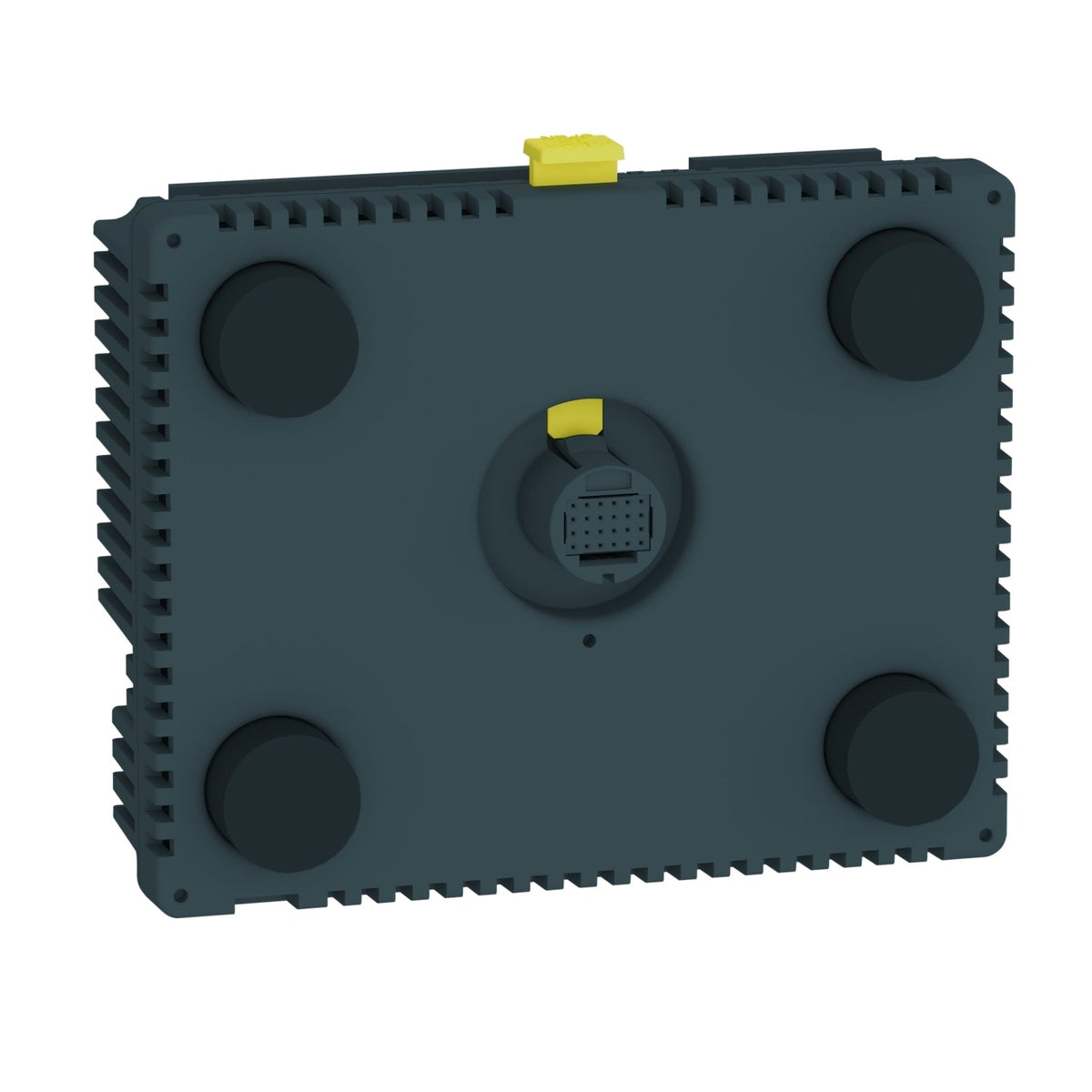

Schneider Electric HMISBC Harmony SCU Rear Controller Module 8 DI 8 DO Analog I/O HMI Operator Panel

The Schneider Electric HMISBC is the rear controller module of the Harmony SCU range, providing 8 digital inputs, 8 digital outputs, 4 analogue inputs, and 2 analogue outputs without its own display; it pairs with a separate Harmony SCU front display module. It runs on 24 V DC with a RISC processor and connects via RS232/RS485, Ethernet TCP/IP, CANopen, and USB.

Technical Specifications

Certifications & Standards

• CE
• cULus 508
• cUL 1604 Class I Div 2
• C-Tick
• cULus
• GOST
• KCC
• UKCA
• UKEX
• UL 508
• FCC Class A
• EN 61131-2
• CSA C22.2 No. 213
• ANSI/ISA 12-12-01
• IEC 61000-6-2

Selection Notes

The HMISBC is a bare rear controller, it has no display of its own and is designed to pair with a separate Harmony SCU front display module to form a complete HMI-plus-controller pair. It carries the same 8 DI / 8 DO / 4 AI / 2 AO I/O set and CANopen/Modbus TCP/IP connectivity as the all-in-one HMISCU6B5, so specify it when the front module needs to be sourced or replaced independently of the controller electronics. At 0.398 kg it is also the lightest unit in this SCU family comparison.
