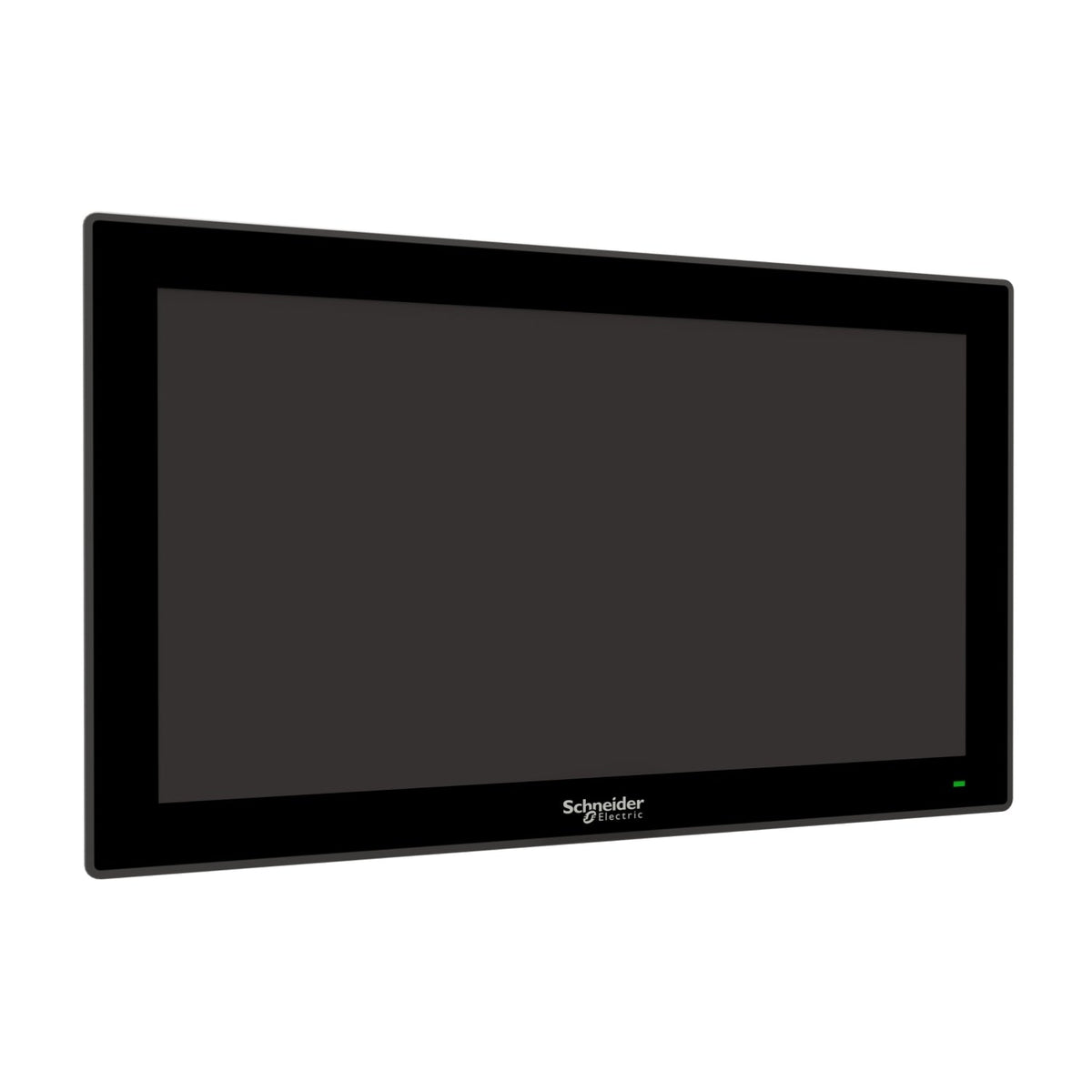

The Schneider Electric HMIPSPS752D1X01 is a 15.6-inch wide performance panel PC in the Harmony EP5 range, built around an Intel Core i5 processor with 8 GB RAM and a 128 GB mSATA SSD. The fanless, passively cooled unit has a 1366 x 768 FWXGA color TFT display, runs on 12...24 V DC, and ships with Windows 10 and EcoStruxure Machine SCADA Expert run time (HMI/SCADA license not included).
The HMIPSPS752D1X01 is the performance-tier Harmony EP5 panel PC; choose the Core i5 / 8 GB configuration when the SCADA project is running heavier SCADA logic, more concurrent trends/alarms, or multiple screens that benefit from extra CPU and RAM, and the Celeron Optimized variant otherwise. Both share the same 15.6-inch fanless enclosure, so the choice between them is purely a processing-power decision, not a form-factor one.
The fanless, passively cooled design and IP65 front rating suit panel-door mounting on production-line SCADA stations, while the 12...24 V DC input matches standard control-cabinet power distribution without a separate AC supply. The 400 cd/m2 luminance and 160 x 170 degree viewing angle keep the screen readable from the side in a walk-by control-room layout, and the aluminum alloy housing is rated for continuous duty in a cabinet environment.
| Range of product | Harmony EP5 |
|---|---|
| Product or component type | Touch panel screen |
| Software package | EcoStruxure Machine SCADA Expert run time HMI/SCADA license not included |
| Data storage equipment | 128 GB mSATA SSD |
| Number of points | 1 |
|---|---|
| Display size | 15.6 inch |
| Aspect ratio | 16:9 |
| Display type | Colour TFT LCD, LED |
| Display resolution | 1366 x 768 pixels FWXGA |
| Display colour | 16777216 colors |
| Touch panel | Single touch analogue resistive |
| Luminance | 400 cd/m² |
| View angle horizontal x vertical | 160 x 170° |
| Pixel resolution | 1366 x 768 |
| Material | Aluminium alloy |
| [Us] rated supply voltage | 12...24 V DC - 15...20 % |
| [In] rated current | 1.9 A |
| Type of cooling | Passive, Fanless |
| Main type | Performance |
| Watchdog timer | 1…255 ms |
| Fixing mode | Panel mounting: by clips and screws (0...50 °C) |
| Cut-out dimensions | 390 x 244 mm |
| Width | 400 mm |
| Depth | 50.5 mm |
| Height | 254 mm |
| Net weight | 3.79 kg |
| Directives | 2006/95/EC - low voltage directive |
| Standards | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-6-4, IEC 61000-6-5 |
|---|---|
| IP degree of protection | IP65 front panel:, IP20 rear panel: |
| Part number | HMIPSPS752D1X01 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 44.500 cm |
| Package 1 Width | 17.500 cm |
| Package 1 Length | 60.400 cm |
| Package 1 Weight | 5.405 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 26.215 kg |
| Pallet unit layers | 4 |
| Pallet layers | 2 |
| Shipping weight | 3.79 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for HMIPSPS752D1X01 is 852859.
HMIPSPS752D1X01 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
