Part number
HMIPSOS752D1W01
$3,746.93 On request Dispatch — · From TürkiyeGet a Quote
Harmony EP5

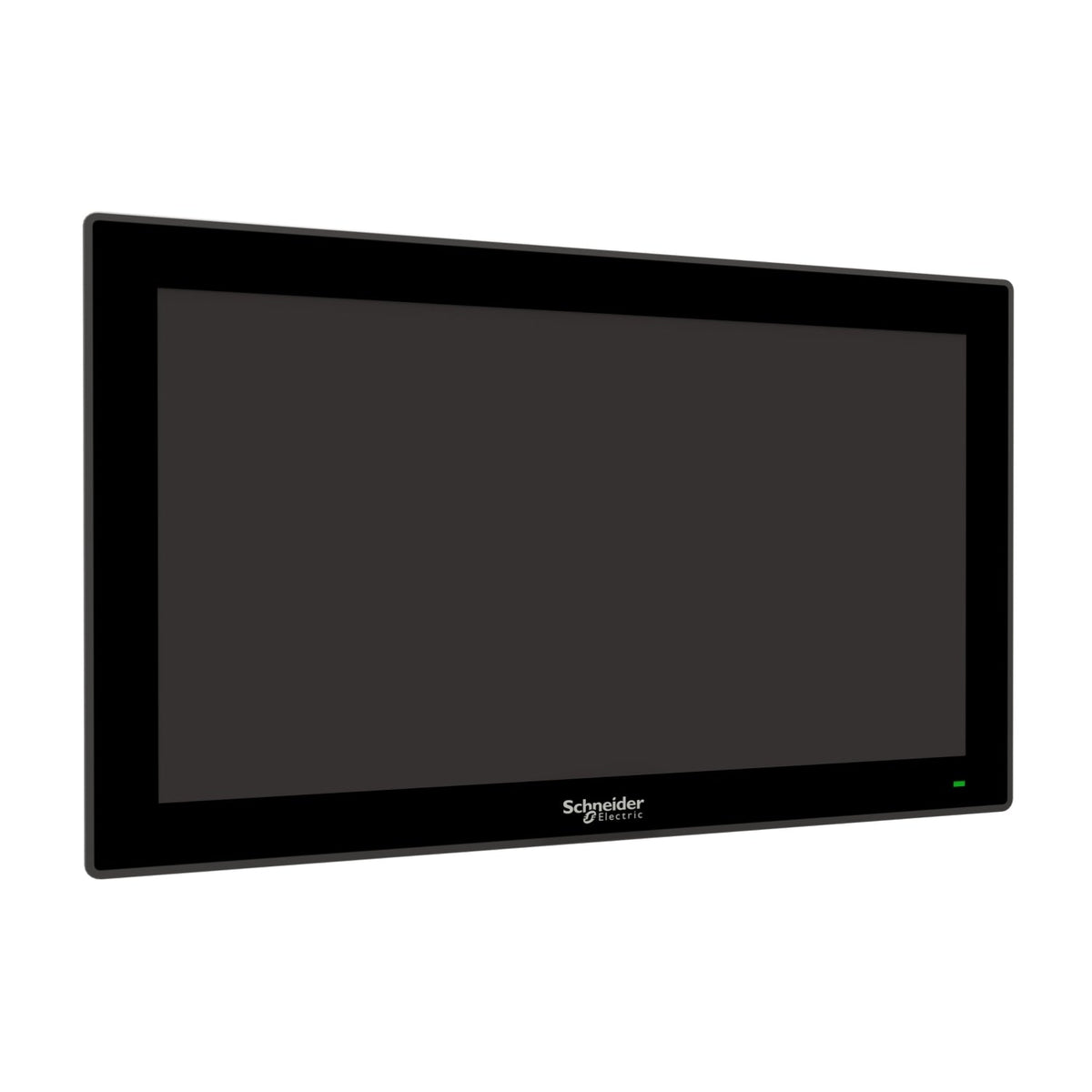

Schneider Electric HMIPSOS752D1W01 Harmony EP5 Optimized Panel PC 15.6-inch Celeron 4GB HMI Operator Panel

15.6-inch Harmony EP5 optimized panel PC, Celeron, 4 GB RAM, 128GB SSD, fanless, IP65 front.

Communication
Ethernet x2, USB x4, COM x2
Display
15.6-inch color TFT LED, 1366 x 768 (FWXGA), 16.7M colors, single-touch resistive
Description

About the HMIPSOS752D1W01

The Schneider Electric HMIPSOS752D1W01 is a 15.6-inch wide optimized panel PC in the Harmony EP5 range, built around an Intel Celeron processor with 4 GB RAM and a 128 GB mSATA SSD. The fanless, passively cooled unit has a 1366 x 768 FWXGA color TFT display, runs on 12...24 V DC, and ships with Windows 10 and EcoStruxure Machine SCADA Expert run time (HMI/SCADA license not included).

Certifications & Standards

  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-6-4
  • IEC 61000-6-5

Selection Notes

The HMIPSOS752D1W01 is the optimized-tier Harmony EP5 panel PC; choose the Celeron / 4 GB configuration when the SCADA project is a lighter HMI/visualization load that does not need multi-core headroom, and the Core i5 Performance variant otherwise. Both share the same 15.6-inch fanless enclosure, so the choice between them is purely a processing-power decision, not a form-factor one.

Applications

The fanless, passively cooled design and IP65 front rating suit panel-door mounting on production-line SCADA stations, while the 12...24 V DC input matches standard control-cabinet power distribution without a separate AC supply. The 400 cd/m2 luminance and 160 x 170 degree viewing angle keep the screen readable from the side in a walk-by control-room layout, and the aluminum alloy housing is rated for continuous duty in a cabinet environment.

Specification

Full specification

55 values · Last verified 30 Oct 2026

Main 4

Range of product Harmony EP5
Product or component type Optimized touchscreen panel
Software package EcoStruxure Machine SCADA Expert run time HMI/SCADA license not included
Data storage equipment 128 GB mSATA SSD

Complementary 24

Number of points 1
Display size 15.6 inch
Aspect ratio 16:9
Display type Colour TFT LCD, LED
Display resolution 1366 x 768 pixels FWXGA
Display colour 16777216 colors
Touch panel Single touch analogue resistive
Luminance 400 cd/m²
View angle horizontal x vertical 160 x 170°
Pixel resolution 1366 x 768
Material Aluminium alloy
[Us] rated supply voltage 12...24 V DC - 15...20 %
[In] rated current 1.9 A
Type of cooling Passive, Fanless
Video controller type Intel HD Graphics 510
Main type Optimised
Watchdog timer 1…255 ms
Fixing mode Panel mounting: by clips and screws (0...50 °C)
Cut-out dimensions 390 x 244 mm
Width 400 mm
Depth 50.5 mm
Height 254 mm
Net weight 3.79 kg
Directives 2006/95/EC - low voltage directive

Environment 2

Standards IEC 61000-4-2, IEC 61000-4-3, IEC 61000-6-4, IEC 61000-6-5
IP degree of protection IP65 front panel:, IP20 rear panel:
Show all 55 specifications ↓ Show less ↑25 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number HMIPSOS752D1W01
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 18

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 44.500 cm
Package 1 Width 17.500 cm
Package 1 Length 60.400 cm
Package 1 Weight 5.391 kg
Unit Type of Package 2 S06
Number of Units in Package 2 3
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 26.173 kg
Pallet unit layers 4
Pallet layers 2
Shipping weight 3.79 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMIPSOS752D1W01

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-6-4
  • IEC 61000-6-5
Quick answers

Questions about the HMIPSOS752D1W01

What is the HS code of HMIPSOS752D1W01 for customs?

The tariff (HS) code on file for HMIPSOS752D1W01 is 852859.

Where does HMIPSOS752D1W01 ship from, and how fast?

HMIPSOS752D1W01 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
