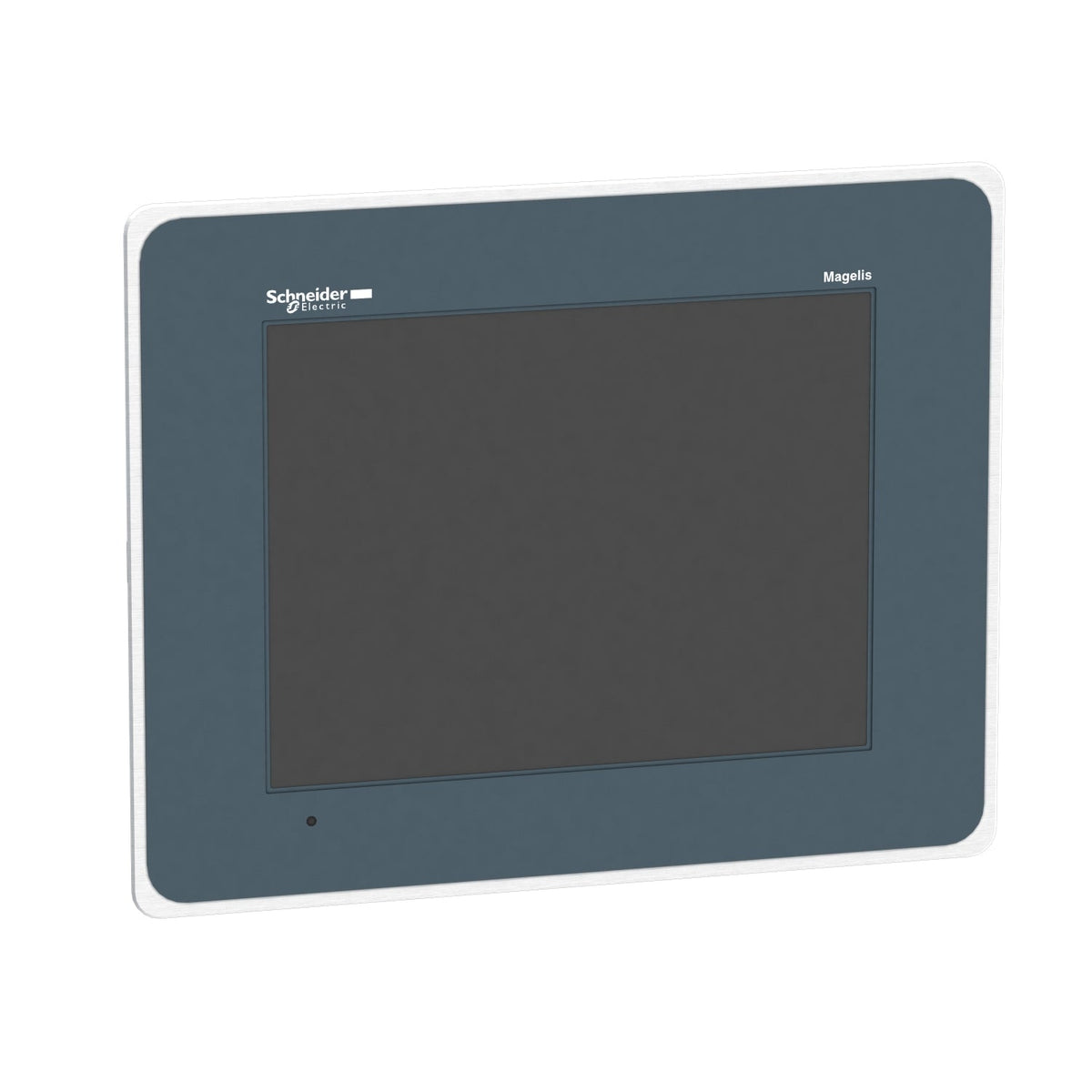

The Schneider Electric HMIGTO6315 is a 12.1-inch advanced touchscreen panel in the Harmony GTO range, with a 800 x 600 (SVGA) backlit color TFT display, 65,536 colors and 96 MB flash memory. It runs on 24 V DC, supports Modbus, Uni-TE and third-party protocols for Mitsubishi, Omron, Rockwell and Siemens controllers, and has a stainless steel 304 front for washdown/food environments.
The HMIGTO6315 uses a stainless steel 304 front with IP66K ingress protection, so pick it over the equivalent PPT-front GTO panel when the enclosure sits in a washdown, food-grade or corrosive area; the plastic-front variant is the lower-cost choice for a standard cabinet door.
The multi-brand downloadable protocol list (Mitsubishi, Omron, Rockwell, Siemens) makes this panel a drop-in replacement on retrofits where the existing PLC is not from Schneider Electric. The SD/SDHC card slot (up to 32 GB) allows recipe, trend and alarm log storage directly on the panel without a PC connection, which suits unattended machine cells and remote skids.
| Range of Product | Harmony GTO |
|---|---|
| Product or Component Type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 12.1 inch |
| Supply | External source |
| Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) |
| Provided Equipment | 1 protective cover |
| Processor name | ARM926EJ-S |
| Software package | Vijeo Designer |
| Terminal type | Touchscreen display |
|---|---|
| Display Type | Backlit colour TFT LCD |
| Display Resolution | 800 x 600 pixels SVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white 77 °F (25 °C) |
| Brightness | 16 levels by touch panel, 16 levels by software |
| Character font | Japanese (ANK, Kanji), ASCII (European characters), Taiwanese (traditional Chinese), Chinese (simplified Chinese), Korean |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Maximum power consumption in W | 12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W |
| Local signalling | Status LED green, steady offline, Status LED green, steady operating, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed |
| Memory description | Flash EPROM, 96 MB |
| Data backed up | 512 KB internal RAM SRAM) |
| Data storage equipment | SD card, <= 32 GB, SDHC card, <= 32 GB |
| Downloadable protocols | Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP |
| Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B |
| Product mounting | Flush mounting |
| Fixing mode | by 8 nuts, by 4 L brackets |
| Front material | Stainless steel 304 |
| Enclosure Material | PPT |
| Type of cooling | Natural convection |
| Width | 14.1 in (359 mm) |
| Height | 11.2 in (285 mm) |
| Depth | 2.2 in (56 mm) |
| Net Weight | 6.6 lb(US) (3 kg) |
| Standards | IEC 61000-6-2, UL 508, IEC 61131-2 |
|---|---|
| Product Certifications | CE, C-tick, cULus, KCC, UKCA, UKEX |
| Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | < 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 60529 rear panel), IP66K IEC 60529 front panel), IP66K DIN 40050-9 front panel) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2 |
| Vibration resistance | 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 |
| Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
| Part number | HMIGTO6315 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595864150314 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 3.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
