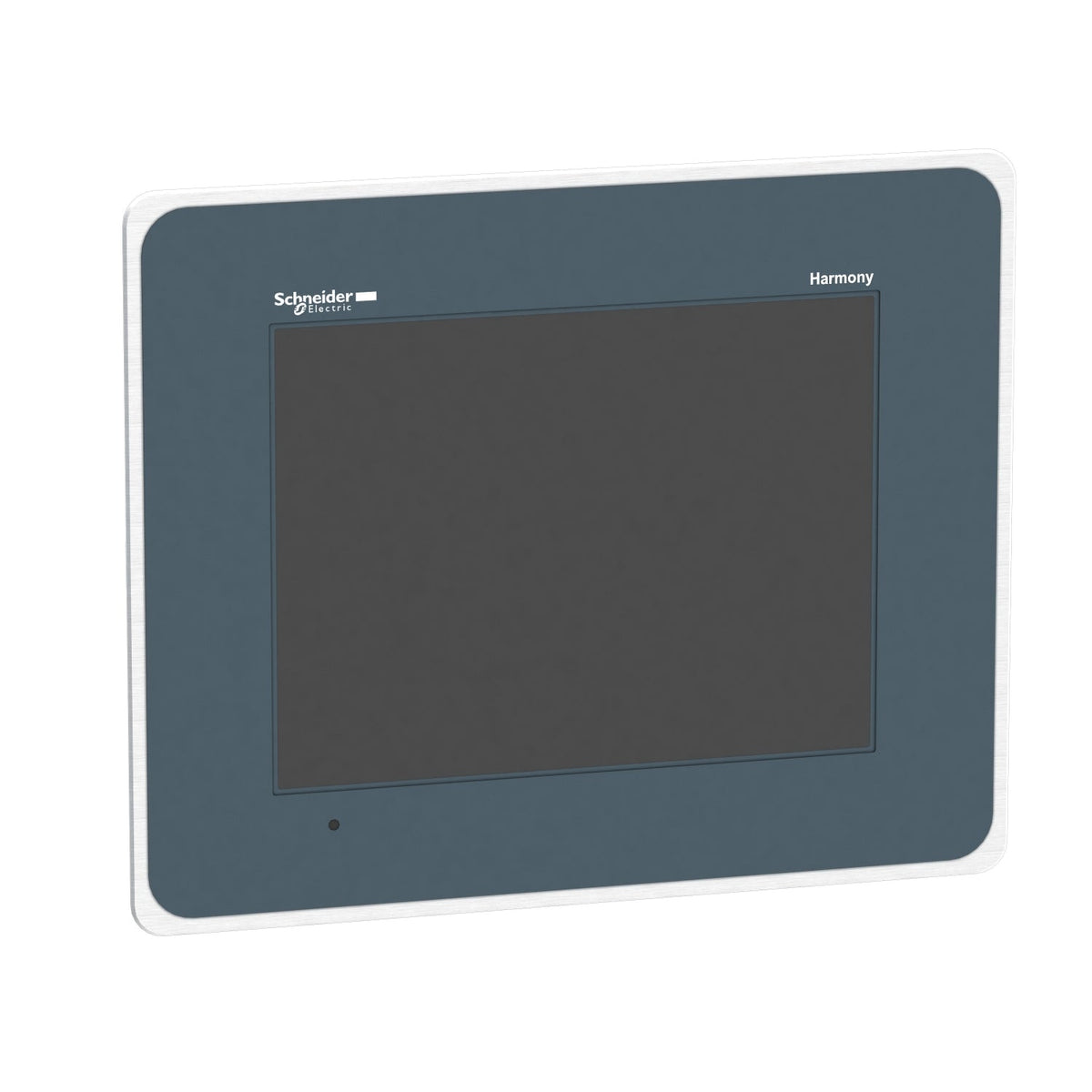

The Schneider Electric HMIGTO5315 is a 10.4-inch advanced touchscreen panel in the Harmony GTO range, with a 640 x 480 (VGA) backlit color TFT display, 65,536 colors and 96 MB flash memory. It runs on 24 V DC, supports Modbus, Uni-TE and third-party protocols for Mitsubishi, Omron, Rockwell and Siemens controllers, and has a stainless steel 304 front for washdown/food environments.
The HMIGTO5315 uses a stainless steel 304 front with IP66K ingress protection, so pick it over the equivalent PPT-front GTO panel when the enclosure sits in a washdown, food-grade or corrosive area; the plastic-front variant is the lower-cost choice for a standard cabinet door.
The multi-brand downloadable protocol list (Mitsubishi, Omron, Rockwell, Siemens) makes this panel a drop-in replacement on retrofits where the existing PLC is not from Schneider Electric. The SD/SDHC card slot (up to 32 GB) allows recipe, trend and alarm log storage directly on the panel without a PC connection, which suits unattended machine cells and remote skids.
| Range of product | Harmony GTO |
|---|---|
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 10.4 inch |
| Supply | External source |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
| Provided equipment | 1 protective cover |
| Processor name | ARM926EJ-S |
| Software package | Vijeo Designer |
| Terminal type | Touchscreen display |
|---|---|
| Display type | Backlit colour TFT LCD |
| Display resolution | 640 x 480 pixels VGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
| Brightness | 16 levels - control by touch panel, 16 levels - control by software |
| Character font | Chinese (simplified Chinese), Japanese (ANK, Kanji), Taiwanese (traditional Chinese), Korean, ASCII |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Maximum power consumption in W | 12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W |
| Local signalling | Status LED green, steady for offline, Status LED green, steady for operating, Status LED orange, flashing for software starting up, Status LED red, steady for power supply (ON), Status LED clear, faded for power supply (OFF), COM2 LED yellow, steady for data is being transmitted, COM2 LED yellow, faded for no data transmission, SD card LED green, steady for card is inserted, SD card LED green, faded for card is not inserted or is not being accessed |
| Memory description | Flash EPROM, 96 MB |
| Data backed up | 512 KB internal RAM (SRAM) |
| Data storage equipment | SD card, <= 32 GB, SDHC card, <= 32 GB |
| Downloadable protocols | Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP |
| Integrated connection type | COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, Ethernet RJ45, interface: 10BASE-T/100BASE-TX, Ethernet RJ45, interface: IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B |
| Product mounting | Flush mounting |
| Fixing mode | By 8 nuts, By 4 L brackets |
| Front material | Stainless steel 304 |
| Enclosure material | PPT |
| Type of cooling | Natural convection |
| Width | 316.5 mm |
| Height | 258.5 mm |
| Depth | 57 mm |
| Net weight | 2.5 kg |
| Standards | IEC 61131-2, IEC 61000-6-2, UL 508 |
|---|---|
| Product certifications | C-Tick, cULus, CE, KCC, UKCA, UKEX |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | < 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529, IP66K (front panel) conforming to IEC 60529, IP66K (front panel) conforming to DIN 40050-9 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2 |
| Vibration resistance | 3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 6 kV contact discharge conforming to IEC 61000-4-2 level 3 |
| Part number | HMIGTO5315 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.000 cm |
| Package 1 Width | 30.000 cm |
| Package 1 Length | 35.500 cm |
| Package 1 Weight | 3.439 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 115.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 115.170 kg |
| Shipping weight | 2.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for HMIGTO5315 is 852859.
HMIGTO5315 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
