Part number
HMIGTO3510
$1,042.36 On request Dispatch — · From TürkiyeGet a Quote
Harmony GTO

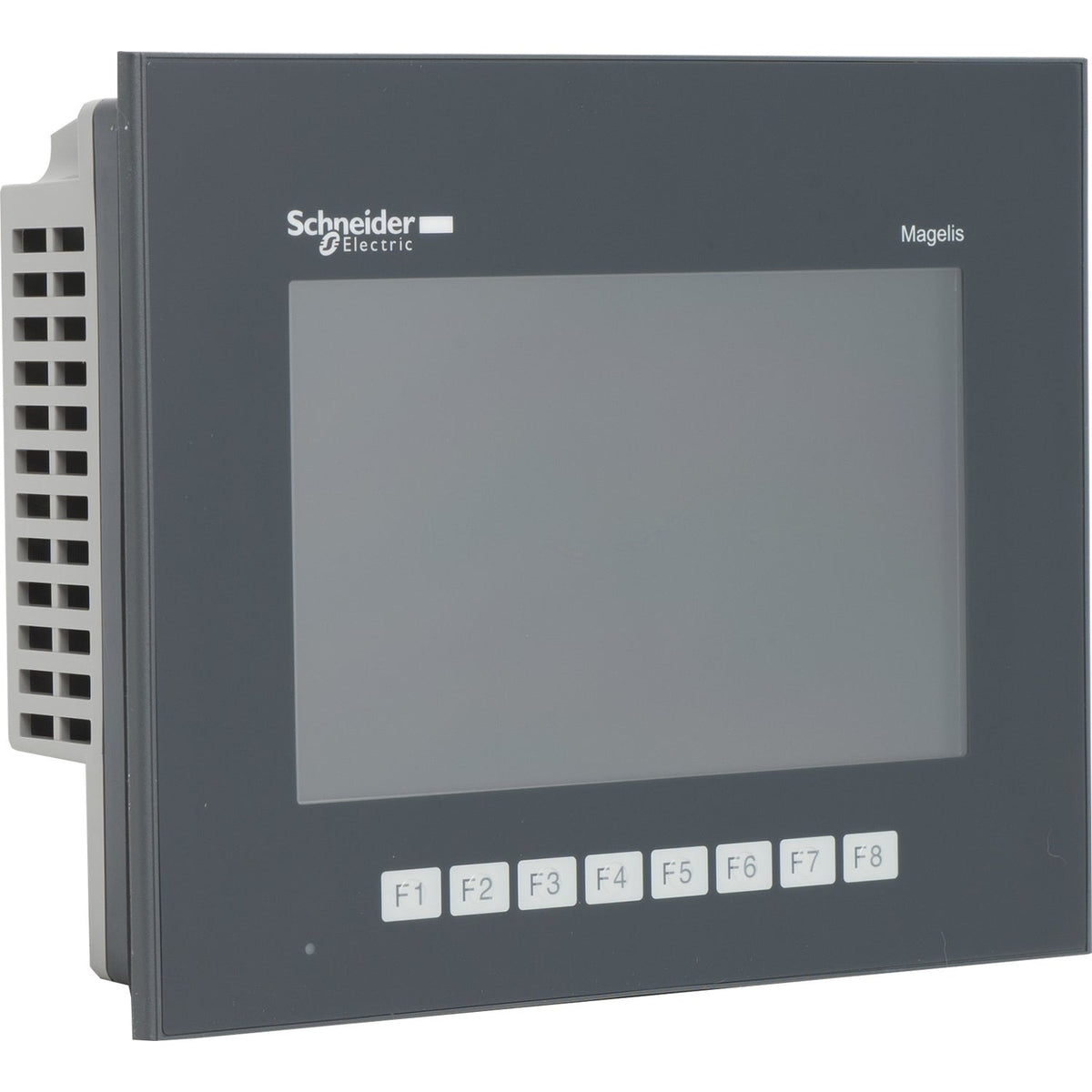

Schneider Electric HMIGTO3510 Harmony GTO 7-inch WVGA 800x480 Touch Panel 96MB HMI Operator Panel

7-inch Harmony GTO touchscreen, WVGA, 96MB flash, Ethernet, Modbus, 24V DC.

Communication
COM1 (RS-232C), COM2 (RS-485), Ethernet 10/100BASE-TX, USB 2.0 Type A, USB 2.0 Mini-B
Display
7-inch backlit color TFT LCD, 800 x 480 (WVGA), 65,536 colors, resistive touch
EAN
3595864150260
Description

About the HMIGTO3510

The Schneider Electric HMIGTO3510 is a 7-inch advanced touchscreen panel in the Harmony GTO range, with a 800 x 480 (WVGA) backlit color TFT display, 65,536 colors and 96 MB flash memory. It runs on 24 V DC, supports Modbus, Uni-TE and third-party protocols for Mitsubishi, Omron, Rockwell and Siemens controllers, and has a PPT plastic front.

Certifications & Standards

  • CE
  • cULus
  • KCC
  • C-Tick
  • UKCA
  • UKEX
  • UL 508
  • IEC 61131-2
  • IEC 61000-6-2

Selection Notes

The HMIGTO3510 is the 7-inch member of the Harmony GTO line; choose it over the smaller or larger panels in the range purely on cut-out size and viewing distance, since the communication set (Modbus, Ethernet, multi-brand third-party protocols) is identical across the family.

Applications

The multi-brand downloadable protocol list (Mitsubishi, Omron, Rockwell, Siemens) makes this panel a drop-in replacement on retrofits where the existing PLC is not from Schneider Electric. The SD/SDHC card slot (up to 32 GB) allows recipe, trend and alarm log storage directly on the panel without a PC connection, which suits unattended machine cells and remote skids.

Specification

Full specification

60 values · Last verified 30 Oct 2026

Main 9

Range of Product Harmony GTO
Product or Component Type Advanced touchscreen panel
Display colour 65536 colours
Display size 7 inch
Supply External source
Control Button Type 8 operation defined using Vijeo Designer push-button key F1...F8
Battery type Lithium internal RAM 100 days 5 day(s) 10 year(s)
Processor name ARM926EJ-S
Software package Vijeo Designer

Complementary 27

Terminal type Touchscreen display
Display Type Backlit colour TFT LCD
Display Resolution 800 x 480 pixels WVGA
Touch sensitive zone 1024 x 1024
Touch panel Resistive film, 1000000 cycles
Backlight lifespan 50000 hours white 77 °F (25 °C)
Brightness 16 levels by touch panel, 16 levels by software
Character font Taiwanese (traditional Chinese), ASCII, Chinese (simplified Chinese), Japanese (ANK, Kanji), Korean
[Us] rated supply voltage 24 V DC
Supply voltage limits 19.2…28.8 V
Inrush current 30 A
Maximum power consumption in W 8 W when power is not supplied to external devices, 5 W when backlight is OFF, 5.5 W when backlight is dimmed, 12 W
Local signalling Status LED green, steady offline, Status LED green, steady operating, Status LED orange, flashing software starting up, Status LED red, steady power supply (ON), Status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
Memory description Flash EPROM, 96 MB
Data backed up 128 kB internal RAM SRAM)
Data storage equipment SD card, <= 32 GB, SDHC card, <= 32 GB
Downloadable protocols Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
Integrated connection type COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
Product mounting Flush mounting
Fixing mode by 4 screw clamps
Front material PPT
Enclosure Material PPT
Type of cooling Natural convection
Width 8.6 in (218 mm)
Height 6.8 in (173 mm)
Depth 2.4 in (60 mm)
Net Weight 2.6 lb(US) (1.2 kg)

Environment 11

Standards UL 508, IEC 61000-6-2, IEC 61131-2
Product Certifications CE, C-tick, KCC, cULus, UKCA, UKEX
Ambient Air Temperature for Operation 32…122 °F (0…50 °C)
Ambient air temperature for storage -4…140 °F (-20…60 °C)
Relative humidity 10…90 % without condensation
Operating altitude < 6561.68 ft (2000 m)
IP degree of protection IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
NEMA degree of protection NEMA 4X front panel (indoor use)
Shock resistance 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
Vibration resistance 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Resistance to electrostatic discharge 6 kV contact discharge IEC 61000-4-2 level 3
Show all 60 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number HMIGTO3510
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595864150260

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 1.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMIGTO3510

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • UL 508
  • IEC 61000-6-2
  • IEC 61131-2
Quick answers

Questions about the HMIGTO3510

What is the HS code of HMIGTO3510 for customs?

The tariff (HS) code on file for HMIGTO3510 is 852859.

What is the EAN of HMIGTO3510?

The EAN (GTIN) of HMIGTO3510 is 3595864150260.

Where does HMIGTO3510 ship from, and how fast?

HMIGTO3510 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
