Part number
HMIGTO2315
$2,255.50 On request Dispatch — · From TürkiyeGet a Quote
Harmony GTO

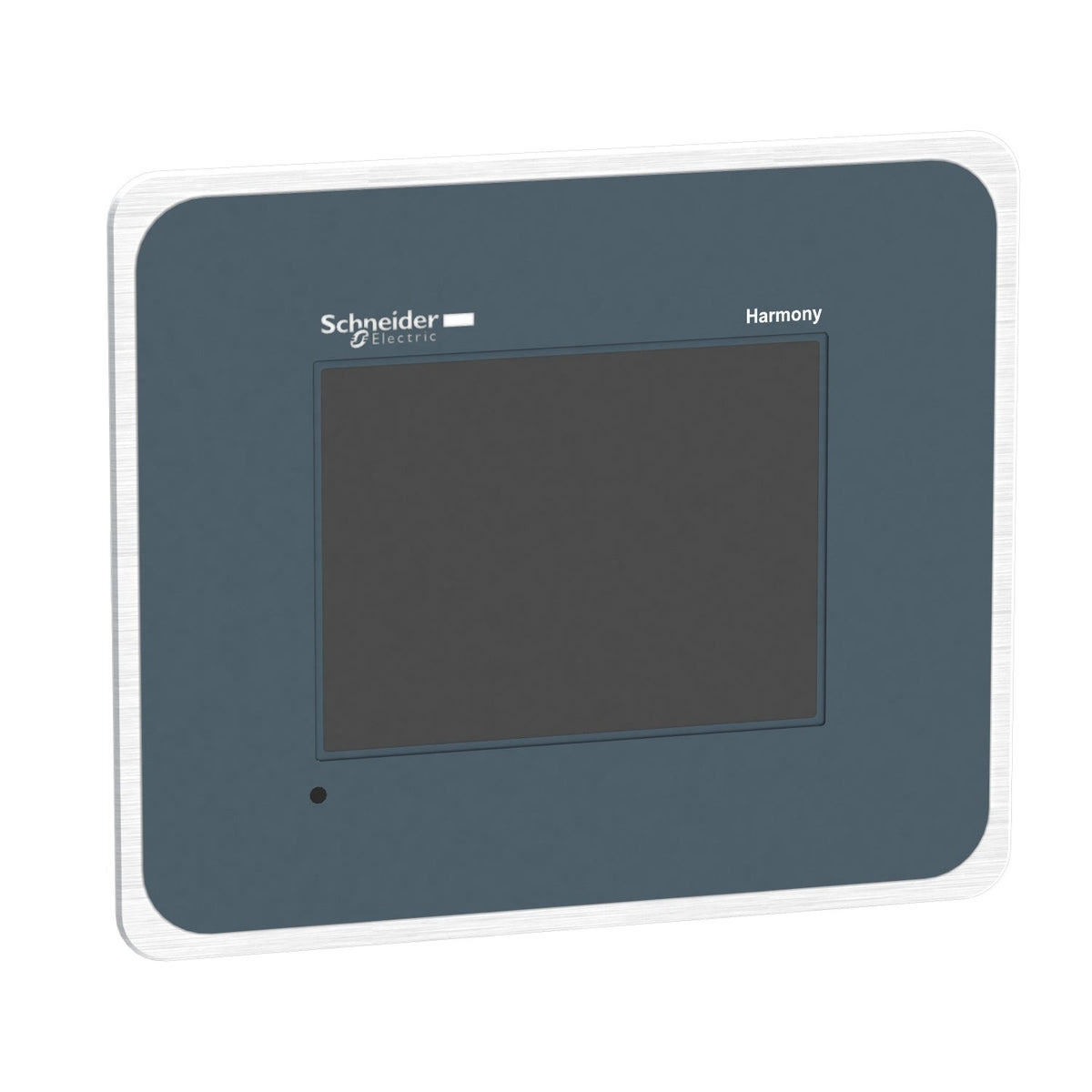

Schneider Electric HMIGTO2315 Harmony GTO 5.7-Inch QVGA 320 x 240 Stainless Touch Panel HMI Operator Panel

Schneider Electric HMIGTO2315 Harmony GTO, 5.7-inch QVGA, stainless front, Ethernet, NEMA 4X.

Communication
Ethernet RJ45 10BASE-T/100BASE-TX, COM1 (RS232C), COM2 (RS485), USB 2.0 type A, USB 2.0 Mini-B
Display
5.7-inch TFT, 320 x 240 (QVGA), 65,536 colors
Description

About the HMIGTO2315

The HMIGTO2315 is a Schneider Electric Harmony GTO advanced touchscreen panel: a 5.7-inch stainless-steel-front HMI with 320 x 240 pixel QVGA resolution and 65,536 colors. It runs on an ARM926EJ-S processor with 96 MB flash memory, takes a 24 V DC supply, and is configured through Vijeo Designer, with Ethernet, RS232C, and RS485 ports built in for machine-level connections.

Certifications & Standards

  • KCC
  • CE
  • cULus
  • C-Tick
  • UKCA
  • UKEX
  • IEC 61000-6-2
  • UL 508
  • IEC 61131-2

Selection Notes

The stainless steel 304 front and NEMA 4X rating set the HMIGTO2315 apart from plastic-front panels: choose it for washdown areas, food and beverage lines, or corrosive environments where a painted or polycarbonate bezel would corrode or discolor. The Ethernet RJ45 port supports Modbus TCP to a PLC alongside the legacy RS232C/RS485 serial ports, so it bridges older serial-only controllers and newer Ethernet-based automation without a protocol gateway. At 320 x 240 QVGA, the screen suits status, alarm, and simple parameter display rather than dense multi-trend graphing; a Harmony ET6 panel is the better fit where a larger, higher-resolution screen is needed instead of a stainless, washdown-rated front.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 9

Range of product Harmony GTO
Product or component type Advanced touchscreen panel
Display colour 65536 colours
Display size 5.7 inch
Supply External source
Battery type Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)
Provided equipment 1 protective cover
Processor name ARM926EJ-S
Software package Vijeo Designer

Complementary 27

Terminal type Touchscreen display
Display type Backlit colour TFT LCD
Display resolution 320 x 240 pixels QVGA
Touch sensitive zone 1024 x 1024
Touch panel Resistive film, 1000000 cycles
Backlight lifespan 50000 hours white at 25 °C
Brightness 16 levels - control by touch panel, 16 levels - control by software
Character font Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII, Korean
[Us] rated supply voltage 24 V DC
Supply voltage limits 19.2…28.8 V
Inrush current 30 A
Maximum power consumption in W 6.5 W when power is not supplied to external devices, 4.5 W when backlight is OFF, 5 W when backlight is dimmed, 10.5 W
Local signalling Status LED green, steady for offline, Status LED green, steady for operating, Status LED orange, flashing for software starting up, Status LED red, steady for power supply (ON), Status LED clear, faded for power supply (OFF), COM2 LED yellow, steady for data is being transmitted, COM2 LED yellow, faded for no data transmission, SD card LED green, steady for card is inserted, SD card LED green, faded for card is not inserted or is not being accessed
Memory description Flash EPROM, 96 MB
Data backed up 512 KB internal RAM (SRAM)
Data storage equipment SD card, <= 32 GB, SDHC card, <= 32 GB
Downloadable protocols Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
Integrated connection type COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, Ethernet RJ45, interface: 10BASE-T/100BASE-TX, Ethernet RJ45, interface: IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
Product mounting Flush mounting
Fixing mode By 8 nuts, By 4 L brackets
Front material Stainless steel 304
Enclosure material PPT
Type of cooling Natural convection
Width 213.5 mm
Height 181 mm
Depth 59.5 mm
Net weight 1.2 kg

Environment 11

Standards IEC 61000-6-2, UL 508, IEC 61131-2
Product certifications KCC, CE, cULus, C-Tick, UKCA, UKEX
Ambient air temperature for operation 0…55 °C
Ambient air temperature for storage -20…60 °C
Relative humidity 10…90 % without condensation
Operating altitude < 2000 m
IP degree of protection IP20 (rear panel) conforming to IEC 60529, IP66K (front panel) conforming to IEC 60529, IP66K (front panel) conforming to DIN 40050-9
NEMA degree of protection NEMA 4X front panel (indoor use)
Shock resistance 147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
Vibration resistance 3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2
Resistance to electrostatic discharge 6 kV contact discharge conforming to IEC 61000-4-2 level 3
Show all 70 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number HMIGTO2315
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.500 cm
Package 1 Width 27.000 cm
Package 1 Length 30.500 cm
Package 1 Weight 1.823 kg
Unit Type of Package 2 S06
Number of Units in Package 2 8
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 35.416 kg
Shipping weight 1.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for HMIGTO2315

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • IEC 61000-6-2
  • UL 508
  • IEC 61131-2
Quick answers

Questions about the HMIGTO2315

What is the HS code of HMIGTO2315 for customs?

The tariff (HS) code on file for HMIGTO2315 is 852859.

Where does HMIGTO2315 ship from, and how fast?

HMIGTO2315 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
