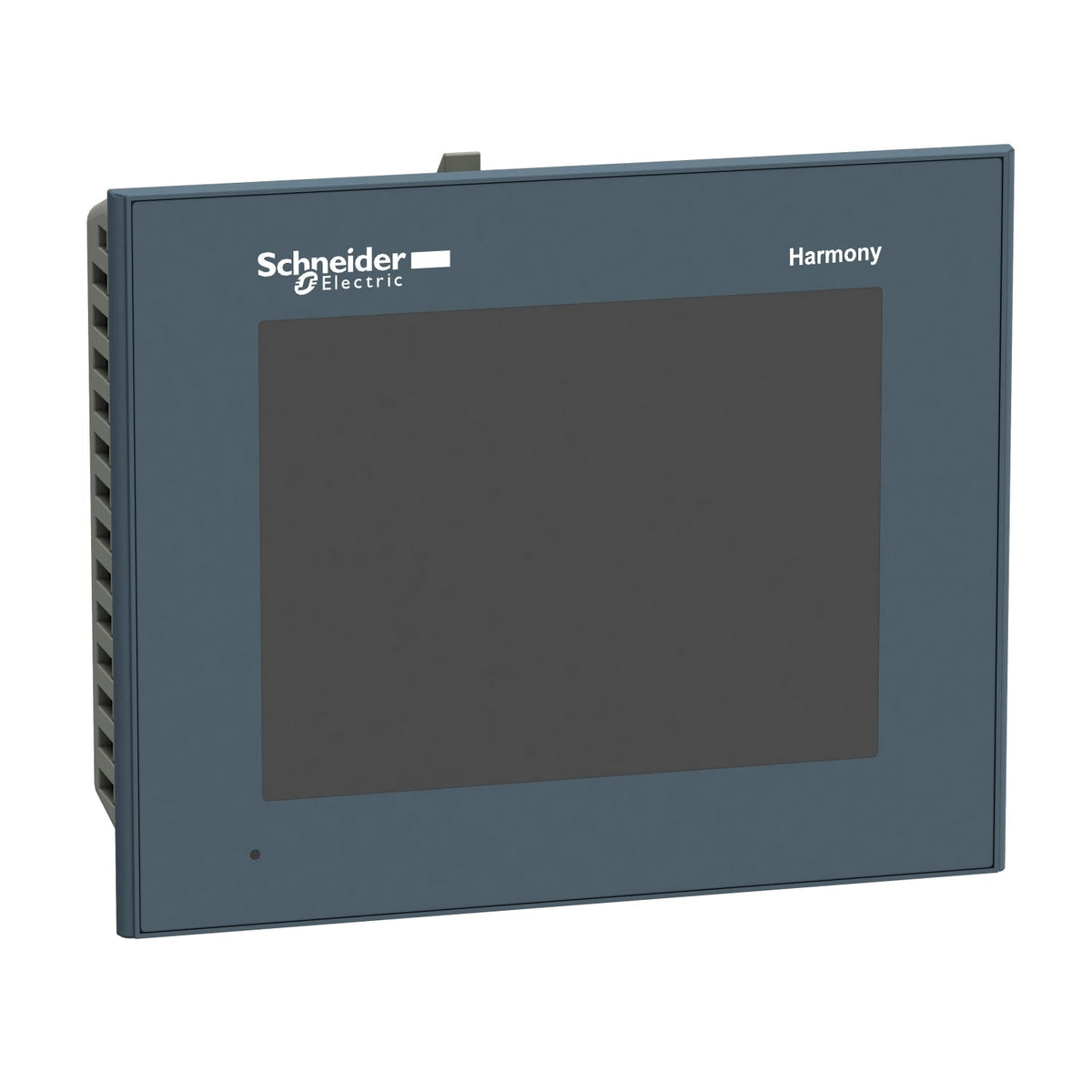

Schneider Electric HMIGTO2310 Harmony GTO 5.7-inch QVGA 320x240 Touch Panel 96MB HMI Operator Panel

The Schneider Electric HMIGTO2310 is a 5.7-inch advanced touchscreen panel in the Harmony GTO range, with a 320 x 240 (QVGA) backlit color TFT display, 65,536 colors and 96 MB flash memory. It runs on 24 V DC, supports Modbus, Uni-TE and third-party protocols for Mitsubishi, Omron, Rockwell and Siemens controllers, and has a PPT plastic front.

Technical Specifications

Certifications & Standards

• CE
• cULus
• KCC
• C-Tick
• UKCA
• UKEX
• UL 508
• IEC 61131-2
• IEC 61000-6-2

Selection Notes

The HMIGTO2310 is the 5.7-inch member of the Harmony GTO line; choose it over the smaller or larger panels in the range purely on cut-out size and viewing distance, since the communication set (Modbus, Ethernet, multi-brand third-party protocols) is identical across the family.

Applications

The multi-brand downloadable protocol list (Mitsubishi, Omron, Rockwell, Siemens) makes this panel a drop-in replacement on retrofits where the existing PLC is not from Schneider Electric. The SD/SDHC card slot (up to 32 GB) allows recipe, trend and alarm log storage directly on the panel without a PC connection, which suits unattended machine cells and remote skids.
