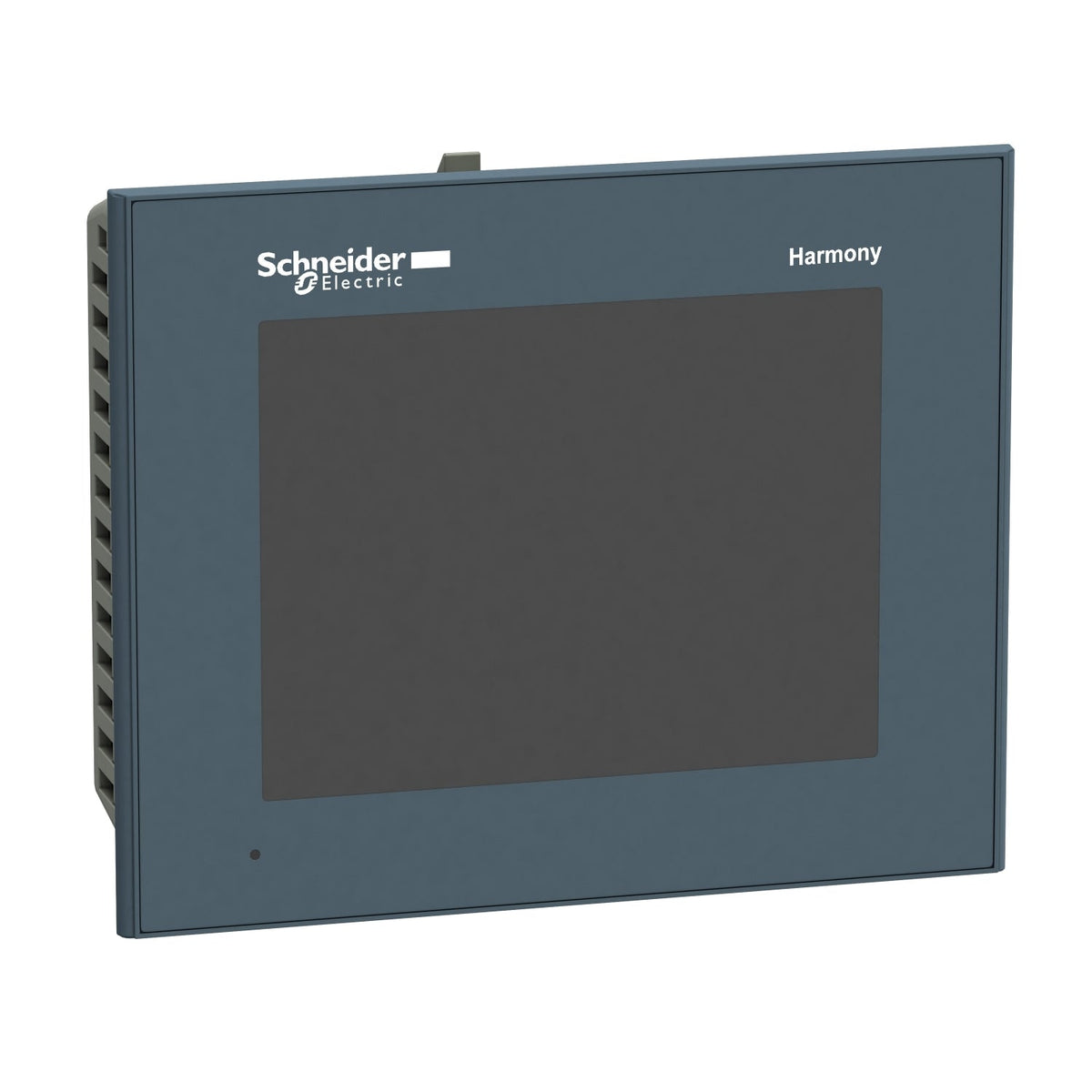

The Schneider Electric HMIGTO2300 is a 5.7-inch advanced touchscreen panel in the Harmony GTO range, with a 320 x 240 (QVGA) backlit color TFT display, 65,536 colors and 64 MB flash memory. It runs on 24 V DC, supports Modbus, Uni-TE and third-party protocols for Mitsubishi, Omron, Rockwell and Siemens controllers, and has a PPT plastic front.
The HMIGTO2300 is the 5.7-inch member of the Harmony GTO line; choose it over the smaller or larger panels in the range purely on cut-out size and viewing distance, since the communication set (Modbus, Ethernet, multi-brand third-party protocols) is identical across the family.
The multi-brand downloadable protocol list (Mitsubishi, Omron, Rockwell, Siemens) makes this panel a drop-in replacement on retrofits where the existing PLC is not from Schneider Electric. The built-in lithium battery backs up the internal RAM for up to 100 days without an external UPS, which keeps recipe and alarm data intact through short power losses.
| Range of product | Harmony GTO |
|---|---|
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 5.7 inch |
| Supply | External source |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
| Processor name | ARM926EJ-S |
| Software package | Vijeo Designer |
| Terminal type | Touchscreen display |
|---|---|
| Display type | Backlit colour TFT LCD |
| Display resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
| Brightness | 16 levels - control by touch panel, 16 levels - control by software |
| Character font | Chinese (simplified Chinese), Korean, ASCII (European characters), Japanese (ANK, Kanji), Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Maximum power consumption in W | 6.5 W when power is not supplied to external devices, 4.5 W when backlight is OFF, 5 W when backlight is dimmed, 10.5 W |
| Local signalling | Status LED green, steady for offline, Status LED green, steady for operating, Status LED orange, flashing for software starting up, Status LED red, steady for power supply (ON), Status LED clear, faded for power supply (OFF), COM2 LED yellow, steady for data is being transmitted, COM2 LED yellow, faded for no data transmission, SD card LED green, steady for card is inserted, SD card LED green, faded for card is not inserted or is not being accessed |
| Memory description | Flash EPROM, 64 MB |
| Data backed up | 128 kB internal RAM (SRAM) |
| Downloadable protocols | Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols |
| Integrated connection type | COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, USB 2.0 type A, USB 2.0 type mini B |
| Product mounting | Flush mounting |
| Fixing mode | By 4 screw clamps |
| Front material | PPT |
| Enclosure material | PPT |
| Type of cooling | Natural convection |
| Width | 169.5 mm |
| Height | 137 mm |
| Depth | 59.5 mm |
| Net weight | 0.8 kg |
| Standards | IEC 61000-6-2, UL 508, IEC 61131-2 |
|---|---|
| Product certifications | KCC, CE, cULus, C-Tick, UKCA, UKEX |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | < 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2 |
| Vibration resistance | 3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 6 kV contact discharge conforming to IEC 61000-4-2 level 3 |
| Part number | HMIGTO2300 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.500 cm |
| Package 1 Width | 18.500 cm |
| Package 1 Length | 24.000 cm |
| Package 1 Weight | 1.063 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.100 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 93.657 kg |
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
